Brake Disc
Brake Disc 1 Brake Disc 2 Brake Disc 3
Braking System

Brake Disc

Part No. BG3845 · SKU BG3845-DELPHI
Front Axle
₱14,400.00
In stock — available to order
Genuine & OEM parts Nationwide delivery Easy returns

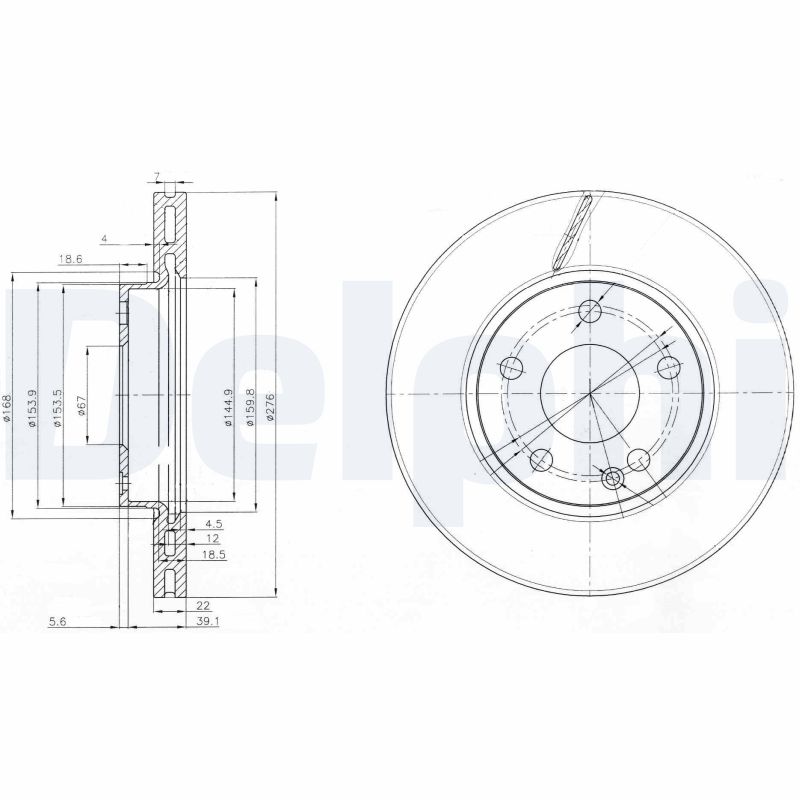

Specifications

Brake Disc Thickness (mm)22
Brake Disc Type Vented
Centering Diameter (mm)67
Height (mm)44.6
Minimum thickness (mm)19.4
Number of Holes 5
Outer Diameter (mm)276
Test Mark E1 90R-02C0277/1197
Brake Disc Thickness [mm] 22, Brake Disc Type Vented, Centering Diameter [mm] 67, Height [mm] 44,6, Minimum thickness [mm] 19,4, Number of Holes 5, Outer Diameter [mm] 276, Test Mark E1 90R-02C0277/1197
Fits: MERCEDES-BENZ

Supplier Cross-References

MERCEDES-BENZ1694210812 DELPHIBG3845 ZIMMERMANN400364300 FERODODDF1220 ATE24012202321 HELLA PAGID355111051

Interchangeable Part Numbers

A.B.S.17646 AP 24851E AP24851E APECDSK2258 BENDIX562312B Brake ENGINEERINGDI956444 BREMBO09.8680.10 BREMBO09.8680.11 BREMBO09.8680.14 COMLINEADC1642V FEBI BILSTEIN28635 FREMAXBD-0111 fri.tech.DF247 FTEBS5440 GIRLING6043931 HP (ZEBRA)58268 JURATEKMER153 LEMFÖRDER30850 LEMFÖRDER 3085001 LEMFÖRDER3085001 MAGNETI MARELLI351286220500 MEYLE 015 5212089/PD MEYLE0155212089PD MEYLE 015 5212089 MEYLE0155212089 MGAD1497 MINTEXMDC1752 NationalNBD1399 NK203372 OPTIMALBS-7808 PAGID54319 PILENGAV914 QUINTON HAZELLBDC5440 QUINTON HAZELLBDC5440P ROADHOUSE6675.10 sbs1815203372 TEXTAR 982001319 TEXTAR982001319 TRISCAN 812023170 TRISCAN812023170 TRWDF4393 VALEO186799 WOKINGP6675.10

OE Numbers — MERCEDES-BENZ 169 421

0112 0812

OE Numbers — MERCEDES-BENZ

1694210112 A1694210112 A1694210812
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ A-CLASS (W169) A 200 CDI (169.308, 169.008) 2004 – 2012 1991 100 136
MERCEDES-BENZ A-CLASS (W169) A 170 (169.032, 169.332) 2004 – 2012 1699 85 116
MERCEDES-BENZ A-CLASS (W169) A 150 (169.031, 169.331) 2004 – 2012 1498 70 95
MERCEDES-BENZ A-CLASS (W169) A 200 (169.033, 169.333) 2004 – 2012 2034 100 136
MERCEDES-BENZ A-CLASS (W169) A 160 CDI (169.006, 169.306) 2004 – 2012 1991 60 82
MERCEDES-BENZ A-CLASS (W169) A 180 CDI (169.007, 169.307) 2004 – 2012 1991 80 109
MERCEDES-BENZ A-CLASS (W169) A 200 CDI (169.008, 169.308) 2004 – 2012 1991 103 140
MERCEDES-BENZ A-CLASS (W169) E-CELL (169.090) 2004 – 2012 — 50 68
MERCEDES-BENZ A-CLASS (W169) A 180 (169.032, 169.332) 2004 – 2012 1699 85 116
MERCEDES-BENZ A-CLASS (W169) A 200 TURBO (169.034, 169.334) 2004 – 2012 2034 142 193
MERCEDES-BENZ A-CLASS (W169) A 160 (169.031, 169.331) 2004 – 2012 1498 70 95
MERCEDES-BENZ B-CLASS Sports Tourer (W245) B 200 2005 – 2011 2034 155 211
MERCEDES-BENZ B-CLASS Sports Tourer (W245) B 200 CDI (245.208) 2005 – 2011 1991 100 136
MERCEDES-BENZ B-CLASS Sports Tourer (W245) F-CELL (242.890) 2005 – 2011 — 100 136
MERCEDES-BENZ B-CLASS Sports Tourer (W245) B 180 (245.232) 2005 – 2011 1699 85 116
MERCEDES-BENZ B-CLASS Sports Tourer (W245) B 160 (245.231) 2005 – 2011 1498 70 95
MERCEDES-BENZ B-CLASS Sports Tourer (W245) B 180 NGT (245.233) 2005 – 2011 2034 85 116
MERCEDES-BENZ B-CLASS Sports Tourer (W245) B 170 NGT (245.233) 2005 – 2011 2034 85 116
MERCEDES-BENZ B-CLASS Sports Tourer (W245) B 150 (245.231) 2005 – 2011 1498 70 95
MERCEDES-BENZ B-CLASS Sports Tourer (W245) B 200 TURBO (245.234) 2005 – 2011 2034 142 193
MERCEDES-BENZ B-CLASS Sports Tourer (W245) B 200 (245.233) 2005 – 2011 2034 100 136
MERCEDES-BENZ B-CLASS Sports Tourer (W245) B 170 (245.232) 2005 – 2011 1699 85 116
MERCEDES-BENZ B-CLASS Sports Tourer (W245) B 200 CDI (245.208) 2005 – 2011 1991 103 140
MERCEDES-BENZ B-CLASS Sports Tourer (W245) B 180 CDI (245.207) 2005 – 2011 1991 80 109
