Braking System

Brake Disc

Name: Brake Disc
Brand: DELPHI
SKU: BG3948-DELPHI
Price: 12000.00 PHP
Availability: InStock

Part No. BG3948 · SKU BG3948-DELPHI

Rear Axle

₱12,000.00

In stock — available to order

Genuine & OEM parts Nationwide delivery Easy returns

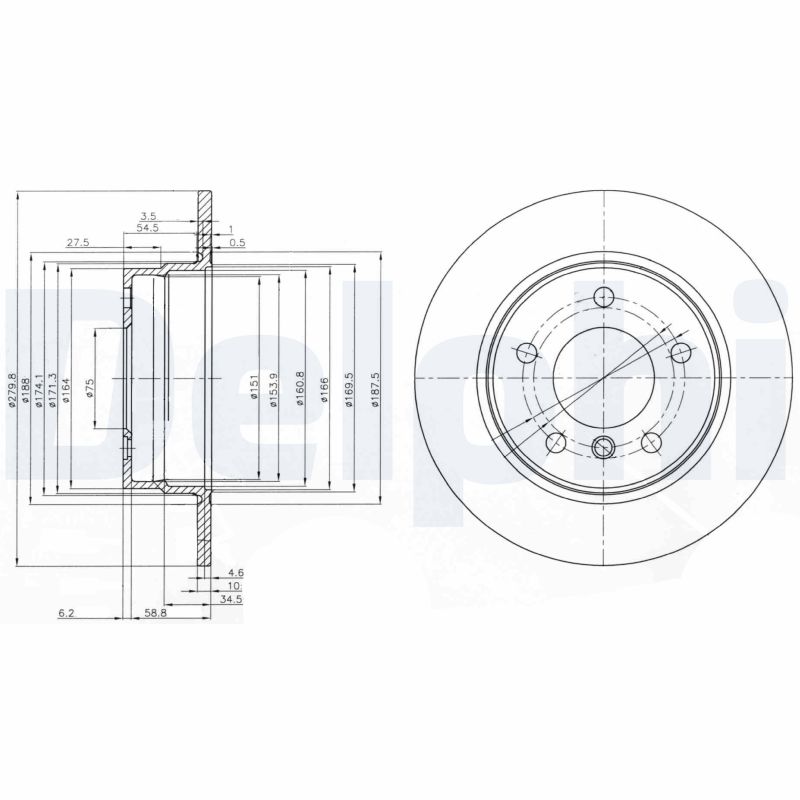

Specifications

Brake Disc Thickness (mm)	10
Brake Disc Type solid
Centering Diameter (mm)	75
Height (mm)	65
Minimum thickness (mm)	8.4
Number of Holes 5
Outer Diameter (mm)	280
Surface Oiled

Brake Disc Thickness [mm] 10, Brake Disc Type solid, Centering Diameter [mm] 75, Height [mm] 65, Minimum thickness [mm] 8,4, Number of Holes 5, Outer Diameter [mm] 280, Surface Oiled
Fits: BMW

Supplier Cross-References

BMW / MINI34216855001 DELPHIBG3948 ZIMMERMANN150342500 FERODODDF1303 ATE24011003141 HELLA PAGID355111251

Interchangeable Part Numbers

A.B.S.17602 ALFA DR7012 ALFADR7012 APECDSK2298 BENDIX562259B BOSCH0 986 479 217 Brake ENGINEERINGDI956485 BREMBO08.9787.10 BREMBO08.9787.11 BREMBORD.160.000 COMLINEADC1731 FEBI BILSTEIN26134 FREMAXBD-4647 fri.tech.DF1094 FTEBS5434 GIRLING6044484 HP (ZEBRA)58283 JURATEKBMW113 MAGNETI MARELLI351068050500 MEYLE315 523 3063/PD MEYLE315 523 3063 MGAD1582 MINTEXMDC1731 MOTAQUIPVBD1146 NAPAPBD8359 NationalNBD1360 NationalNBD1361 NK201557 OPTIMALBS-7574 PAGID54329 QUINTON HAZELLBDC5434 QUINTON HAZELLBDC5434P sbs1815201557 TEXTAR98200 1329 0 1 TEXTAR98200 1329 TRWDF4448 TRWDF4448S VAICOV20-80059

OE Numbers — BMW

3421 6764 647

Make	Model	Type / Engine	Years	CC	kW	HP
BMW	1 (E81)	120 d	2006 – 2012	1995	120	163
BMW	1 (E81)	116 d	2006 – 2012	1995	66	90
BMW	1 (E81)	120 d	2006 – 2012	1995	145	197
BMW	1 (E81)	118 i	2006 – 2012	1995	95	129
BMW	1 (E81)	116 i	2006 – 2012	1596	85	115
BMW	1 (E81)	118 i	2006 – 2012	1995	100	136
BMW	1 (E81)	120 i	2006 – 2012	1995	120	163
BMW	1 (E81)	118 d	2006 – 2012	1995	100	136
BMW	1 (E81)	130 i	2006 – 2012	2996	190	258
BMW	1 (E81)	116 d	2006 – 2012	1995	85	116
BMW	1 (E81)	120 i	2006 – 2012	1995	115	156
BMW	1 (E81)	116 i	2006 – 2012	1599	90	122
BMW	1 (E81)	123 d	2006 – 2012	1995	150	204
BMW	1 (E81)	120 d	2006 – 2012	1995	130	177
BMW	1 (E81)	118 d	2006 – 2012	1995	105	143
BMW	1 (E81)	120 i	2006 – 2012	1995	125	170
BMW	1 (E81)	116 i	2006 – 2012	1995	90	122
BMW	1 (E81)	118 i	2006 – 2012	1995	105	143
BMW	1 (E81)	130 i	2006 – 2012	2996	195	265
BMW	1 (E87)	118 d	2003 – 2013	1995	100	136
BMW	1 (E87)	118 d	2003 – 2013	1995	105	143
BMW	1 (E87)	120 d	2003 – 2013	1995	120	163
BMW	1 (E87)	120 d	2003 – 2013	1995	130	177
BMW	1 (E87)	123 d	2003 – 2013	1995	150	204
BMW	1 (E87)	120 d	2003 – 2013	1995	125	170
BMW	1 (E87)	116 d	2003 – 2013	1995	66	90
BMW	1 (E87)	118 i	2003 – 2013	1995	125	170
BMW	1 (E87)	120 d	2003 – 2013	1995	110	150
BMW	1 (E87)	120 d	2003 – 2013	1995	115	156
BMW	1 (E87)	118 d	2003 – 2013	1995	90	122
BMW	1 (E87)	116 d	2003 – 2013	1995	85	116
BMW	1 (E87)	130 i	2003 – 2013	2996	195	265
BMW	1 (E87)	130 i	2003 – 2013	2996	190	258
BMW	1 (E87)	120 i	2003 – 2013	1995	125	170
BMW	1 (E87)	120 i	2003 – 2013	1995	120	163
BMW	1 (E87)	120 i	2003 – 2013	1995	115	156
BMW	1 (E87)	120 i	2003 – 2013	1995	110	150
BMW	1 (E87)	118 i	2003 – 2013	1995	105	143
BMW	1 (E87)	118 i	2003 – 2013	1995	100	136
BMW	1 (E87)	118 i	2003 – 2013	1995	95	129
BMW	1 (E87)	116 i	2003 – 2013	1995	90	122
BMW	1 (E87)	116 i	2003 – 2013	1599	90	122
BMW	1 (E87)	116 i	2003 – 2013	1596	85	115
