Brake Disc
Brake Disc 1 Brake Disc 2 Brake Disc 3
Braking System

Brake Disc

Part No. BG3954 · SKU BG3954-DELPHI
Rear Axle
₱12,400.00
In stock — available to order
Genuine & OEM parts Nationwide delivery Easy returns

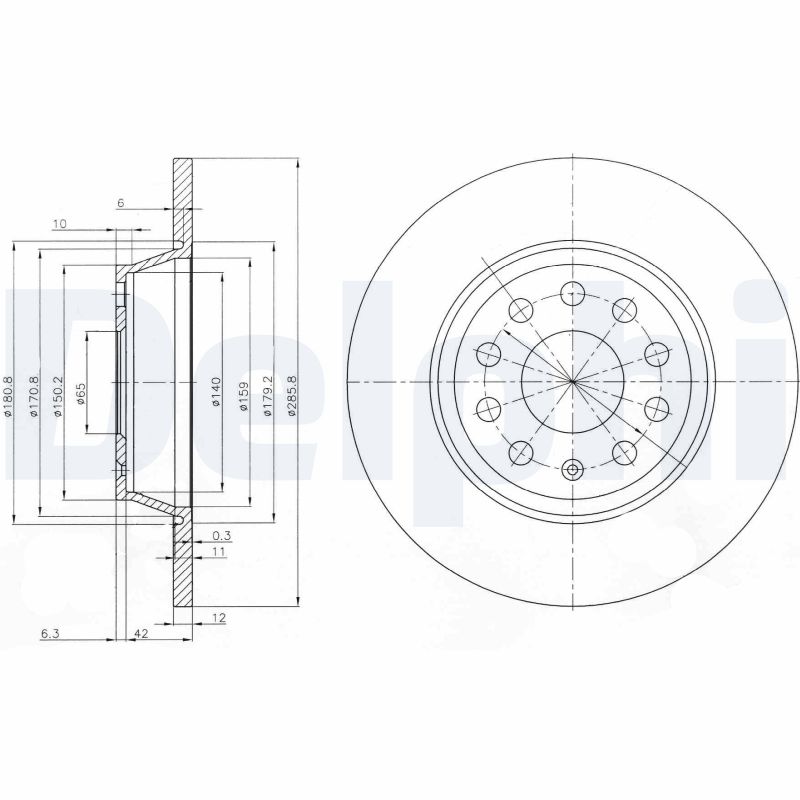

Specifications

Brake Disc Thickness (mm)12
Brake Disc Type solid
Centering Diameter (mm)65
Height (mm)48.2
Machining Untreated
Minimum thickness (mm)10
Number of Holes 5
Outer Diameter (mm)286
Test Mark E1 90R-02C0250/1775
Brake Disc Thickness [mm] 12, Brake Disc Type solid, Centering Diameter [mm] 65, Height [mm] 48,2, Machining Untreated, Minimum thickness [mm] 10, Number of Holes 5, Outer Diameter [mm] 286, Test Mark E1 90R-02C0250/1775
Fits: AUDI, SEAT, SKODA, VW

Supplier Cross-References

VW5Q0615601G DELPHIBG3954 ZIMMERMANN100331500 FERODODDF1306 ATE24011201691 HELLA PAGID355112131

Interchangeable Part Numbers

A.B.S.17628 APECDSK2339 APECDSK2820 BARUMBAR12169 BENDIX562258B BLUE PRINTADV184307 Brake ENGINEERINGDI956477 BREMBO08.A202.10 BREMBO08.A202.11 BREMBORD.210.000 BREMBORS.210.000 CAR142.1024 CIFAM800-852 COMLINEADC1467 FEBI BILSTEIN24382 FREMAXBD-5619 fri.tech.DF1145 FTEBS5495 GRAFDF29852 HP (ZEBRA)58262 JURATEKVAG189 KAGER37-1084 MEYLE 115 5231092/PD MEYLE1155231092PD MEYLE 115 5231092 MEYLE1155231092 MGAD1606 MINTEXMDC1698 MOTAQUIPVBD1104 NationalNBD1354 NK2047116 OPTIMALBS-8038 PAGID54408 PEX14.0848 PILENGA5857 QUINTON HAZELLBDC5495 QUINTON HAZELLBDC5495P ROADHOUSE6973.00 sbs18152047116 TRWDF4558 VAICOV10-40082

OE Numbers — AUDI 1K0 615

601AD 601M

OE Numbers — AUDI

1K0615601AD 1K0615601M

OE Numbers — AUDI 5Q0 615

601G

OE Numbers — SKODA

5Q0615601Q
MakeModelType / Engine YearsCCkWHP
AUDI A3 (8P1) 2.0 TDI 2003 – 2013 1968 125 170
AUDI A3 (8P1) 1.6 TDI 2003 – 2013 1598 77 105
AUDI A3 (8P1) 1.6 TDI 2003 – 2013 1598 66 90
AUDI A3 (8P1) 1.8 TFSI quattro 2003 – 2013 1798 118 160
AUDI A3 (8P1) 2.0 TDI quattro 2003 – 2013 1968 100 136
AUDI A3 (8P1) S3 quattro 2003 – 2013 1984 188 256
AUDI A3 (8P1) 2.0 TFSI 2003 – 2013 1984 147 200
AUDI A3 (8P1) 2.0 TFSI quattro 2003 – 2013 1984 147 200
AUDI A3 (8P1) 2.0 TDI 16V quattro 2003 – 2013 1968 103 140
AUDI A3 (8P1) 1.6 E-Power 2003 – 2013 1595 75 102
AUDI A3 (8P1) 2.0 TDI quattro 2003 – 2013 1968 125 170
AUDI A3 (8P1) 1.4 TFSI 2003 – 2013 1390 92 125
AUDI A3 (8P1) S3 quattro 2003 – 2013 1984 195 265
AUDI A3 (8P1) 2.0 TDI 2003 – 2013 1968 103 140
AUDI A3 (8P1) 2.0 TDI quattro 2003 – 2013 1968 103 140
AUDI A3 (8P1) 1.8 TFSI 2003 – 2013 1798 118 160
AUDI A3 (8P1) 1.8 T 2003 – 2013 1781 110 150
AUDI A3 (8P1) 1.6 FSI 2003 – 2013 1598 85 115
AUDI A3 (8P1) 3.2 V6 quattro 2003 – 2013 3189 184 250
AUDI A3 (8P1) 2.0 TDI 2003 – 2013 1968 100 136
AUDI A3 (8P1) 1.9 TDI 2003 – 2013 1896 77 105
AUDI A3 (8P1) 2.0 TDI 16V 2003 – 2013 1968 103 140
AUDI A3 (8P1) 1.6 2003 – 2013 1595 75 102
AUDI A3 (8P1) 2.0 FSI 2003 – 2013 1984 110 150
AUDI A3 (8P1) 2.0 TDI 2003 – 2013 1968 120 163
AUDI A3 (8P1) 1.2 TSI 2003 – 2013 1197 77 105
AUDI A3 Convertible (8P7) 1.6 TDI 2008 – 2013 1598 77 105
AUDI A3 Convertible (8P7) 1.8 TFSI 2008 – 2013 1798 118 160
AUDI A3 Convertible (8P7) 2.0 TFSI 2008 – 2013 1984 147 200
AUDI A3 Convertible (8P7) 1.9 TDI 2008 – 2013 1896 77 105
AUDI A3 Convertible (8P7) 2.0 TDI 2008 – 2013 1968 103 140
AUDI A3 Convertible (8P7) 1.4 TFSI 2008 – 2013 1390 92 125
AUDI A3 Convertible (8P7) 1.2 TFSI 2008 – 2013 1197 77 105
AUDI A3 Convertible (8P7) 2.0 TDI 2008 – 2013 1968 100 136
AUDI A3 Convertible (8P7) 1.6 2008 – 2013 1595 75 102
AUDI A3 Sportback (8PA) 1.4 TFSI 2004 – 2015 1390 92 125
AUDI A3 Sportback (8PA) 1.2 TSI 2004 – 2015 1197 77 105
AUDI A3 Sportback (8PA) S3 quattro 2004 – 2015 1984 195 265
AUDI A3 Sportback (8PA) S3 quattro 2004 – 2015 1984 188 256
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 120 163
AUDI A3 Sportback (8PA) 1.8 TFSI quattro 2004 – 2015 1798 118 160
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 104 141
AUDI A3 Sportback (8PA) 1.6 TDI 2004 – 2015 1598 66 90
AUDI A3 Sportback (8PA) 1.8 FSI 2004 – 2015 1781 110 150
AUDI A3 Sportback (8PA) 1.6 TDI 2004 – 2015 1598 77 105
AUDI A3 Sportback (8PA) 2.0 TDI quattro 2004 – 2015 1968 103 140
AUDI A3 Sportback (8PA) 1.6 E-Power 2004 – 2015 1595 75 102
AUDI A3 Sportback (8PA) RS3 quattro 2004 – 2015 2480 250 340
AUDI A3 Sportback (8PA) 1.6 2004 – 2015 1595 75 102
AUDI A3 Sportback (8PA) 1.9 TDI 2004 – 2015 1896 77 105
AUDI A3 Sportback (8PA) 1.6 FSI 2004 – 2015 1598 85 115
AUDI A3 Sportback (8PA) 2.0 FSI 2004 – 2015 1984 110 150
AUDI A3 Sportback (8PA) 3.2 V6 quattro 2004 – 2015 3189 184 250
AUDI A3 Sportback (8PA) 2.0 TDI 16V 2004 – 2015 1968 103 140
AUDI A3 Sportback (8PA) 2.0 TFSI quattro 2004 – 2015 1984 147 200
AUDI A3 Sportback (8PA) 1.8 TFSI 2004 – 2015 1798 118 160
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 103 140
AUDI A3 Sportback (8PA) 2.0 TDI quattro 2004 – 2015 1968 125 170
AUDI A3 Sportback (8PA) 2.0 TDI 16V quattro 2004 – 2015 1968 103 140
AUDI A3 Sportback (8PA) 2.0 TFSI 2004 – 2015 1984 147 200
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 100 136
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 125 170
AUDI Q3 (8UB, 8UG) 2.0 TDI quattro 2011 – 2020 1968 110 150
AUDI Q3 (8UB, 8UG) 1.4 TFSi Flex 2011 – 2020 1395 110 150
AUDI Q3 (8UB, 8UG) 2.0 TDI quattro 2011 – 2020 1968 103 140
AUDI Q3 (8UB, 8UG) 1.4 TFSI 2011 – 2020 1395 92 125
AUDI Q3 (8UB, 8UG) RS performance 2.5 quattro 2011 – 2020 2480 270 367
AUDI Q3 (8UB, 8UG) 2.0 TDI 2011 – 2020 1968 135 184
AUDI Q3 (8UB, 8UG) 2.0 TFSI 2011 – 2020 1984 132 180
AUDI Q3 (8UB, 8UG) 2.0 TDI 2011 – 2020 1968 88 120
AUDI Q3 (8UB, 8UG) RS 2.5 quattro 2011 – 2020 2480 250 340
AUDI Q3 (8UB, 8UG) 2.0 TFSI quattro 2011 – 2020 1984 132 180
AUDI Q3 (8UB, 8UG) 2.0 TFSI quattro 2011 – 2020 1984 162 220
AUDI Q3 (8UB, 8UG) 2.0 TDI quattro 2011 – 2020 1968 135 184
AUDI Q3 (8UB, 8UG) 2.0 TDI quattro 2011 – 2020 1968 120 163
AUDI Q3 (8UB, 8UG) 2.0 TDI 2011 – 2020 1968 110 150
AUDI Q3 (8UB, 8UG) 2.0 TFSI quattro 2011 – 2020 1984 147 200
AUDI Q3 (8UB, 8UG) 2.0 TFSI 2011 – 2020 1984 147 200
AUDI Q3 (8UB, 8UG) 1.4 TSI 2011 – 2020 1395 110 150
AUDI Q3 (8UB, 8UG) RS 2.5 quattro 2011 – 2020 2480 228 310
AUDI Q3 (8UB, 8UG) 2.0 TDI 2011 – 2020 1968 130 177
AUDI Q3 (8UB, 8UG) 2.0 TDI quattro 2011 – 2020 1968 130 177
AUDI Q3 (8UB, 8UG) 2.0 TFSI quattro 2011 – 2020 1984 155 211
AUDI Q3 (8UB, 8UG) 2.0 TDI 2011 – 2020 1968 103 140
AUDI Q3 (8UB, 8UG) 2.0 TFSI quattro 2011 – 2020 1984 125 170
AUDI Q3 (8UB, 8UG) 2.0 TDI 2011 – 2020 1968 100 136
