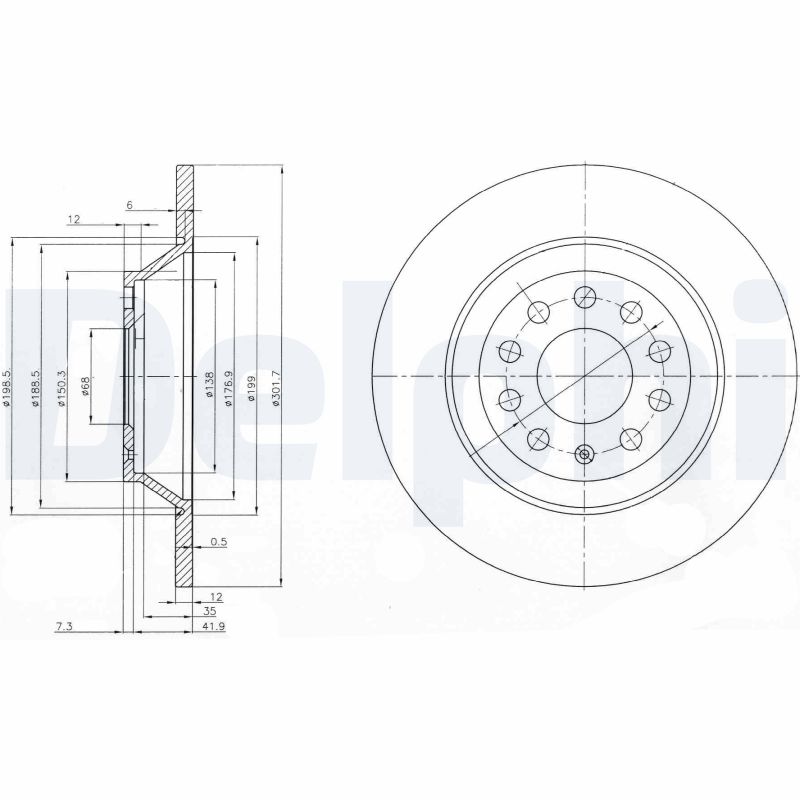

Specifications
| Brake Disc Thickness (mm) | 12 |
| Brake Disc Type solid | |
| Centering Diameter (mm) | 68 |
| Height (mm) | 49.2 |
| Minimum thickness (mm) | 10 |
| Number of Holes 5 | |
| Outer Diameter (mm) | 302 |
| Test Mark E1 90R-02C0100/1556 | |
Brake Disc Thickness [mm] 12, Brake Disc Type solid, Centering Diameter [mm] 68, Height [mm] 49,2, Minimum thickness [mm] 10, Number of Holes 5, Outer Diameter [mm] 302, Test Mark E1 90R-02C0100/1556
