Brake Disc

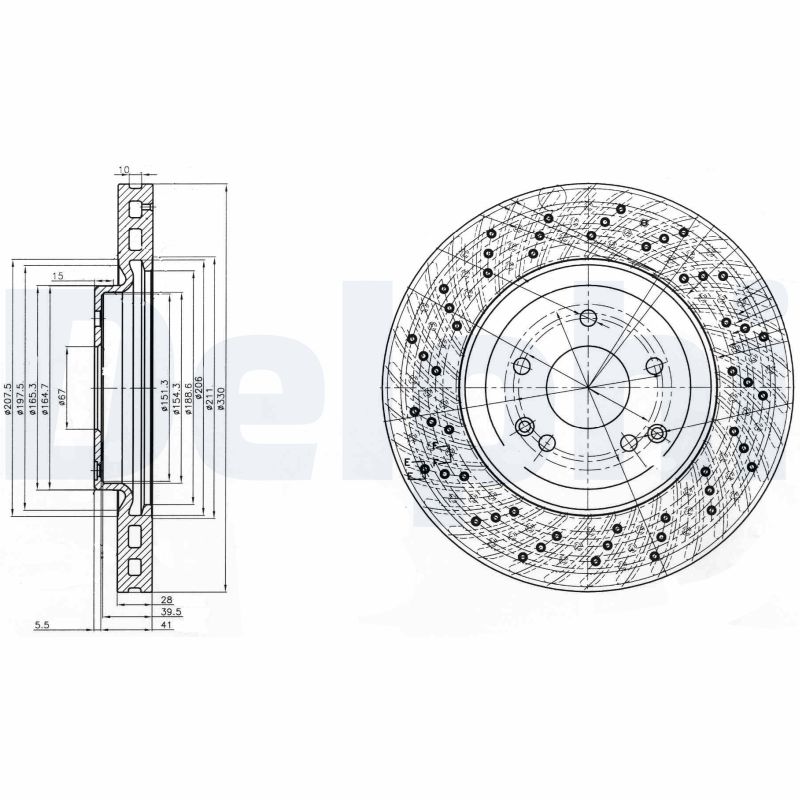

Brake Disc 1 Brake Disc 2 Brake Disc 3
Braking System

Brake Disc

Part No. BG3985 · SKU BG3985-DELPHI
Front Axle
₱39,400.00
In stock — available to order
Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Brake Disc Thickness (mm)28
Brake Disc Type Vented
Centering Diameter (mm)67
Height (mm)46.5
Minimum thickness (mm)26
Number of Holes 5
Outer Diameter (mm)330
Test Mark E1 90R-02C0555/1561
Brake Disc Thickness [mm] 28, Brake Disc Type Vented, Centering Diameter [mm] 67, Height [mm] 46,5, Minimum thickness [mm] 26, Number of Holes 5, Outer Diameter [mm] 330, Test Mark E1 90R-02C0555/1561
Fits: MERCEDES-BENZ

Supplier Cross-References

DELPHIBG3985 TEXTAR92119805 FERODODDF1582C ATE24012801771 HELLA PAGID8DD355109411 JURID562354J

Interchangeable Part Numbers

A.B.S.17562 APECDSK2453 ATE-CN24-0128-0177-1-02 ATE-CN428177 Brake ENGINEERINGDI956283 Brake ENGINEERINGDI956283S BREMBO09.A448.20 BREMBO09.A448.21 CAR142.1101 FEBI BILSTEIN26107 FERODODDF1582 fri.tech.DF1039 HP (ZEBRA)58236 LEMFÖRDER30845 LEMFÖRDER 3084501 LEMFÖRDER3084501 LPRM2006V MGAD1792 MINTEXMDC2301 OPTIMALBS-7864 PAGID54198 TEXTAR92119800 TEXTAR 982001198 TEXTAR982001198 TRWDF6153S ZIMMERMANN400.3624.00

OE Numbers — MERCEDES-BENZ 203 421

1312

OE Numbers — MERCEDES-BENZ

2034211312 A2034211312
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ C-CLASS (W203) C 55 AMG 2000 – 2007 5439 270 367
MERCEDES-BENZ C-CLASS (W203) C 220 CDI (203.006) 2000 – 2007 2148 100 136
MERCEDES-BENZ C-CLASS (W203) C 270 CDI (203.016) 2000 – 2007 2685 120 163
MERCEDES-BENZ C-CLASS (W203) C 55 AMG 2000 – 2007 5439 260 354
MERCEDES-BENZ C-CLASS (W203) C 320 FLEX 2000 – 2007 3199 160 218
MERCEDES-BENZ C-CLASS (W203) C 180 (203.035) 2000 – 2007 1998 95 129
MERCEDES-BENZ C-CLASS (W203) C 200 Kompressor (203.045) 2000 – 2007 1998 120 163
MERCEDES-BENZ C-CLASS (W203) C 240 (203.061) 2000 – 2007 2597 125 170
MERCEDES-BENZ C-CLASS (W203) C 320 (203.064) 2000 – 2007 3199 160 218
MERCEDES-BENZ C-CLASS (W203) C 200 CDI (203.004) 2000 – 2007 2148 85 116
MERCEDES-BENZ C-CLASS (W203) C 270 CDI (203.016) 2000 – 2007 2685 125 170
MERCEDES-BENZ C-CLASS (W203) C 220 CDI (203.006, 203.008) 2000 – 2007 2148 105 143
MERCEDES-BENZ C-CLASS (W203) C 32 AMG Kompressor (203.065) 2000 – 2007 3199 260 354
MERCEDES-BENZ C-CLASS (W203) C 200 CDI (203.004) 2000 – 2007 2148 75 102
MERCEDES-BENZ C-CLASS (W203) C 180 Kompressor (203.046) 2000 – 2007 1796 105 143
MERCEDES-BENZ C-CLASS (W203) C 200 Kompressor (203.042) 2000 – 2007 1796 120 163
MERCEDES-BENZ C-CLASS (W203) C 240 4-matic (203.081) 2000 – 2007 2597 125 170
MERCEDES-BENZ C-CLASS (W203) C 320 4-matic (203.084) 2000 – 2007 3199 160 218
MERCEDES-BENZ C-CLASS (W203) C 30 CDI AMG (203.018) 2000 – 2007 2950 170 231
MERCEDES-BENZ C-CLASS (W203) C 200 CDI (203.007) 2000 – 2007 2148 90 122
MERCEDES-BENZ C-CLASS (W203) C 200 CGI Kompressor (203.043) 2000 – 2007 1796 125 170
MERCEDES-BENZ C-CLASS (W203) C 230 Kompressor (203.040) 2000 – 2007 1796 141 192
MERCEDES-BENZ C-CLASS (W203) C 220 CDI (203.008) 2000 – 2007 2148 110 150
MERCEDES-BENZ C-CLASS (W203) C 55 AMG (203.076) 2000 – 2007 5439 270 367
MERCEDES-BENZ C-CLASS (W203) C 320 CDI (203.020) 2000 – 2007 2987 165 224
MERCEDES-BENZ C-CLASS (W203) C 280 (203.054) 2000 – 2007 2996 170 231
MERCEDES-BENZ C-CLASS (W203) C 280 4-matic (203.092) 2000 – 2007 2996 170 231
MERCEDES-BENZ C-CLASS (W203) C 350 (203.056) 2000 – 2007 3498 200 272
MERCEDES-BENZ C-CLASS (W203) C 350 4-matic (203.087) 2000 – 2007 3498 200 272
MERCEDES-BENZ C-CLASS (W203) C 230 (203.052) 2000 – 2007 2496 150 204
MERCEDES-BENZ C-CLASS (W203) 3.5 (203.056) 2000 – 2007 3498 170 231
MERCEDES-BENZ C-CLASS Coupe (CL203) C 180 (203.735) 2001 – 2011 1998 95 129
MERCEDES-BENZ C-CLASS Coupe (CL203) C 200 Kompressor (203.745) 2001 – 2011 1998 120 163
MERCEDES-BENZ C-CLASS Coupe (CL203) C 220 CDI (203.706) 2001 – 2011 2148 105 143
MERCEDES-BENZ C-CLASS Coupe (CL203) C 230 Kompressor (203.747) 2001 – 2011 2295 145 197
MERCEDES-BENZ C-CLASS Coupe (CL203) C 180 Kompressor (203.746) 2001 – 2011 1796 105 143
MERCEDES-BENZ C-CLASS Coupe (CL203) C 200 Kompressor (203.742) 2001 – 2011 1796 120 163
MERCEDES-BENZ C-CLASS Coupe (CL203) C 230 Kompressor (203.740) 2001 – 2011 1796 141 192
MERCEDES-BENZ C-CLASS Coupe (CL203) C 32 AMG Kompressor (203.765) 2001 – 2011 3199 260 354
MERCEDES-BENZ C-CLASS Coupe (CL203) C 30 CDI AMG (203.718) 2001 – 2011 2950 170 231
MERCEDES-BENZ C-CLASS Coupe (CL203) C 320 (203.764) 2001 – 2011 3199 160 218
MERCEDES-BENZ C-CLASS Coupe (CL203) C 200 CGI Kompressor (203.743) 2001 – 2011 1796 125 170
MERCEDES-BENZ C-CLASS Coupe (CL203) C 200 CDI (203.707) 2001 – 2011 2148 90 122
MERCEDES-BENZ C-CLASS Coupe (CL203) C 220 CDI (203.708) 2001 – 2011 2148 110 150
MERCEDES-BENZ C-CLASS Coupe (CL203) C 350 (203.756) 2001 – 2011 3498 200 272
MERCEDES-BENZ C-CLASS Coupe (CL203) C 230 (203.752) 2001 – 2011 2496 150 204
MERCEDES-BENZ C-CLASS Coupe (CL203) C 160 Kompressor (203.730) 2001 – 2011 1796 90 122
MERCEDES-BENZ C-CLASS Coupe (CL203) C 220 2001 – 2011 1796 120 163
MERCEDES-BENZ C-CLASS Coupe (CL203) C 220 CDI 2001 – 2011 2148 100 136
MERCEDES-BENZ C-CLASS Coupe (CL203) C 230 Kompressor (203.747) 2001 – 2011 2295 143 194
MERCEDES-BENZ C-CLASS T-Model (S203) C 270 CDI (203.216) 2001 – 2007 2685 120 163
MERCEDES-BENZ C-CLASS T-Model (S203) C 220 CDI (203.208) 2001 – 2007 2148 100 136
MERCEDES-BENZ C-CLASS T-Model (S203) C 200 Kompressor (203.245) 2001 – 2007 1998 120 163
MERCEDES-BENZ C-CLASS T-Model (S203) C 320 (203.264) 2001 – 2007 3199 160 218
MERCEDES-BENZ C-CLASS T-Model (S203) C 200 CDI (203.204) 2001 – 2007 2148 85 116
MERCEDES-BENZ C-CLASS T-Model (S203) C 220 CDI (203.206, 203.208) 2001 – 2007 2148 105 143
MERCEDES-BENZ C-CLASS T-Model (S203) C 270 CDI (203.216) 2001 – 2007 2685 125 170
MERCEDES-BENZ C-CLASS T-Model (S203) C 180 (203.235) 2001 – 2007 1998 95 129
MERCEDES-BENZ C-CLASS T-Model (S203) C 240 (203.261) 2001 – 2007 2597 125 170
MERCEDES-BENZ C-CLASS T-Model (S203) C 32 AMG Kompressor (203.265) 2001 – 2007 3199 260 354
MERCEDES-BENZ C-CLASS T-Model (S203) C 200 CDI (203.204) 2001 – 2007 2148 75 102
MERCEDES-BENZ C-CLASS T-Model (S203) C 180 Kompressor (203.246) 2001 – 2007 1796 105 143
MERCEDES-BENZ C-CLASS T-Model (S203) C 200 Kompressor (203.242) 2001 – 2007 1796 120 163
MERCEDES-BENZ C-CLASS T-Model (S203) C 240 4-matic (203.281) 2001 – 2007 2597 125 170
MERCEDES-BENZ C-CLASS T-Model (S203) C 320 4-matic (203.284) 2001 – 2007 3199 160 218
MERCEDES-BENZ C-CLASS T-Model (S203) C 30 CDI AMG (203.218) 2001 – 2007 2950 170 231
MERCEDES-BENZ C-CLASS T-Model (S203) C 200 CGI Kompressor (203.243) 2001 – 2007 1796 125 170
MERCEDES-BENZ C-CLASS T-Model (S203) C 200 CDI (203.207) 2001 – 2007 2148 90 122
MERCEDES-BENZ C-CLASS T-Model (S203) C 230 Kompressor (203.240) 2001 – 2007 1796 141 192
MERCEDES-BENZ C-CLASS T-Model (S203) C 220 CDI (203.208) 2001 – 2007 2148 110 150
MERCEDES-BENZ C-CLASS T-Model (S203) C 55 AMG (203.276) 2001 – 2007 5439 270 367
MERCEDES-BENZ C-CLASS T-Model (S203) C 350 (203.256) 2001 – 2007 3498 200 272
MERCEDES-BENZ C-CLASS T-Model (S203) C 350 4-matic (203.287) 2001 – 2007 3498 200 272
MERCEDES-BENZ C-CLASS T-Model (S203) C 280 (203.254) 2001 – 2007 2996 170 231
MERCEDES-BENZ C-CLASS T-Model (S203) C 280 4-matic (203.292) 2001 – 2007 2996 170 231
MERCEDES-BENZ C-CLASS T-Model (S203) C 230 (203.252) 2001 – 2007 2496 150 204
MERCEDES-BENZ C-CLASS T-Model (S203) C 320 CDI (203.220) 2001 – 2007 2987 165 224
MERCEDES-BENZ CLC-CLASS (CL203) CLC 180 Kompressor (203.746) 2008 – 2011 1796 105 143
MERCEDES-BENZ CLC-CLASS (CL203) CLC 200 Kompressor (203.741) 2008 – 2011 1796 135 184
MERCEDES-BENZ CLC-CLASS (CL203) CLC 230 (203.752) 2008 – 2011 2496 150 204
MERCEDES-BENZ CLC-CLASS (CL203) CLC 200 CDI (203.707) 2008 – 2011 2148 90 122
MERCEDES-BENZ CLC-CLASS (CL203) CLC 350 (203.756) 2008 – 2011 3498 200 272
MERCEDES-BENZ CLC-CLASS (CL203) CLC 160 (203.731) 2008 – 2011 1597 95 129
MERCEDES-BENZ CLC-CLASS (CL203) CLC 250 2008 – 2011 2496 150 204
MERCEDES-BENZ CLC-CLASS (CL203) CLC 220 CDI (203.708) 2008 – 2011 2148 100 136
MERCEDES-BENZ CLC-CLASS (CL203) CLC 220 CDI (203.708) 2008 – 2011 2148 110 150
MERCEDES-BENZ CLK (C209) CLK 55 AMG (209.376) 2002 – 2010 5439 260 354
MERCEDES-BENZ CLK (C209) CLK 270 CDI (209.316) 2002 – 2010 2685 120 163
MERCEDES-BENZ CLK (C209) CLK 220 CDI (209.308) 2002 – 2010 2148 100 136
MERCEDES-BENZ CLK (C209) CLK 240 (209.361) 2002 – 2010 2597 120 163
MERCEDES-BENZ CLK (C209) CLK 500 (209.375) 2002 – 2010 4966 215 292
MERCEDES-BENZ CLK (C209) CLK 63 AMG (209.377) 2002 – 2010 6208 373 507
MERCEDES-BENZ CLK (C209) CLK 320 (209.365) 2002 – 2010 3199 160 218
MERCEDES-BENZ CLK (C209) CLK 500 (209.375) 2002 – 2010 4966 225 306
MERCEDES-BENZ CLK (C209) CLK 240 (209.361) 2002 – 2010 2597 125 170
MERCEDES-BENZ CLK (C209) CLK 200 Kompressor (209.342) 2002 – 2010 1796 120 163
MERCEDES-BENZ CLK (C209) CLK 200 CGI (209.343) 2002 – 2010 1796 125 170
MERCEDES-BENZ CLK (C209) CLK 270 CDI (209.316) 2002 – 2010 2685 125 170
MERCEDES-BENZ CLK (C209) CLK 55 AMG (209.376) 2002 – 2010 5439 270 367
MERCEDES-BENZ CLK (C209) CLK DTM AMG (209.376) 2002 – 2010 5439 428 582
MERCEDES-BENZ CLK (C209) CLK 350 (209.356) 2002 – 2010 3498 200 272
MERCEDES-BENZ CLK (C209) CLK 280 (209.354) 2002 – 2010 2996 170 231
MERCEDES-BENZ CLK (C209) CLK 220 CDI (209.308) 2002 – 2010 2148 110 150
MERCEDES-BENZ CLK (C209) CLK 320 CDI (209.320) 2002 – 2010 2987 165 224
MERCEDES-BENZ CLK (C209) CLK 63 AMG (209.377) 2002 – 2010 6208 354 481
MERCEDES-BENZ CLK (C209) CLK 500 (209.372) 2002 – 2010 5461 285 388
MERCEDES-BENZ CLK (C209) CLK 200 Kompressor (209.341) 2002 – 2010 1796 135 184
MERCEDES-BENZ CLK Convertible (A209) CLK 200 Kompressor (209.442) 2002 – 2010 1796 120 163
MERCEDES-BENZ CLK Convertible (A209) CLK 200 CGI (209.343) 2002 – 2010 1796 125 170
MERCEDES-BENZ CLK Convertible (A209) CLK 240 (209.461) 2002 – 2010 2597 125 170
MERCEDES-BENZ CLK Convertible (A209) CLK 320 (209.465) 2002 – 2010 3199 160 218
MERCEDES-BENZ CLK Convertible (A209) CLK 500 (209.475) 2002 – 2010 4966 225 306
MERCEDES-BENZ CLK Convertible (A209) CLK 55 AMG (209.476) 2002 – 2010 5439 270 367
MERCEDES-BENZ CLK Convertible (A209) CLK 350 (209.456) 2002 – 2010 3498 200 272
MERCEDES-BENZ CLK Convertible (A209) CLK 280 (209.454) 2002 – 2010 2996 170 231
MERCEDES-BENZ CLK Convertible (A209) CLK 63 AMG (209.477) 2002 – 2010 6208 354 481
MERCEDES-BENZ CLK Convertible (A209) CLK 320 CDI (209.420) 2002 – 2010 2987 165 224
MERCEDES-BENZ CLK Convertible (A209) CLK 200 Kompressor (209.441) 2002 – 2010 1796 135 184
MERCEDES-BENZ CLK Convertible (A209) CLK 500 (209.472) 2002 – 2010 5461 285 388
MERCEDES-BENZ CLK Convertible (A209) CLK 500 (204.975) 2002 – 2010 4966 215 292
MERCEDES-BENZ CLK Convertible (A209) CLK 55 AMG (209.476) 2002 – 2010 5439 260 354
MERCEDES-BENZ CLK Convertible (A209) CLK AMG DTM (209.476) 2002 – 2010 5439 428 582
MERCEDES-BENZ CLK Convertible (A209) CLK 63 AMG (209.477) 2002 – 2010 6208 354 481
MERCEDES-BENZ SLK (R171) 55 AMG (171.473) 2004 – 2011 5439 294 400
MERCEDES-BENZ SLK (R171) 300 (171.454) 2004 – 2011 2996 170 231
MERCEDES-BENZ SLK (R171) 200 Kompressor (171.445) 2004 – 2011 1796 135 184
MERCEDES-BENZ SLK (R171) 350 (171.458) 2004 – 2011 3498 224 305
MERCEDES-BENZ SLK (R171) 55 AMG (171.473) 2004 – 2011 5439 265 360
MERCEDES-BENZ SLK (R171) 200 Kompressor (171.442) 2004 – 2011 1796 120 163
MERCEDES-BENZ SLK (R171) 350 (171.456) 2004 – 2011 3498 200 272
MERCEDES-BENZ SLK (R171) 55 AMG (171.473) 2004 – 2011 5439 265 360
MERCEDES-BENZ SLK (R171) 280 (171.454) 2004 – 2011 2996 170 231
