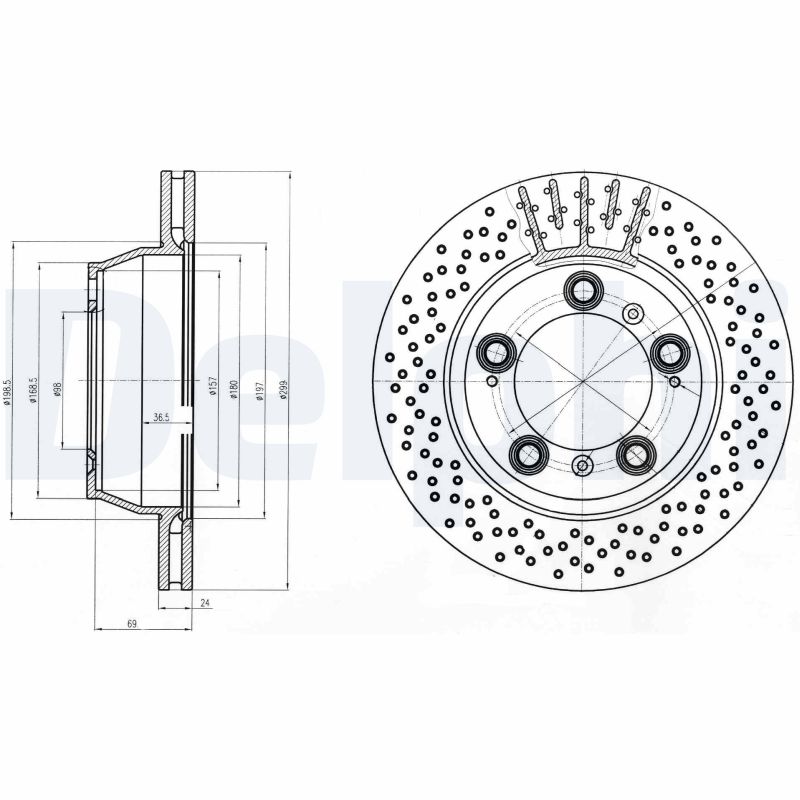

Brake Disc
Brake Disc 1 Brake Disc 2 Brake Disc 3
Braking System

Brake Disc

Part No. BG4163 · SKU BG4163-DELPHI
Rear Axle
₱15,900.00
In stock — available to order
Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Brake Disc Thickness (mm)24
Brake Disc Type Vented
Centering Diameter (mm)98
Height (mm)75
Minimum thickness (mm)22
Number of Holes 5
Outer Diameter (mm)299
Brake Disc Thickness [mm] 24, Brake Disc Type Vented, Centering Diameter [mm] 98, Height [mm] 75, Minimum thickness [mm] 22, Number of Holes 5, Outer Diameter [mm] 299
Fits: PORSCHE

Supplier Cross-References

PORSCHE99635240104 DELPHIBG4163 TEXTAR4019722233609 ZIMMERMANN460152700 ATE24012401761 HELLA PAGID355106991

Interchangeable Part Numbers

APECDSK2530 MINTEXMDC1431 TEXTAR92100100 TRWDF6337S ZIMMERMANN460.1527.20

OE Numbers — PORSCHE 996 352 401

05

OE Numbers — PORSCHE

99635240105 99635240103
MakeModelType / Engine YearsCCkWHP
PORSCHE 911 (996) 3.6 Carrera 4S 1997 – 2005 3596 254 345
PORSCHE 911 (996) 3.6 Carrera 1997 – 2005 3596 235 320
PORSCHE 911 (996) 3.6 Carrera 4 1997 – 2005 3596 235 320
PORSCHE 911 (996) 3.6 GT2 1997 – 2005 3600 340 462
PORSCHE 911 (996) 3.4 Carrera 4 1997 – 2005 3387 235 320
PORSCHE 911 (996) 3.4 Carrera 1997 – 2005 3387 235 320
PORSCHE 911 (996) 3.6 Turbo 4 1997 – 2005 3600 309 420
PORSCHE 911 (996) 3.6 GT3 1997 – 2005 3600 280 381
PORSCHE 911 (996) 3.6 Turbo 4S 1997 – 2005 3600 331 450
PORSCHE 911 (996) 3.6 Carrera S 1997 – 2005 3596 254 345
PORSCHE 911 (996) 3.6 GT3 1997 – 2005 3600 265 360
PORSCHE 911 (996) 3.4 Carrera 4 1997 – 2005 3387 221 301
PORSCHE 911 (996) 3.4 Carrera 1997 – 2005 3387 221 301
PORSCHE 911 (996) 3.6 S 1997 – 2005 3600 331 450
PORSCHE 911 (996) 3.6 GT2 1997 – 2005 3600 355 483
PORSCHE 911 (997) 3.6 Carrera 4 2004 – 2013 3596 239 325
PORSCHE 911 (997) 3.8 Carrera S 2004 – 2013 3824 280 381
PORSCHE 911 (997) 3.8 Carrera 4S 2004 – 2013 3824 280 381
PORSCHE 911 (997) 3.6 GT3 2004 – 2013 3600 305 415
PORSCHE 911 (997) 3.6 GT 2 2004 – 2013 3600 390 530
PORSCHE 911 (997) 3.6 Turbo 2004 – 2013 3600 353 480
PORSCHE 911 (997) 3.8 Carrera 4S 2004 – 2013 3824 261 355
PORSCHE 911 (997) 3.8 Carrera S / GTS 2004 – 2013 3800 300 408
PORSCHE 911 (997) 3.6 Carrera 2004 – 2013 3614 254 345
PORSCHE 911 (997) 3.8 Carrera S 2004 – 2013 3800 283 385
PORSCHE 911 (997) 3.8 Carrera 4S 2004 – 2013 3800 283 385
PORSCHE 911 (997) 3.6 Carrera 4 2004 – 2013 3614 254 345
PORSCHE 911 (997) 3.8 GT3 2004 – 2013 3797 320 435
PORSCHE 911 (997) 3.6 Carrera 2004 – 2013 3596 235 320
PORSCHE 911 (997) 3.8 GT3 RS 2004 – 2013 3797 331 450
PORSCHE 911 (997) 3.6 Turbo 2004 – 2013 3600 309 420
PORSCHE 911 (997) 3.8 Turbo 2004 – 2013 3800 373 507
PORSCHE 911 (997) 3.8 GT3 RS 2004 – 2013 3800 335 456
PORSCHE 911 (997) 3.6 Carrera 4 2004 – 2013 3596 242 329
PORSCHE 911 (997) 3.8 Carrera 4S 2004 – 2013 3824 264 359
PORSCHE 911 (997) 3.8 Turbo S 2004 – 2013 3800 395 537
PORSCHE 911 (997) 3.6 GT2 RS 2004 – 2013 3600 462 628
PORSCHE 911 (997) 3.8 Carrera S 2004 – 2013 3824 261 355
PORSCHE 911 (997) 3.8 Turbo 2004 – 2013 3800 368 500
PORSCHE 911 (997) 3.6 Carrera 2004 – 2013 3596 239 325
PORSCHE 911 (997) 3.8 Carrera 4S / 4 GTS 2004 – 2013 3800 300 408
PORSCHE 911 (997) 3.8 Turbo S 2004 – 2013 3800 390 530
PORSCHE 911 (997) 4.0 GT3 RS 2004 – 2013 3996 368 500
PORSCHE 911 (997) 3.6 GT2 RS 2004 – 2013 3600 456 620
PORSCHE 911 Convertible (996) 3.6 S 1997 – 2005 3600 331 450
PORSCHE 911 Convertible (996) 3.4 Carrera 4 1997 – 2005 3387 235 320
PORSCHE 911 Convertible (996) 3.4 Carrera 1997 – 2005 3387 221 301
PORSCHE 911 Convertible (996) 3.6 Carrera 1997 – 2005 3596 235 320
PORSCHE 911 Convertible (996) 3.6 Carrera 4 1997 – 2005 3596 235 320
PORSCHE 911 Convertible (996) 3.6 Carrera S 1997 – 2005 3596 254 345
PORSCHE 911 Convertible (996) 3.6 Carrera 4S 1997 – 2005 3596 254 345
PORSCHE 911 Convertible (996) 3.4 Carrera 1997 – 2005 3387 235 320
PORSCHE 911 Convertible (996) 3.6 Turbo 4 1997 – 2005 3600 309 420
PORSCHE 911 Convertible (996) 3.6 Turbo 4S 1997 – 2005 3600 331 450
PORSCHE 911 Convertible (996) 3.4 Carrera 4 1997 – 2005 3387 221 301
PORSCHE 911 Convertible (997) 3.8 Carrera 4S 2005 – 2013 3800 283 385
PORSCHE 911 Convertible (997) 3.6 Carrera 2005 – 2013 3596 235 320
PORSCHE 911 Convertible (997) 3.6 Carrera 2005 – 2013 3596 239 325
PORSCHE 911 Convertible (997) 3.8 Carrera GTS 2005 – 2013 3800 304 413
PORSCHE 911 Convertible (997) 3.8 Carrera 4S / 4 GTS 2005 – 2013 3800 300 408
PORSCHE 911 Convertible (997) 3.8 Carrera S / GTS 2005 – 2013 3800 300 408
PORSCHE 911 Convertible (997) 3.8 Carrera 2005 – 2013 3800 298 405
PORSCHE 911 Convertible (997) 3.8 Turbo 2005 – 2013 3800 368 500
PORSCHE 911 Convertible (997) 3.8 Carrera 4S 2005 – 2013 3824 264 359
PORSCHE 911 Convertible (997) 3.8 Turbo S 2005 – 2013 3800 395 537
PORSCHE 911 Convertible (997) 3.8 Carrera 4 GTS 2005 – 2013 3800 304 413
PORSCHE 911 Convertible (997) 3.6 Carrera 4 2005 – 2013 3614 254 345
PORSCHE 911 Convertible (997) 3.8 Turbo S 2005 – 2013 3800 390 530
PORSCHE 911 Convertible (997) 3.8 Carrera S 2005 – 2013 3824 261 355
PORSCHE 911 Convertible (997) 3.6 Carrera 4 2005 – 2013 3596 239 325
PORSCHE 911 Convertible (997) 3.8 Carrera 4S 2005 – 2013 3824 261 355
PORSCHE 911 Convertible (997) 3.8 Carrera 4S 2005 – 2013 3824 280 381
PORSCHE 911 Convertible (997) 3.8 Carrera S 2005 – 2013 3824 280 381
PORSCHE 911 Convertible (997) 3.6 Turbo 2005 – 2013 3600 353 480
PORSCHE 911 Convertible (997) 3.8 Carrera S 2005 – 2013 3800 283 385
PORSCHE 911 Convertible (997) 3.6 Carrera 2005 – 2013 3614 254 345
PORSCHE 911 Targa (996) 3.6 2001 – 2005 3596 235 320
PORSCHE 911 Targa (997) 3.8 Carrera 4S 2006 – 2012 3800 300 408
PORSCHE 911 Targa (997) 3.8 Carrera 4S 2006 – 2012 3824 280 381
PORSCHE 911 Targa (997) 3.6 Carrera 4 2006 – 2012 3614 254 345
PORSCHE 911 Targa (997) 3.8 Carrera 4S 2006 – 2012 3800 283 385
PORSCHE 911 Targa (997) 3.8 Carrera 4S 2006 – 2012 3824 261 355
PORSCHE 911 Targa (997) 3.6 Carrera 4 2006 – 2012 3596 239 325
PORSCHE CAYMAN (987) R 3.4 2005 – 2013 3436 243 330
PORSCHE CAYMAN (987) S 3.4 2005 – 2013 3436 235 320
PORSCHE CAYMAN (987) 2.7 2005 – 2013 2687 180 245
PORSCHE CAYMAN (987) 2.9 2005 – 2013 2893 195 265
PORSCHE CAYMAN (987) S 3.4 2005 – 2013 3387 217 295
PORSCHE CAYMAN (987) 2.9 2005 – 2013 2893 155 211
PORSCHE CAYMAN (987) S 3,4 Sport 2005 – 2013 3387 223 303
