Braking System

Brake Disc

Name: Brake Disc
Brand: DELPHI
SKU: BG4223-DELPHI
Price: 15700.00 PHP
Availability: InStock

Part No. BG4223 · SKU BG4223-DELPHI

Rear Axle

₱15,700.00

In stock — available to order

Genuine & OEM parts Nationwide delivery Easy returns

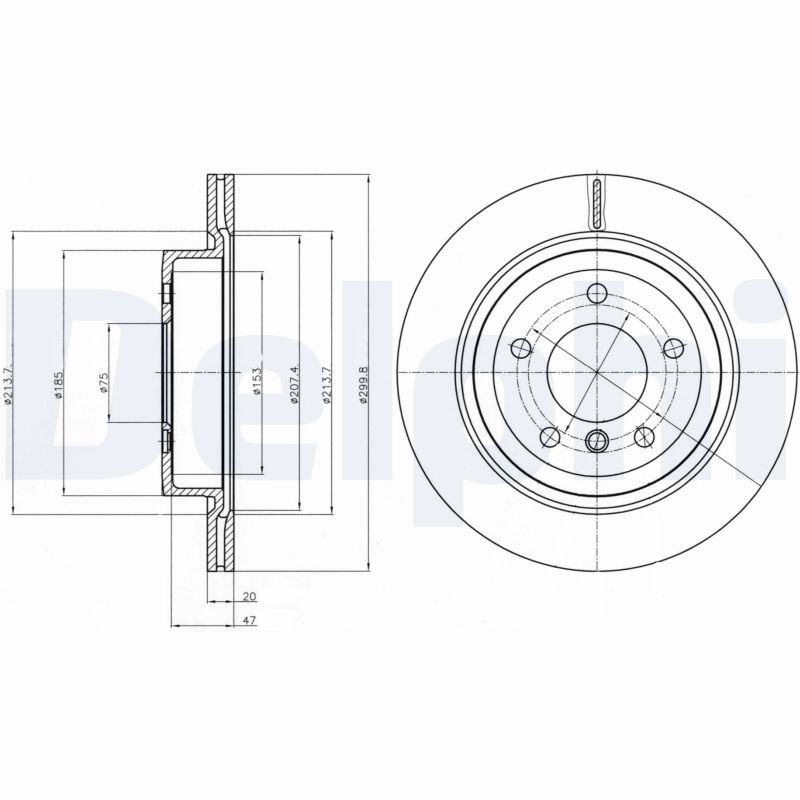

Specifications

Brake Disc Thickness (mm)	20
Brake Disc Type Vented
Centering Diameter (mm)	75
Height (mm)	54
Machining High-carbon
Minimum thickness (mm)	18.4
Number of Holes 5
Outer Diameter (mm)	300

Brake Disc Thickness [mm] 20, Brake Disc Type Vented, Centering Diameter [mm] 75, Height [mm] 54, Machining High-carbon, Minimum thickness [mm] 18,4, Number of Holes 5, Outer Diameter [mm] 300
Fits: BMW

Supplier Cross-References

DELPHIBG4223 TEXTAR92196605 ZIMMERMANN150349220 FERODODDF2034C ATE24012002261 HELLA PAGID8DD355123011

Interchangeable Part Numbers

APECDSK3049 BREMBO09.R121.11 TRWDF6329

OE Numbers — BMW

3421 6782 605

Make	Model	Type / Engine	Years	CC	kW	HP
BMW	Z4 Roadster (E89)	sDrive 20 i	2009 – 2016	1997	135	184
BMW	Z4 Roadster (E89)	sDrive 28 i	2009 – 2016	1997	180	245
BMW	Z4 Roadster (E89)	sDrive 23 i	2009 – 2016	2497	150	204
BMW	Z4 Roadster (E89)	sDrive 30 i	2009 – 2016	2996	190	258
BMW	Z4 Roadster (E89)	sDrive 35 i	2009 – 2016	2979	225	306
BMW	Z4 Roadster (E89)	sDrive 35 is	2009 – 2016	2979	250	340
BMW	Z4 Roadster (E89)	sDrive 18 i	2009 – 2016	1997	115	156
BMW	Z4 Roadster (E89)	sDrive 20 i	2009 – 2016	1997	120	163
BMW	Z4 Roadster (E89)	sDrive 30 i	2009 – 2016	2996	195	265
