Braking System

Brake Disc

Name: Brake Disc
Brand: DELPHI
SKU: BG4317-DELPHI
Price: 10400.00 PHP
Availability: InStock

Part No. BG4317 · SKU BG4317-DELPHI

Front Axle

₱10,400.00

In stock — available to order

Genuine & OEM parts Nationwide delivery Easy returns

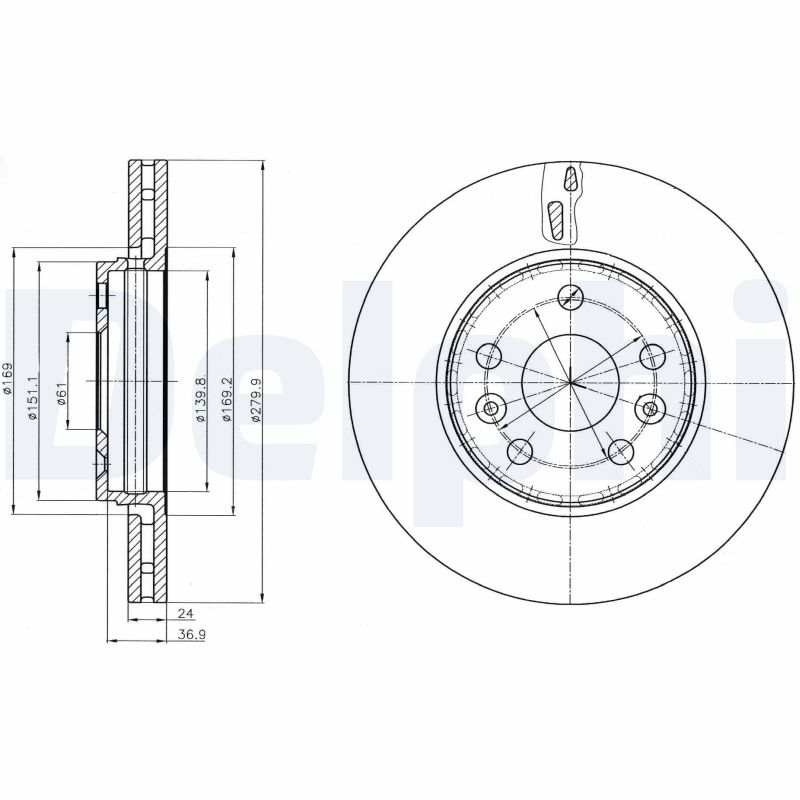

Specifications

Brake Disc Thickness (mm)	24
Brake Disc Type Vented
Centering Diameter (mm)	61
Height (mm)	43.9
Machining High-carbon
Minimum thickness (mm)	21.8
Number of Holes 5
Outer Diameter (mm)	280
Surface Oiled

Brake Disc Thickness [mm] 24, Brake Disc Type Vented, Centering Diameter [mm] 61, Height [mm] 43,9, Machining High-carbon, Minimum thickness [mm] 21,8, Number of Holes 5, Outer Diameter [mm] 280, Surface Oiled
Fits: MERCEDES-BENZ, RENAULT

Supplier Cross-References

DELPHIBG4317 TEXTAR92196800 ZIMMERMANN470243120 FERODODDF1123 ATE24012402221 HELLA PAGID8DD355116451

Interchangeable Part Numbers

APECDSK2713 BLUE PRINTADR164306 Brake ENGINEERINGDI956872 BREMBO09.A727.20 CAR142.1497 COMLINEADC1593V FERODODDF1733 JURATEKREN181 MGAD1805 MINTEXMDC2238 PAGID55024 PILENGAV798 sbs1815203974 TRWDF6110 WOKINGP61411.10

OE Numbers — MERCEDES-BENZ 415 420

0001 0701

OE Numbers — MERCEDES-BENZ

4154200001 4154200701 8201464604

OE Numbers — MERCEDES-BENZ 820 146

4604

OE Numbers — RENAULT 7701 209

839

OE Numbers — RENAULT

7701209839

Make	Model	Type / Engine	Years	CC	kW	HP
MERCEDES-BENZ	CITAN Box Body/MPV (W415)	108 CDI (415.601, 415.603)	2012 – 2021	1461	55	75
MERCEDES-BENZ	CITAN Box Body/MPV (W415)	109 CDI (415.601, 415.603, 415.605)	2012 – 2021	1461	66	90
MERCEDES-BENZ	CITAN Box Body/MPV (W415)	112 (415.603)	2012 – 2021	1197	84	114
MERCEDES-BENZ	CITAN Box Body/MPV (W415)	111 CDI (415.603, 415.605)	2012 – 2021	1461	81	110
MERCEDES-BENZ	CITAN Box Body/MPV (W415)	108 CDI (415.603)	2012 – 2021	1461	59	80
MERCEDES-BENZ	CITAN Box Body/MPV (W415)	109 CDI (415.603, 415.605)	2012 – 2021	1461	70	95
MERCEDES-BENZ	CITAN Box Body/MPV (W415)	111 CDI (415.603, 415.605)	2012 – 2021	1461	85	116
MERCEDES-BENZ	CITAN Mixto (Double Cabin) (W415)	109 CDI (415.603, 415.605)	2012 – 2021	1461	66	90
MERCEDES-BENZ	CITAN Mixto (Double Cabin) (W415)	111 CDI (415.603, 415.605)	2012 – 2021	1461	81	110
MERCEDES-BENZ	CITAN MPV (W415)	108 CDI (415.703)	2012 – 2021	1461	55	75
MERCEDES-BENZ	CITAN MPV (W415)	109 CDI (415.703)	2012 – 2021	1461	66	90
MERCEDES-BENZ	CITAN MPV (W415)	111 CDI (415.703, 415.705)	2012 – 2021	1461	81	110
MERCEDES-BENZ	CITAN MPV (W415)	112 (415.703)	2012 – 2021	1197	84	114
MERCEDES-BENZ	CITAN MPV (W415)	108 CDI (415.703)	2012 – 2021	1461	59	80
MERCEDES-BENZ	CITAN MPV (W415)	109 CDI (415.703)	2012 – 2021	1461	70	95
MERCEDES-BENZ	CITAN MPV (W415)	111 CDI (415.703)	2012 – 2021	1461	85	116
