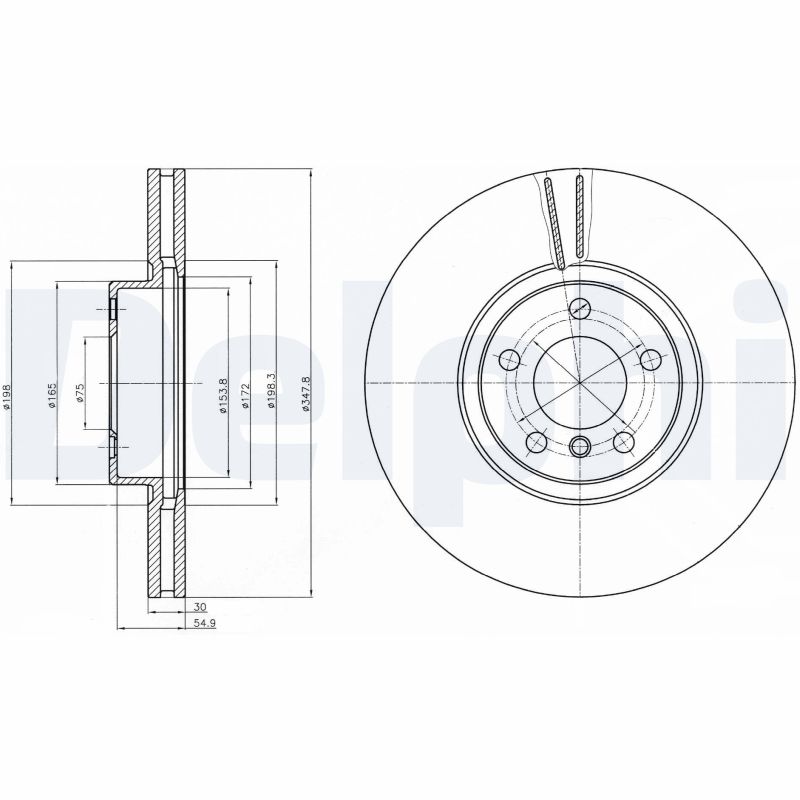

Specifications
| Brake Disc Thickness (mm) | 30 |
| Brake Disc Type Vented | |
| Centering Diameter (mm) | 75 |
| Height (mm) | 62 |
| Minimum thickness (mm) | 28.4 |
| Number of Holes 5 | |
| Outer Diameter (mm) | 348 |
Brake Disc Thickness [mm] 30, Brake Disc Type Vented, Centering Diameter [mm] 75, Height [mm] 62, Minimum thickness [mm] 28,4, Number of Holes 5, Outer Diameter [mm] 348
Fits: BMW
Fits: BMW
Supplier Cross-References
Interchangeable Part Numbers
OE Numbers — BMW
| Make | Model | Type / Engine | Years | CC | kW | HP |
|---|---|---|---|---|---|---|
| BMW | X5 (E70) | xDrive 40 d | 2006 – 2013 | 2993 | 225 | 306 |
| BMW | X5 (E70) | 3.0 3.0d | 2006 – 2013 | 2993 | 160 | 218 |
| BMW | X5 (E70) | M | 2006 – 2013 | 4395 | 414 | 563 |
| BMW | X5 (E70) | xDrive 30 i | 2006 – 2013 | 2996 | 194 | 264 |
| BMW | X5 (E70) | xDrive 30 i | 2006 – 2013 | 2996 | 172 | 234 |
| BMW | X5 (E70) | xDrive 40 i | 2006 – 2013 | 2979 | 225 | 306 |
| BMW | X5 (E70) | xDrive 50 i | 2006 – 2013 | 4395 | 298 | 405 |
| BMW | X5 (E70) | xDrive 30 d | 2006 – 2013 | 2993 | 155 | 211 |
| BMW | X5 (E70) | M 50 d | 2006 – 2013 | 2993 | 280 | 381 |
| BMW | X5 (E70) | xDrive 35 i | 2006 – 2013 | 2979 | 235 | 320 |
| BMW | X5 (E70) | 3.0 3.0d | 2006 – 2013 | 2993 | 155 | 211 |
| BMW | X5 (E70) | M | 2006 – 2013 | 4395 | 408 | 555 |
| BMW | X5 (E70) | xDrive 35 d | 2006 – 2013 | 2993 | 210 | 286 |
| BMW | X5 (E70) | xDrive 30 d | 2006 – 2013 | 2993 | 173 | 235 |
| BMW | X5 (E70) | xDrive 48 i | 2006 – 2013 | 4799 | 261 | 355 |
| BMW | X5 (E70) | xDrive 30 i | 2006 – 2013 | 2996 | 200 | 272 |
| BMW | X5 (E70) | 3.0 sd | 2006 – 2013 | 2993 | 210 | 286 |
| BMW | X5 (E70) | xDrive 30 d | 2006 – 2013 | 2993 | 180 | 245 |
| BMW | X5 (E70) | xDrive 35 i | 2006 – 2013 | 2979 | 225 | 306 |
| BMW | X5 (E70) | xDrive 50 i | 2006 – 2013 | 4395 | 300 | 408 |
| BMW | X5 (E70) | 3.0 si | 2006 – 2013 | 2996 | 200 | 272 |
| BMW | X5 (E70) | 3.0 d | 2006 – 2013 | 2993 | 173 | 235 |
| BMW | X5 (E70) | 4.8 i xDrive | 2006 – 2013 | 4799 | 261 | 355 |
| BMW | X5 (F15, F85) | xDrive 25 d | 2013 – 2018 | 1995 | 160 | 218 |
| BMW | X5 (F15, F85) | xDrive 28 i | 2013 – 2018 | 1997 | 180 | 245 |
| BMW | X5 (F15, F85) | xDrive 25 d | 2013 – 2018 | 1995 | 155 | 211 |
| BMW | X5 (F15, F85) | sDrive 25 d | 2013 – 2018 | 1995 | 155 | 211 |
| BMW | X5 (F15, F85) | xDrive 40e | 2013 – 2018 | 1997 | 205 | 279 |
| BMW | X5 (F15, F85) | xDrive 40e | 2013 – 2018 | 1997 | 230 | 313 |
| BMW | X5 (F15, F85) | xDrive 25 d | 2013 – 2018 | 1995 | 170 | 231 |
| BMW | X5 (F15, F85) | sDrive 25 d | 2013 – 2018 | 1995 | 170 | 231 |
| BMW | X5 (F15, F85) | sDrive 35 i | 2013 – 2018 | 2979 | 225 | 306 |
| BMW | X5 (F15, F85) | M | 2013 – 2018 | 4395 | 423 | 575 |
| BMW | X5 (F15, F85) | xDrive 30 d | 2013 – 2018 | 2993 | 204 | 277 |
| BMW | X5 (F15, F85) | xDrive 35 i | 2013 – 2018 | 2979 | 240 | 326 |
| BMW | X5 (F15, F85) | xDrive 50 i | 2013 – 2018 | 4395 | 332 | 452 |
| BMW | X5 (F15, F85) | xDrive 50 i | 2013 – 2018 | 3982 | 300 | 408 |
| BMW | X5 (F15, F85) | xDrive 40 d | 2013 – 2018 | 2993 | 230 | 313 |
| BMW | X5 (F15, F85) | sDrive 25 d | 2013 – 2018 | 1995 | 160 | 218 |
| BMW | X5 (F15, F85) | xDrive 35 i | 2013 – 2018 | 2979 | 225 | 306 |
| BMW | X5 (F15, F85) | xDrive 25 d | 2013 – 2018 | 2993 | 160 | 218 |
| BMW | X5 (F15, F85) | xDrive 30 d | 2013 – 2018 | 2993 | 183 | 249 |
| BMW | X5 (F15, F85) | xDrive 50 i | 2013 – 2018 | 4395 | 330 | 449 |
| BMW | X5 (F15, F85) | xDrive 30 d | 2013 – 2018 | 2993 | 210 | 286 |
| BMW | X5 (F15, F85) | M 50 d | 2013 – 2018 | 2993 | 280 | 381 |
| BMW | X5 (F15, F85) | xDrive 30 d | 2013 – 2018 | 2993 | 190 | 258 |
| BMW | X6 (E71, E72) | M | 2007 – 2015 | 4395 | 414 | 563 |
| BMW | X6 (E71, E72) | ActiveHybrid | 2007 – 2015 | 4395 | 357 | 485 |
| BMW | X6 (E71, E72) | xDrive 40 d | 2007 – 2015 | 2993 | 225 | 306 |
| BMW | X6 (E71, E72) | xDrive 30 d | 2007 – 2015 | 2993 | 180 | 245 |
| BMW | X6 (E71, E72) | xDrive 35 i | 2007 – 2015 | 2979 | 224 | 305 |
| BMW | X6 (E71, E72) | xDrive 50 i | 2007 – 2015 | 4395 | 300 | 408 |
| BMW | X6 (E71, E72) | xDrive 30 d | 2007 – 2015 | 2993 | 155 | 211 |
| BMW | X6 (E71, E72) | M 50 d | 2007 – 2015 | 2993 | 280 | 381 |
| BMW | X6 (E71, E72) | xDrive 35 i | 2007 – 2015 | 2979 | 235 | 320 |
| BMW | X6 (E71, E72) | xDrive 35 i | 2007 – 2015 | 2979 | 240 | 326 |
| BMW | X6 (E71, E72) | xDrive 50 i | 2007 – 2015 | 4395 | 330 | 449 |
| BMW | X6 (E71, E72) | M | 2007 – 2015 | 4395 | 408 | 555 |
| BMW | X6 (E71, E72) | xDrive 35 i | 2007 – 2015 | 2979 | 225 | 306 |
| BMW | X6 (E71, E72) | xDrive 35 d | 2007 – 2015 | 2993 | 210 | 286 |
| BMW | X6 (E71, E72) | xDrive 30 d | 2007 – 2015 | 2993 | 173 | 235 |
