Brake Disc
Brake Disc 1 Brake Disc 2 Brake Disc 3
Braking System

Brake Disc

Part No. BG9070 · SKU BG9070-DELPHI
Front Axle
₱33,800.00
In stock — available to order
Genuine & OEM parts Nationwide delivery Easy returns

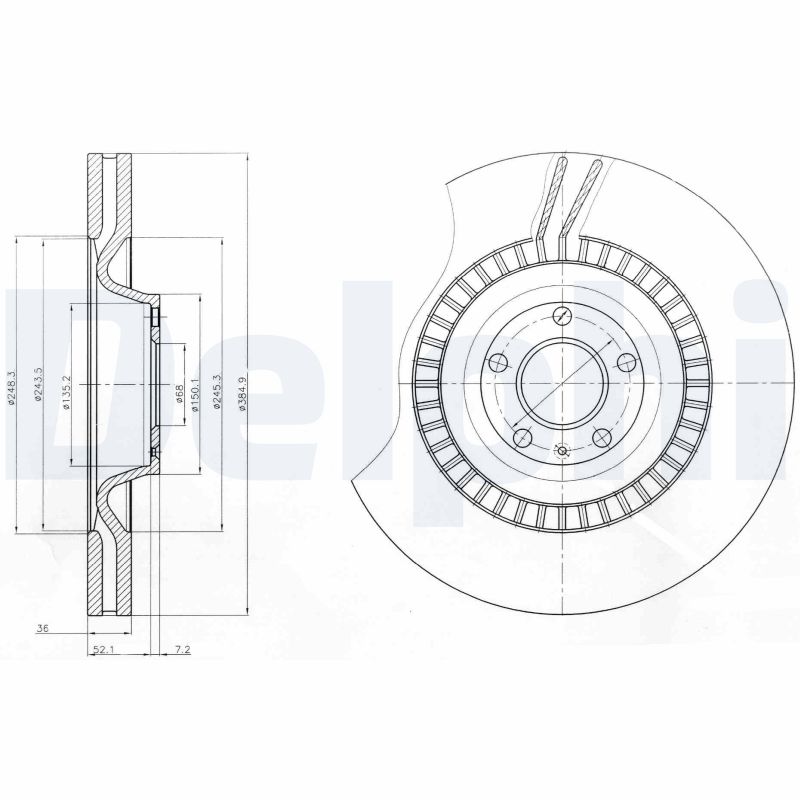

Specifications

Brake Disc Thickness (mm)36
Brake Disc Type Vented
Centering Diameter (mm)68
Height (mm)59.3
Machining High-carbon
Minimum thickness (mm)33.5
Number of Holes 5
Outer Diameter (mm)385
Brake Disc Thickness [mm] 36, Brake Disc Type Vented, Centering Diameter [mm] 68, Height [mm] 59,3, Machining High-carbon, Minimum thickness [mm] 33,5, Number of Holes 5, Outer Diameter [mm] 385
Fits: AUDI

Supplier Cross-References

DELPHIBG9070 TEXTAR92184203 FERODODDF2222C ATE24013601031 HELLA PAGID8DD355115892 JURID562696JC

OE Numbers — AUDI 4E0 615

301E 301K

OE Numbers — AUDI

4E0615301E 4E0615301K
MakeModelType / Engine YearsCCkWHP
AUDI A8 D3 (4E2, 4E8) 3.0 TDI quattro 2002 – 2010 2967 155 211
AUDI A8 D3 (4E2, 4E8) 3.0 quattro 2002 – 2010 2976 162 220
AUDI A8 D3 (4E2, 4E8) S 8 quattro 2002 – 2010 4172 268 364
AUDI A8 D3 (4E2, 4E8) 4.2 quattro 2002 – 2010 4172 224 305
AUDI A8 D3 (4E2, 4E8) 2.8 FSI 2002 – 2010 2773 170 231
AUDI A8 D3 (4E2, 4E8) 2.8 FSI 2002 – 2010 2773 154 210
AUDI A8 D3 (4E2, 4E8) 3.0 quattro 2002 – 2010 2976 160 218
AUDI A8 D3 (4E2, 4E8) 4.2 FSI quattro 2002 – 2010 4163 257 350
AUDI A8 D3 (4E2, 4E8) 4.2 TDI quattro 2002 – 2010 4134 240 326
AUDI A8 D3 (4E2, 4E8) S8 quattro 2002 – 2010 5204 331 450
AUDI A8 D3 (4E2, 4E8) 4.2 quattro 2002 – 2010 4172 246 335
AUDI A8 D3 (4E2, 4E8) 3.0 2002 – 2010 2976 160 218
AUDI A8 D3 (4E2, 4E8) 4.2 TDI quattro 2002 – 2010 4134 235 320
AUDI A8 D3 (4E2, 4E8) 3.2 FSI quattro 2002 – 2010 3123 191 260
AUDI A8 D3 (4E2, 4E8) 3.2 FSI 2002 – 2010 3123 191 260
AUDI A8 D3 (4E2, 4E8) 3.0 TDI quattro 2002 – 2010 2967 171 233
AUDI A8 D3 (4E2, 4E8) 6.0 W12 quattro 2002 – 2010 5998 331 450
AUDI A8 D3 (4E2, 4E8) 3.0 2002 – 2010 2976 162 220
AUDI A8 D3 (4E2, 4E8) 4.0 TDI quattro 2002 – 2010 3936 202 275
AUDI A8 D3 (4E2, 4E8) 3.7 quattro 2002 – 2010 3697 206 280
