Brake Disc
Brake Disc 1 Brake Disc 2 Brake Disc 3
Braking System

Brake Disc

Part No. BG9113RS · SKU BG9113RS-DELPHI
Rear Axle
₱16,400.00
In stock — available to order
Genuine & OEM parts Nationwide delivery Easy returns

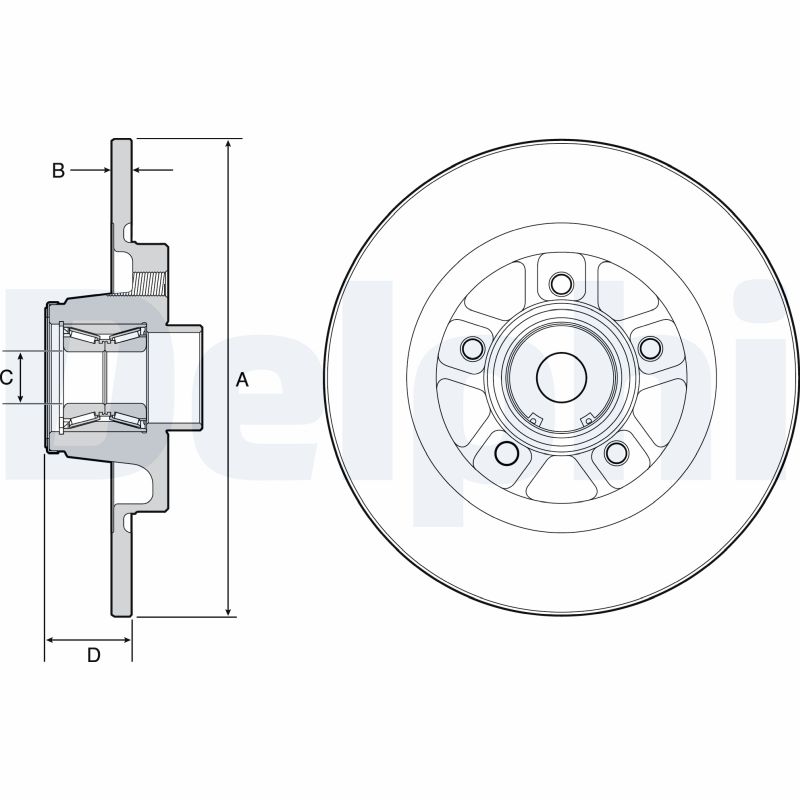

Specifications

Brake Disc Thickness (mm)11
Brake Disc Type solid
Centering Diameter (mm)30
Height (mm)90.4
Minimum thickness (mm)9.5
Number of Holes 5
Outer Diameter (mm)274
Test Mark E1 90R-02C0543/1518
Brake Disc Thickness [mm] 11, Brake Disc Type solid, Centering Diameter [mm] 30, Height [mm] 90,4, Minimum thickness [mm] 9,5, Number of Holes 5, Outer Diameter [mm] 274, Test Mark E1 90R-02C0543/1518
Fits: MERCEDES-BENZ, RENAULT

Supplier Cross-References

DELPHIBG9113RS TEXTAR92196200 ZIMMERMANN400363800 FERODODDF1734 ATE24011101742 HELLA PAGID8DD355120571

Interchangeable Part Numbers

A.B.S.17981C APECDSK2714 BENDIX522205 BENDIX562609B BLUE PRINTADR164305 Brake ENGINEERING DI956873S,DI956924S Brake ENGINEERINGDI956873SDI956924S BREMBO08.B395.17 BREMBO08.B395.27 JURATEKREN182C LPRR1033PCA MGAD1872R MINTEXMDC2614 PAGID54962 SNRKF155.121U SNRKF155.94U TRWDF6043BS VALEO 0 986 479F30 VALEO0986479F30 WOKINGP61311.20

OE Numbers — MERCEDES-BENZ

4154200102 4154200302 4154203300 4154204300 4154210100

OE Numbers — RENAULT

402024076R 432004327R 432020879R 432023939R 432025057R 8200381148

OE Numbers — RENAULT 8200 381

148
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ CITAN Box Body/MPV (W415) 108 CDI (415.601, 415.603) 2012 – 2021 1461 55 75
MERCEDES-BENZ CITAN Box Body/MPV (W415) 109 CDI (415.601, 415.603, 415.605) 2012 – 2021 1461 66 90
MERCEDES-BENZ CITAN Box Body/MPV (W415) 112 (415.603) 2012 – 2021 1197 84 114
MERCEDES-BENZ CITAN Box Body/MPV (W415) 111 CDI (415.603, 415.605) 2012 – 2021 1461 81 110
MERCEDES-BENZ CITAN Box Body/MPV (W415) 108 CDI (415.603) 2012 – 2021 1461 59 80
MERCEDES-BENZ CITAN Box Body/MPV (W415) 109 CDI (415.603, 415.605) 2012 – 2021 1461 70 95
MERCEDES-BENZ CITAN Box Body/MPV (W415) 111 CDI (415.603, 415.605) 2012 – 2021 1461 85 116
MERCEDES-BENZ CITAN Mixto (Double Cabin) (W415) 109 CDI (415.603, 415.605) 2012 – 2021 1461 66 90
MERCEDES-BENZ CITAN Mixto (Double Cabin) (W415) 111 CDI (415.603, 415.605) 2012 – 2021 1461 81 110
MERCEDES-BENZ CITAN MPV (W415) 108 CDI (415.703) 2012 – 2021 1461 55 75
MERCEDES-BENZ CITAN MPV (W415) 109 CDI (415.703) 2012 – 2021 1461 66 90
MERCEDES-BENZ CITAN MPV (W415) 111 CDI (415.703, 415.705) 2012 – 2021 1461 81 110
MERCEDES-BENZ CITAN MPV (W415) 112 (415.703) 2012 – 2021 1197 84 114
MERCEDES-BENZ CITAN MPV (W415) 108 CDI (415.703) 2012 – 2021 1461 59 80
MERCEDES-BENZ CITAN MPV (W415) 109 CDI (415.703) 2012 – 2021 1461 70 95
MERCEDES-BENZ CITAN MPV (W415) 111 CDI (415.703) 2012 – 2021 1461 85 116
