Brake Shoe Set
Braking System

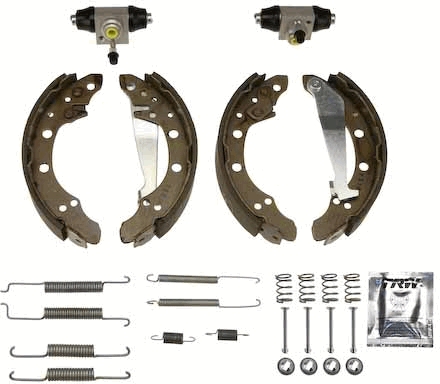

Brake Shoe Set

Part No. BK1505 · SKU BK1505-TRW
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Inner brake drum diameter (mm)200
Manufacturer Restriction VAG
Material Aluminium
Piston Diameter (mm)17.5
Supplementary Article/Supplementary Info with wheel brake cylinder
Test Mark E1 90R 01195/047
Width (mm)40
Inner brake drum diameter [mm] 200, Manufacturer Restriction VAG, Material Aluminium, Piston Diameter [mm] 17,5, Supplementary Article/Supplementary Info with wheel brake cylinder, Test Mark E1 90R 01195/047, Width [mm] 40
Fits: AUDI, VW

Interchangeable Part Numbers

ABEXH2077 ATE03.0420-0417.3 ATE3042004173 BENDIX391225B BENDIXB339225 BOSCH 0 204 113578 BOSCH0204113578 BOSCH204113578 FERODOKDF004 GIRLING5215059 PEXKIT16 QUINTON HAZELLKBS249 QUINTON HAZELLKBS58 VALEO553123
MakeModelType / Engine YearsCCkWHP
AUDI 100 C2 Avant (435, 436) 2.0 D 1977 – 1983 1986 51 70
AUDI 100 C2 Avant (435, 436) 2.1 1977 – 1983 2144 100 136
AUDI 100 C2 Avant (435, 436) 2.1 1977 – 1983 2144 85 115
AUDI 100 C2 Avant (435, 436) 1.6 1977 – 1983 1588 63 85
AUDI 100 C2 Avant (435, 436) 2.0 1977 – 1983 1984 85 115
AUDI 100 C2 Avant (435, 436) 1.9 1977 – 1983 1921 74 100
AUDI 100 C2 Saloon (431, 433, 434) 1.9 1976 – 1984 1871 70 95
AUDI 100 C2 Saloon (431, 433, 434) 2.1 1976 – 1984 2144 85 115
AUDI 100 C2 Saloon (431, 433, 434) 2.0 1976 – 1984 1984 85 115
AUDI 100 C2 Saloon (431, 433, 434) 1.9 1976 – 1984 1921 74 100
AUDI 100 C2 Saloon (431, 433, 434) 1.6 1976 – 1984 1588 63 85
AUDI 100 C2 Saloon (431, 433, 434) 2.1 1976 – 1984 2144 100 136
AUDI 100 C2 Saloon (431, 433, 434) 2.0 D 1976 – 1984 1986 51 70
AUDI 100 C2 Saloon (431, 433, 434) 2.2 1976 – 1984 2144 75 102
AUDI 100 C2 Saloon (431, 433, 434) 2.2 1976 – 1984 2144 79 107
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 GTE 1978 – 1987 1781 81 110
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.9 CD-5S 1978 – 1987 1921 85 115
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.0 quattro (85Q) 1978 – 1987 1994 85 115
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 GTE quattro (85Q) 1978 – 1987 1781 81 110
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.3 1978 – 1987 1272 40 55
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 quattro (85Q) 1978 – 1987 2144 100 136
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 1978 – 1987 2144 85 115
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.0 1978 – 1987 1994 85 115
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1588 51 70
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 quattro 1978 – 1987 2144 96 131
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1588 55 75
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.3 1978 – 1987 1272 44 60
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 quattro 1978 – 1987 2226 100 136
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1588 61 83
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.7 1978 – 1987 1715 58 79
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 1978 – 1987 1780 76 103
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 1978 – 1987 2226 88 120
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 1978 – 1987 2226 89 121
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.0 1978 – 1987 1994 81 110
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.3 1978 – 1987 1297 44 60
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1595 54 73
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1595 55 75
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1588 63 85
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 GLE 1978 – 1987 1588 81 110
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 1978 – 1987 1781 65 88
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 1978 – 1987 1781 66 90
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 GTE 1978 – 1987 1781 82 112
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 D 1978 – 1987 1588 40 54
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 TD 1978 – 1987 1588 51 70
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 CC quattro (85Q) 1978 – 1987 1781 66 90
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 GTE quattro (85Q) 1978 – 1987 1781 82 112
AUDI 90 B2 (813, 814, 853) 1.6 TD 1984 – 1988 1588 51 70
AUDI 90 B2 (813, 814, 853) 2.0 quattro 1984 – 1988 1994 85 116
AUDI 90 B2 (813, 814, 853) 2.2 1984 – 1988 2226 100 136
AUDI 90 B2 (813, 814, 853) 2.2 1984 – 1988 2226 85 115
AUDI 90 B2 (813, 814, 853) 2.0 1984 – 1988 1994 85 115
AUDI 90 B2 (813, 814, 853) 2.2 E quattro 1984 – 1988 2226 100 136
AUDI 90 B2 (813, 814, 853) 2.0 1984 – 1988 1994 83 113
AUDI 90 B2 (813, 814, 853) 2.2 E quattro 1984 – 1988 2226 88 120
AUDI COUPE B2 (81, 855, 856) 1.8 GT 1980 – 1988 1781 82 112
AUDI COUPE B2 (81, 855, 856) 2.2 GT 1980 – 1988 2226 88 120
AUDI COUPE B2 (81, 855, 856) 2.2 quattro 1980 – 1988 2226 100 136
AUDI COUPE B2 (81, 855, 856) 2.2 quattro 1980 – 1988 2226 88 120
AUDI COUPE B2 (81, 855, 856) 1.8 1980 – 1988 1781 55 75
AUDI COUPE B2 (81, 855, 856) 2.2 GT 1980 – 1988 2226 100 136
AUDI COUPE B2 (81, 855, 856) 2.2 GT 1980 – 1988 2226 85 115
AUDI COUPE B2 (81, 855, 856) 2.1 GT 1980 – 1988 2144 96 131
AUDI COUPE B2 (81, 855, 856) 2.3 1980 – 1988 2309 98 133
AUDI COUPE B2 (81, 855, 856) 2.0 1980 – 1988 1994 85 115
AUDI COUPE B2 (81, 855, 856) 1.9 1980 – 1988 1921 85 115
AUDI COUPE B2 (81, 855, 856) 1.8 GT quattro 1980 – 1988 1781 82 112
AUDI COUPE B2 (81, 855, 856) 1.8 GT 1980 – 1988 1781 65 88
AUDI COUPE B2 (81, 855, 856) 2.1 GT 1980 – 1988 2144 79 107
AUDI COUPE B2 (81, 855, 856) 1.6 1980 – 1988 1588 55 75
AUDI COUPE B2 (81, 855, 856) 1.8 GT 1980 – 1988 1781 79 107
AUDI COUPE B2 (81, 855, 856) 1.8 GT 1980 – 1988 1781 66 90
AUDI COUPE B2 (81, 855, 856) 2.0 1980 – 1988 1994 83 113
AUDI COUPE B2 (81, 855, 856) 2.3 quattro 1980 – 1988 2309 98 133
