Wheel Brake Cylinder

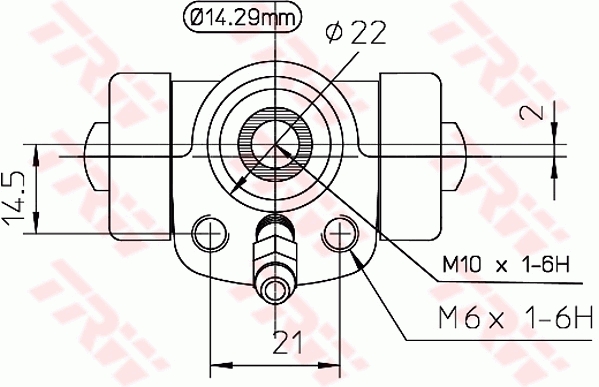

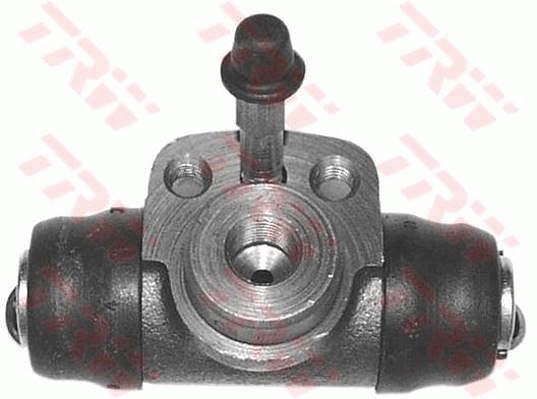

Wheel Brake Cylinder 1 Wheel Brake Cylinder 2
Braking System

Wheel Brake Cylinder

Part No. BWA108 · SKU BWA108-TRW
Rear Axle Left
₱3,100.00
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Braking System for vehicles without brake force regulator
Manufacturer Restriction ATE
Material Cast Iron
Piston Diameter (mm)14.3
Braking System for vehicles without brake force regulator, Manufacturer Restriction ATE, Material Cast Iron, Piston Diameter [mm] 14,3
Fits: AUDI, VW, VW (FAW), VW (SVW)

Supplier Cross-References

DELPHILW40812 TEXTAR34002700 FERODOFHW004 BREMBOA12044 TRWBWA108 VW171611051B

Interchangeable Part Numbers

A.B.S.2742 APECBCY1248 ATE03.3214-0811.3 ATE03.3214-0812.3 ATE03.3217-2112.3 ATE24321409023 ATE3321408113 ATE3321408123 ATE3321721123 BENDIX212063B BENDIX212323B BORG & BECKBBW1265 BOSCH0 986 475 290 BOSCH0 986 AB8 401 BOSCH986475290 BOSCH F026 009 290 BOSCHF026009290 Brake ENGINEERINGWC1690BE BREMBOA12415 CAR3505 CAR3527 DELPHILW44013 FEBI BILSTEIN02216 FEBI BILSTEIN06102 FERODOFHW4099 FERODOFHY004 FIRST LINEFBW1265 FIRST LINEFBW1631 FTER14013A1 FTER1408A1 FTER1408B1 FTER1408C1 FTER1408G1 FTER1408J1 HELLA8AW 355 531-531 HELLA8AW 355 531-551 JURID212063J JURID212323J MAGNETI MARELLI360219230260 MAGNETI MARELLI360219230344 METELLI04-0116 METELLI040597 METZGER101597 MEYLE100 611 0036 MEYLE100 611 0055 MGAC1552 MGAC1571 NK804701 OPTIMALRZ-3924A OPTIMALRZ-3924 PAGID72199 PEX114436 PEX114572 QUINTON HAZELLBWC3250 QUINTON HAZELLRF14003 QUINTON HAZELLRF14004 REMSAC151400 ROADHOUSE1514.00 SWAG30906102 SWAG99902216 TEXTAR34002500 TRISCAN813029004 TRUSTINGCF001 TRW32660052 VALEO350385 VALEO350539

OE Numbers — AUDI

171 611 051 A 1H0 611 053 B

OE Numbers — VW

171 611 053 A 171 611 053 3056110514
MakeModelType / Engine YearsCCkWHP
AUDI 50 (863) 1.1 1974 – 1978 1093 44 60
AUDI 50 (863) 1.3 1974 – 1978 1272 44 60
AUDI 50 (863) 0.8 1974 – 1978 771 25 34
AUDI 50 (863) 1.3 1974 – 1978 1272 43 58
AUDI 50 (863) 1.1 1974 – 1978 1093 37 50
AUDI 80 B1 Saloon (80, 82) 1.6 1972 – 1978 1588 53 72
AUDI 80 B1 Saloon (80, 82) 1.3 1972 – 1978 1297 44 60
AUDI 80 B1 Saloon (80, 82) 1.6 1972 – 1978 1588 63 85
AUDI 80 B1 Saloon (80, 82) 1.6 GT 1972 – 1978 1584 74 100
AUDI 80 B1 Saloon (80, 82) 1.6 GTE 1972 – 1978 1588 81 110
AUDI 80 B1 Saloon (80, 82) 1.6 1972 – 1978 1588 57 78
AUDI 80 B1 Saloon (80, 82) 1.6 1972 – 1978 1588 61 83
AUDI 80 B1 Saloon (80, 82) 1.5 1972 – 1978 1471 57 77
AUDI 80 B1 Saloon (80, 82) 1.3 1972 – 1978 1297 40 55
AUDI 80 B1 Saloon (80, 82) 1.5 1972 – 1978 1471 55 75
AUDI 80 B1 Saloon (80, 82) 1.5 1972 – 1978 1471 63 85
AUDI 80 B1 Saloon (80, 82) 1.6 1972 – 1978 1588 55 75
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 1978 – 1987 2144 85 115
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1588 61 83
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 quattro 1978 – 1987 2226 100 136
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.3 1978 – 1987 1272 44 60
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1588 55 75
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 quattro 1978 – 1987 2144 96 131
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1588 51 70
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.3 1978 – 1987 1297 44 60
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.3 1978 – 1987 1272 40 55
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.0 1978 – 1987 1994 85 115
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 1978 – 1987 1781 65 88
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.0 quattro (85Q) 1978 – 1987 1994 85 115
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 quattro (85Q) 1978 – 1987 2144 100 136
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 GTE 1978 – 1987 1781 81 110
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 GTE quattro (85Q) 1978 – 1987 1781 81 110
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.9 CD-5S 1978 – 1987 1921 85 115
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1588 63 85
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 GLE 1978 – 1987 1588 81 110
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 1978 – 1987 1781 66 90
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 GTE 1978 – 1987 1781 82 112
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 D 1978 – 1987 1588 40 54
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 TD 1978 – 1987 1588 51 70
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 CC quattro (85Q) 1978 – 1987 1781 66 90
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 GTE quattro (85Q) 1978 – 1987 1781 82 112
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.0 1978 – 1987 1994 81 110
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.7 1978 – 1987 1715 58 79
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 1978 – 1987 2226 89 121
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1595 55 75
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1595 54 73
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 1978 – 1987 2226 88 120
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 1978 – 1987 1780 76 103
AUDI 80 B3 Saloon (893, 894, 8A2) 2.0 E 1986 – 1991 1984 85 115
AUDI 80 B3 Saloon (893, 894, 8A2) 1.9 1986 – 1991 1847 83 113
AUDI 80 B3 Saloon (893, 894, 8A2) 1.9 quattro 1986 – 1991 1847 83 113
AUDI 80 B3 Saloon (893, 894, 8A2) 1.4 1986 – 1991 1400 48 65
AUDI 80 B3 Saloon (893, 894, 8A2) 2.3 1986 – 1991 2309 97 132
AUDI 80 B3 Saloon (893, 894, 8A2) 1.6 1986 – 1991 1595 75 102
AUDI 80 B3 Saloon (893, 894, 8A2) 2.3 quattro 1986 – 1991 2309 98 133
AUDI 80 B3 Saloon (893, 894, 8A2) 1.6 TD 1986 – 1991 1588 59 80
AUDI 80 B3 Saloon (893, 894, 8A2) 2.0 E 16V quattro 1986 – 1991 1984 101 137
AUDI 80 B3 Saloon (893, 894, 8A2) 2.0 quattro 1986 – 1991 1984 85 115
AUDI 80 B3 Saloon (893, 894, 8A2) 2.0 E quattro 1986 – 1991 1984 83 113
AUDI 80 B3 Saloon (893, 894, 8A2) 1.8 quattro 1986 – 1991 1847 83 113
AUDI 80 B3 Saloon (893, 894, 8A2) 1.8 S quattro 1986 – 1991 1781 66 90
AUDI 80 B3 Saloon (893, 894, 8A2) 1.8 S quattro 1986 – 1991 1781 65 88
AUDI 80 B3 Saloon (893, 894, 8A2) 2.0 E 16V 1986 – 1991 1984 101 137
AUDI 80 B3 Saloon (893, 894, 8A2) 1.6 1986 – 1991 1595 51 70
AUDI 80 B3 Saloon (893, 894, 8A2) 1.9 D 1986 – 1991 1896 50 68
AUDI 80 B3 Saloon (893, 894, 8A2) 1.8 E quattro 1986 – 1991 1781 82 112
AUDI 80 B3 Saloon (893, 894, 8A2) 1.6 D 1986 – 1991 1588 40 54
AUDI 80 B3 Saloon (893, 894, 8A2) 2.0 E 1986 – 1991 1984 83 113
AUDI 80 B3 Saloon (893, 894, 8A2) 1.8 1986 – 1991 1847 83 113
AUDI 80 B3 Saloon (893, 894, 8A2) 1.8 E 1986 – 1991 1781 82 112
AUDI 80 B3 Saloon (893, 894, 8A2) 1.8 S 1986 – 1991 1781 66 90
AUDI 80 B3 Saloon (893, 894, 8A2) 1.8 S 1986 – 1991 1781 65 88
AUDI 80 B3 Saloon (893, 894, 8A2) 1.8 1986 – 1991 1781 55 75
AUDI 80 B3 Saloon (893, 894, 8A2) 1.6 1986 – 1991 1595 55 75
AUDI 80 B3 Saloon (893, 894, 8A2) 2.0 E 1986 – 1991 1984 82 112
AUDI COUPE B2 (81, 855, 856) 2.2 GT 1980 – 1988 2226 88 120
AUDI COUPE B2 (81, 855, 856) 1.8 1980 – 1988 1781 55 75
AUDI COUPE B2 (81, 855, 856) 1.8 GT 1980 – 1988 1781 82 112
AUDI COUPE B2 (81, 855, 856) 2.2 quattro 1980 – 1988 2226 88 120
AUDI COUPE B2 (81, 855, 856) 2.2 quattro 1980 – 1988 2226 100 136
AUDI COUPE B2 (81, 855, 856) 2.2 GT 1980 – 1988 2226 100 136
AUDI COUPE B2 (81, 855, 856) 2.2 GT 1980 – 1988 2226 85 115
AUDI COUPE B2 (81, 855, 856) 2.3 1980 – 1988 2309 98 133
AUDI COUPE B2 (81, 855, 856) 2.3 quattro 1980 – 1988 2309 98 133
AUDI COUPE B2 (81, 855, 856) 1.8 GT quattro 1980 – 1988 1781 82 112
AUDI COUPE B2 (81, 855, 856) 2.0 1980 – 1988 1994 83 113
AUDI COUPE B2 (81, 855, 856) 2.1 GT 1980 – 1988 2144 96 131
AUDI COUPE B2 (81, 855, 856) 1.6 1980 – 1988 1588 55 75
AUDI COUPE B2 (81, 855, 856) 2.1 GT 1980 – 1988 2144 79 107
AUDI COUPE B2 (81, 855, 856) 2.0 1980 – 1988 1994 85 115
AUDI COUPE B2 (81, 855, 856) 1.9 1980 – 1988 1921 85 115
AUDI COUPE B2 (81, 855, 856) 1.8 GT 1980 – 1988 1781 79 107
AUDI COUPE B2 (81, 855, 856) 1.8 GT 1980 – 1988 1781 66 90
AUDI COUPE B2 (81, 855, 856) 1.8 GT 1980 – 1988 1781 65 88
