Wheel Brake Cylinder

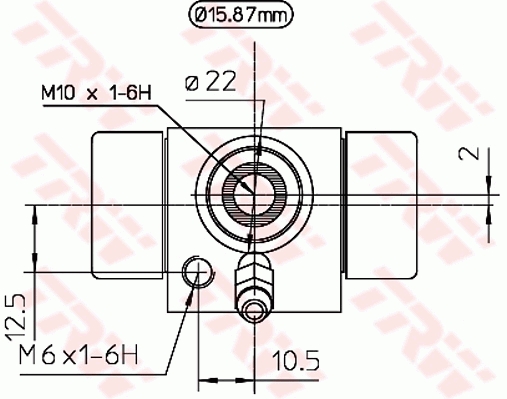

Wheel Brake Cylinder 1 Wheel Brake Cylinder 2
Braking System

Wheel Brake Cylinder

Part No. BWB111A · SKU BWB111A-TRW
Rear Axle Left
₱3,300.00
In stock — available to order
Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Manufacturer Restriction FTE
Material Aluminium
Observe technical data
Piston Diameter (mm)15.9
Manufacturer Restriction FTE, Material Aluminium, Observe technical data , Piston Diameter [mm] 15,9
Fits: AUDI, SEAT, VW

Supplier Cross-References

DELPHILW45026 TEXTAR34003300 FERODOFHW4033 BREMBOA12382 TRWBWB111A VW1H0611053A

Interchangeable Part Numbers

A.B.S.42004 A.B.S.42004X APECBCY1369 ATE03.3215-2311.3 ATE24321509033 ATE3321523113 BENDIX212008B BENDIX212324B BORG & BECKBBW1267 BORG & BECKBBW1632 BOSCH0 986 475 438 BOSCH986475438 BOSCH F026 009 438 BOSCHF026009438 Brake ENGINEERINGWC1375BE BREMBOA12083 CAR3528 CAR3549 DELPHILW40011 DELPHILW42311 FEBI BILSTEIN02894 FEBI BILSTEIN06098 FERODOFHW005 FERODOFHY005 FIRST LINEFBW1267 FIRST LINEFBW1632 FTE9210022 FTER15013A1 FTER15013B1 FTER15013F1 FTER15013G1 FTER15026A1 HELLA8AW 355 531-561 HELLA8AW 355 531-611 JURID212008J JURID212324J MAGNETI MARELLI360219230287 MAGNETI MARELLI360219230345 METELLI04-0226 METELLI040598 METZGER101226 METZGER101598 MEYLE100 611 0029 MEYLE100 611 0056 MGAC1572 MGAC1599 OPTIMALRZ-4010A OPTIMALRZ-4010 PAGID72053 PAGID72200 PEX115513 PEX115573 QUINTON HAZELLBWC3043 QUINTON HAZELLBWC3336 QUINTON HAZELLBWC3582 QUINTON HAZELLRF15001 QUINTON HAZELLRF15009 REMSAC151508 ROADHOUSE1515.08 SWAG30906098 SWAG32902894 TEXTAR34002800 TRISCAN813029009 TRISCAN813029021 TRUSTINGCF080 TRUSTINGCF725 TRW32966885 VALEO350542 VALEO402226

OE Numbers — AUDI

861 611 053 A

OE Numbers — VW

861 611 051 A
MakeModelType / Engine YearsCCkWHP
AUDI 100 C1 Saloon (801, 803, 805, 807, 811, 813, F104) 1.8 1968 – 1976 1760 79 107
AUDI 100 C1 Saloon (801, 803, 805, 807, 811, 813, F104) 1.8 1968 – 1976 1760 85 115
AUDI 100 C1 Saloon (801, 803, 805, 807, 811, 813, F104) 1.9 1968 – 1976 1871 71 97
AUDI 100 C1 Saloon (801, 803, 805, 807, 811, 813, F104) 1.9 1968 – 1976 1871 68 92
AUDI 100 C1 Saloon (801, 803, 805, 807, 811, 813, F104) 1.9 1968 – 1976 1871 70 95
AUDI 100 C1 Saloon (801, 803, 805, 807, 811, 813, F104) 1.6 1968 – 1976 1588 63 85
AUDI 100 C1 Saloon (801, 803, 805, 807, 811, 813, F104) 1.8 1968 – 1976 1760 63 85
AUDI 100 C1 Saloon (801, 803, 805, 807, 811, 813, F104) 1.8 1968 – 1976 1760 74 100
AUDI 100 C1 Saloon (801, 803, 805, 807, 811, 813, F104) 1.9 1968 – 1976 1871 82 112
AUDI 100 C1 Saloon (801, 803, 805, 807, 811, 813, F104) 1.8 1968 – 1976 1760 59 80
AUDI 100 C1 Saloon (801, 803, 805, 807, 811, 813, F104) 1.8 1968 – 1976 1760 66 90
AUDI 100 C2 Avant (435, 436) 1.6 1977 – 1983 1588 63 85
AUDI 100 C2 Avant (435, 436) 2.1 1977 – 1983 2144 85 115
AUDI 100 C2 Avant (435, 436) 2.1 1977 – 1983 2144 100 136
AUDI 100 C2 Avant (435, 436) 2.0 D 1977 – 1983 1986 51 70
AUDI 100 C2 Avant (435, 436) 1.9 1977 – 1983 1921 74 100
AUDI 100 C2 Avant (435, 436) 2.0 1977 – 1983 1984 85 115
AUDI 100 C2 Saloon (431, 433, 434) 1.6 1976 – 1984 1588 63 85
AUDI 100 C2 Saloon (431, 433, 434) 1.9 1976 – 1984 1921 74 100
AUDI 100 C2 Saloon (431, 433, 434) 2.0 1976 – 1984 1984 85 115
AUDI 100 C2 Saloon (431, 433, 434) 2.1 1976 – 1984 2144 85 115
AUDI 100 C2 Saloon (431, 433, 434) 2.1 1976 – 1984 2144 100 136
AUDI 100 C2 Saloon (431, 433, 434) 2.0 D 1976 – 1984 1986 51 70
AUDI 100 C2 Saloon (431, 433, 434) 1.9 1976 – 1984 1871 70 95
AUDI 100 C2 Saloon (431, 433, 434) 2.2 1976 – 1984 2144 75 102
AUDI 100 C2 Saloon (431, 433, 434) 2.2 1976 – 1984 2144 79 107
AUDI 80 B1 Saloon (80, 82) 1.6 1972 – 1978 1588 61 83
AUDI 80 B1 Saloon (80, 82) 1.6 1972 – 1978 1588 53 72
AUDI 80 B1 Saloon (80, 82) 1.5 1972 – 1978 1471 57 77
AUDI 80 B1 Saloon (80, 82) 1.6 1972 – 1978 1588 57 78
AUDI 80 B1 Saloon (80, 82) 1.3 1972 – 1978 1297 40 55
AUDI 80 B1 Saloon (80, 82) 1.5 1972 – 1978 1471 55 75
AUDI 80 B1 Saloon (80, 82) 1.5 1972 – 1978 1471 63 85
AUDI 80 B1 Saloon (80, 82) 1.6 1972 – 1978 1588 55 75
AUDI 80 B1 Saloon (80, 82) 1.3 1972 – 1978 1297 44 60
AUDI 80 B1 Saloon (80, 82) 1.6 1972 – 1978 1588 63 85
AUDI 80 B1 Saloon (80, 82) 1.6 GT 1972 – 1978 1584 74 100
AUDI 80 B1 Saloon (80, 82) 1.6 GTE 1972 – 1978 1588 81 110
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.3 1978 – 1987 1272 40 55
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.3 1978 – 1987 1297 44 60
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1595 54 73
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1595 55 75
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1588 63 85
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 GLE 1978 – 1987 1588 81 110
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 1978 – 1987 1781 65 88
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 1978 – 1987 1781 66 90
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 GTE 1978 – 1987 1781 82 112
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 D 1978 – 1987 1588 40 54
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 TD 1978 – 1987 1588 51 70
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 CC quattro (85Q) 1978 – 1987 1781 66 90
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 GTE quattro (85Q) 1978 – 1987 1781 82 112
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.0 quattro (85Q) 1978 – 1987 1994 85 115
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 quattro (85Q) 1978 – 1987 2144 100 136
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 GTE quattro (85Q) 1978 – 1987 1781 81 110
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.9 CD-5S 1978 – 1987 1921 85 115
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 GTE 1978 – 1987 1781 81 110
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 1978 – 1987 2144 85 115
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.0 1978 – 1987 1994 85 115
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1588 51 70
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 quattro 1978 – 1987 2144 96 131
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1588 55 75
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.3 1978 – 1987 1272 44 60
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 quattro 1978 – 1987 2226 100 136
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 1978 – 1987 2226 89 121
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 1978 – 1987 2226 88 120
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 1978 – 1987 1780 76 103
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.7 1978 – 1987 1715 58 79
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1588 61 83
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.0 1978 – 1987 1994 81 110
AUDI 80 B3 Saloon (893, 894, 8A2) 1.9 1986 – 1991 1847 83 113
AUDI 80 B3 Saloon (893, 894, 8A2) 2.0 E 1986 – 1991 1984 85 115
AUDI 80 B3 Saloon (893, 894, 8A2) 1.9 quattro 1986 – 1991 1847 83 113
AUDI 80 B3 Saloon (893, 894, 8A2) 2.3 quattro 1986 – 1991 2309 98 133
AUDI 80 B3 Saloon (893, 894, 8A2) 2.3 1986 – 1991 2309 97 132
AUDI 80 B3 Saloon (893, 894, 8A2) 1.6 1986 – 1991 1595 55 75
AUDI 80 B3 Saloon (893, 894, 8A2) 1.8 1986 – 1991 1781 55 75
AUDI 80 B3 Saloon (893, 894, 8A2) 1.8 S 1986 – 1991 1781 65 88
AUDI 80 B3 Saloon (893, 894, 8A2) 1.8 S 1986 – 1991 1781 66 90
AUDI 80 B3 Saloon (893, 894, 8A2) 1.8 E 1986 – 1991 1781 82 112
AUDI 80 B3 Saloon (893, 894, 8A2) 1.8 1986 – 1991 1847 83 113
AUDI 80 B3 Saloon (893, 894, 8A2) 2.0 E 1986 – 1991 1984 83 113
AUDI 80 B3 Saloon (893, 894, 8A2) 1.6 D 1986 – 1991 1588 40 54
AUDI 80 B3 Saloon (893, 894, 8A2) 1.6 TD 1986 – 1991 1588 59 80
AUDI 80 B3 Saloon (893, 894, 8A2) 1.9 D 1986 – 1991 1896 50 68
AUDI 80 B3 Saloon (893, 894, 8A2) 1.6 1986 – 1991 1595 51 70
AUDI 80 B3 Saloon (893, 894, 8A2) 2.0 E 16V 1986 – 1991 1984 101 137
AUDI 80 B3 Saloon (893, 894, 8A2) 1.8 S quattro 1986 – 1991 1781 65 88
AUDI 80 B3 Saloon (893, 894, 8A2) 1.8 S quattro 1986 – 1991 1781 66 90
AUDI 80 B3 Saloon (893, 894, 8A2) 1.8 quattro 1986 – 1991 1847 83 113
AUDI 80 B3 Saloon (893, 894, 8A2) 2.0 E quattro 1986 – 1991 1984 83 113
AUDI 80 B3 Saloon (893, 894, 8A2) 2.0 quattro 1986 – 1991 1984 85 115
AUDI 80 B3 Saloon (893, 894, 8A2) 2.0 E 16V quattro 1986 – 1991 1984 101 137
AUDI 80 B3 Saloon (893, 894, 8A2) 2.0 E 1986 – 1991 1984 82 112
AUDI 80 B3 Saloon (893, 894, 8A2) 1.8 E quattro 1986 – 1991 1781 82 112
AUDI 80 B3 Saloon (893, 894, 8A2) 1.4 1986 – 1991 1400 48 65
AUDI 80 B3 Saloon (893, 894, 8A2) 1.6 1986 – 1991 1595 75 102
AUDI 90 B2 (813, 814, 853) 2.0 1984 – 1988 1994 85 115
AUDI 90 B2 (813, 814, 853) 2.2 1984 – 1988 2226 85 115
AUDI 90 B2 (813, 814, 853) 2.2 1984 – 1988 2226 100 136
AUDI 90 B2 (813, 814, 853) 2.2 E quattro 1984 – 1988 2226 100 136
AUDI 90 B2 (813, 814, 853) 2.2 E quattro 1984 – 1988 2226 88 120
AUDI 90 B2 (813, 814, 853) 2.0 1984 – 1988 1994 83 113
AUDI 90 B2 (813, 814, 853) 1.6 TD 1984 – 1988 1588 51 70
AUDI 90 B2 (813, 814, 853) 2.0 quattro 1984 – 1988 1994 85 116
AUDI A2 (8Z0) 1.4 TDI 2000 – 2005 1422 55 75
AUDI A2 (8Z0) 1.4 2000 – 2005 1390 55 75
AUDI A2 (8Z0) 1.2 TDI 2000 – 2005 1191 45 61
AUDI A2 (8Z0) 1.6 FSI 2000 – 2005 1598 81 110
AUDI A2 (8Z0) 1.4 TDI 2000 – 2005 1422 66 90
AUDI COUPE B2 (81, 855, 856) 1.8 1980 – 1988 1781 55 75
AUDI COUPE B2 (81, 855, 856) 1.8 GT 1980 – 1988 1781 65 88
AUDI COUPE B2 (81, 855, 856) 1.8 GT 1980 – 1988 1781 66 90
AUDI COUPE B2 (81, 855, 856) 1.8 GT 1980 – 1988 1781 79 107
AUDI COUPE B2 (81, 855, 856) 1.9 1980 – 1988 1921 85 115
AUDI COUPE B2 (81, 855, 856) 2.0 1980 – 1988 1994 85 115
AUDI COUPE B2 (81, 855, 856) 2.1 GT 1980 – 1988 2144 96 131
AUDI COUPE B2 (81, 855, 856) 2.2 GT 1980 – 1988 2226 85 115
AUDI COUPE B2 (81, 855, 856) 2.2 GT 1980 – 1988 2226 100 136
AUDI COUPE B2 (81, 855, 856) 2.2 quattro 1980 – 1988 2226 100 136
AUDI COUPE B2 (81, 855, 856) 2.2 quattro 1980 – 1988 2226 88 120
AUDI COUPE B2 (81, 855, 856) 1.8 GT 1980 – 1988 1781 82 112
AUDI COUPE B2 (81, 855, 856) 2.3 1980 – 1988 2309 98 133
AUDI COUPE B2 (81, 855, 856) 2.3 quattro 1980 – 1988 2309 98 133
AUDI COUPE B2 (81, 855, 856) 2.0 1980 – 1988 1994 83 113
AUDI COUPE B2 (81, 855, 856) 1.6 1980 – 1988 1588 55 75
AUDI COUPE B2 (81, 855, 856) 2.1 GT 1980 – 1988 2144 79 107
AUDI COUPE B2 (81, 855, 856) 1.8 GT quattro 1980 – 1988 1781 82 112
AUDI COUPE B2 (81, 855, 856) 2.2 GT 1980 – 1988 2226 88 120
