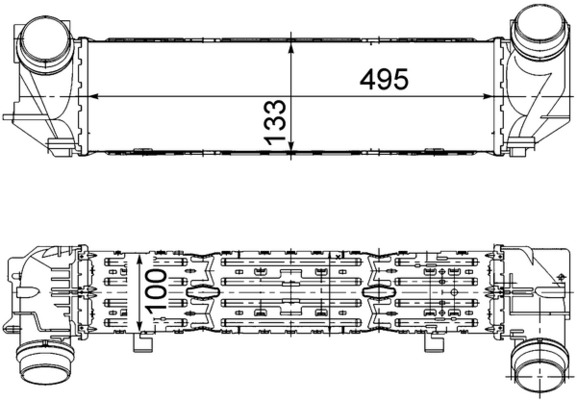

Specifications
| Cooling fins material Aluminium | |
| Core Depth (mm) | 100 |
| Core Length (mm) | 495 |
| Core Width (mm) | 133 |
| Net Weight (g) | 3255 |
| Packaging height (cm) | 28.00 |
| Packaging length (cm) | 76.0 |
| Packaging width (cm) | 25.50 |
| Radiator type Brazed cooling fins | |
| Water Tank Material (radiator) Aluminium | |
Cooling fins material Aluminium, Core Depth [mm] 100, Core Length [mm] 495, Core Width [mm] 133, Net Weight [g] 3255, Packaging height [cm] 28,00, Packaging length [cm] 76,0, Packaging width [cm] 25,50, Radiator type Brazed cooling fins, Water Tank Material (radiator) Aluminium
Fits: BMW, BMW (BRILLIANCE)
Fits: BMW, BMW (BRILLIANCE)
Supplier Cross-References
Interchangeable Part Numbers
OE Numbers — BMW (BRILLIANCE)
| Make | Model | Type / Engine | Years | CC | kW | HP |
|---|---|---|---|---|---|---|
| BMW | 5 (F10) | 520 d | 2009 – 2016 | 1995 | 151 | 205 |
| BMW | 5 (F10) | 520 d xDrive | 2009 – 2016 | 1995 | 151 | 205 |
| BMW | 5 (F10) | 525 d xDrive | 2009 – 2016 | 1995 | 155 | 211 |
| BMW | 5 (F10) | 525 d | 2009 – 2016 | 1995 | 155 | 211 |
| BMW | 5 (F10) | 520 i | 2009 – 2016 | 1997 | 120 | 163 |
| BMW | 5 (F10) | M 550 d xDrive | 2009 – 2016 | 2993 | 280 | 381 |
| BMW | 5 (F10) | 535 i xDrive | 2009 – 2016 | 2979 | 225 | 306 |
| BMW | 5 (F10) | 520 i | 2009 – 2016 | 1997 | 135 | 184 |
| BMW | 5 (F10) | 528 i | 2009 – 2016 | 1997 | 180 | 245 |
| BMW | 5 (F10) | 528 i xDrive | 2009 – 2016 | 1997 | 180 | 245 |
| BMW | 5 (F10) | 530 i | 2009 – 2016 | 2996 | 200 | 272 |
| BMW | 5 (F10) | 525 d | 2009 – 2016 | 1995 | 160 | 218 |
| BMW | 5 (F10) | 525 d xDrive | 2009 – 2016 | 1995 | 160 | 218 |
| BMW | 5 (F10) | 530 d | 2009 – 2016 | 2993 | 190 | 258 |
| BMW | 5 (F10) | 530 d xDrive | 2009 – 2016 | 2993 | 190 | 258 |
| BMW | 5 (F10) | 535 d | 2009 – 2016 | 2993 | 230 | 313 |
| BMW | 5 (F10) | 535 d xDrive | 2009 – 2016 | 2993 | 230 | 313 |
| BMW | 5 (F10) | ActiveHybrid | 2009 – 2016 | 2979 | 250 | 340 |
| BMW | 5 (F10) | M5 | 2009 – 2016 | 4395 | 412 | 560 |
| BMW | 5 (F10) | 523 i | 2009 – 2016 | 2497 | 150 | 204 |
| BMW | 5 (F10) | 523 i | 2009 – 2016 | 2996 | 150 | 204 |
| BMW | 5 (F10) | 528 i | 2009 – 2016 | 2996 | 190 | 258 |
| BMW | 5 (F10) | 535 i | 2009 – 2016 | 2979 | 225 | 306 |
| BMW | 5 (F10) | 550 i | 2009 – 2016 | 4395 | 300 | 408 |
| BMW | 5 (F10) | 520 d | 2009 – 2016 | 1995 | 135 | 184 |
| BMW | 5 (F10) | 525 d | 2009 – 2016 | 2993 | 150 | 204 |
| BMW | 5 (F10) | 530 d | 2009 – 2016 | 2993 | 180 | 245 |
| BMW | 5 (F10) | 550 i xDrive | 2009 – 2016 | 4395 | 300 | 408 |
| BMW | 5 (F10) | 535 d | 2009 – 2016 | 2993 | 220 | 299 |
| BMW | 5 (F10) | 528 i | 2009 – 2016 | 2996 | 179 | 243 |
| BMW | 5 (F10) | 535 i | 2009 – 2016 | 2979 | 224 | 305 |
| BMW | 5 (F10) | 550 i | 2009 – 2016 | 4395 | 298 | 405 |
| BMW | 5 (F10) | 550 i xDrive | 2009 – 2016 | 4395 | 298 | 405 |
| BMW | 5 (F10) | 550 i | 2009 – 2016 | 4395 | 330 | 449 |
| BMW | 5 (F10) | 550 i xDrive | 2009 – 2016 | 4395 | 330 | 449 |
| BMW | 5 (F10) | 520 d xDrive | 2009 – 2016 | 1995 | 135 | 184 |
| BMW | 5 (F10) | 518 d | 2009 – 2016 | 1995 | 105 | 143 |
| BMW | 5 (F10) | M5 Competition | 2009 – 2016 | 4395 | 423 | 575 |
| BMW | 5 (F10) | 518 d | 2009 – 2016 | 1995 | 110 | 150 |
| BMW | 5 (F10) | 520 d | 2009 – 2016 | 1995 | 140 | 190 |
| BMW | 5 (F10) | 520 d xDrive | 2009 – 2016 | 1995 | 140 | 190 |
| BMW | 5 (F10) | M5 30th Anniversary | 2009 – 2016 | 4395 | 441 | 600 |
| BMW | 5 (F10) | 550 i | 2009 – 2016 | 4395 | 332 | 452 |
| BMW | 5 (F10) | 550 i xDrive | 2009 – 2016 | 4395 | 332 | 452 |
| BMW | 5 (F10) | 535 i | 2009 – 2016 | 2979 | 240 | 326 |
| BMW | 5 (F10) | 535 i xDrive | 2009 – 2016 | 2979 | 240 | 326 |
| BMW | 5 (F10) | 520 d | 2009 – 2016 | 1995 | 120 | 163 |
| BMW | 5 (F10) | 518 d | 2009 – 2016 | 1995 | 100 | 136 |
| BMW | 5 (F10) | 520 d xDrive | 2009 – 2016 | 1995 | 120 | 163 |
| BMW | 5 (F10) | 530 d | 2009 – 2016 | 2993 | 210 | 286 |
| BMW | 5 (F10) | 530 d xDrive | 2009 – 2016 | 2993 | 210 | 286 |
| BMW | 5 (F10) | 520 i | 2009 – 2016 | 1592 | 125 | 170 |
| BMW | 5 (F10) | 520 d | 2009 – 2016 | 1995 | 147 | 200 |
| BMW | 5 (F10) | 520 d xDrive | 2009 – 2016 | 1995 | 147 | 200 |
| BMW | 5 (F10) | 520 d | 2009 – 2016 | 1995 | 100 | 136 |
| BMW | 5 (F10) | 520 d xDrive | 2009 – 2016 | 1995 | 100 | 136 |
| BMW | 5 (F10) | 520 d | 2009 – 2016 | 1995 | 155 | 211 |
| BMW | 5 (F10) | 520 d xDrive | 2009 – 2016 | 1995 | 155 | 211 |
| BMW | 5 (F10) | M5 | 2009 – 2016 | 4395 | 418 | 568 |
| BMW | 5 (F10) | 523 i | 2009 – 2016 | 2996 | 155 | 211 |
| BMW | 5 (F10) | 530 i | 2009 – 2016 | 2996 | 190 | 258 |
| BMW | 5 (F10) | 518 d | 2009 – 2016 | 1995 | 120 | 163 |
| BMW | 5 (F10) | 528 i | 2009 – 2016 | 1997 | 160 | 218 |
| BMW | 5 Touring (F11) | M 550 d xDrive | 2009 – 2017 | 2993 | 280 | 381 |
| BMW | 5 Touring (F11) | 520 i | 2009 – 2017 | 1997 | 135 | 184 |
| BMW | 5 Touring (F11) | 528 i | 2009 – 2017 | 1997 | 180 | 245 |
| BMW | 5 Touring (F11) | 528 i xDrive | 2009 – 2017 | 1997 | 180 | 245 |
| BMW | 5 Touring (F11) | 530 i | 2009 – 2017 | 2996 | 200 | 272 |
| BMW | 5 Touring (F11) | 550 i | 2009 – 2017 | 4395 | 300 | 408 |
| BMW | 5 Touring (F11) | 525 d | 2009 – 2017 | 1995 | 160 | 218 |
| BMW | 5 Touring (F11) | 525 d xDrive | 2009 – 2017 | 1995 | 160 | 218 |
| BMW | 5 Touring (F11) | 530 d | 2009 – 2017 | 2993 | 190 | 258 |
| BMW | 5 Touring (F11) | 530 d xDrive | 2009 – 2017 | 2993 | 190 | 258 |
| BMW | 5 Touring (F11) | 535 d | 2009 – 2017 | 2993 | 230 | 313 |
| BMW | 5 Touring (F11) | 535 d xDrive | 2009 – 2017 | 2993 | 230 | 313 |
| BMW | 5 Touring (F11) | 535 i xDrive | 2009 – 2017 | 2979 | 225 | 306 |
| BMW | 5 Touring (F11) | 523 i | 2009 – 2017 | 2996 | 150 | 204 |
| BMW | 5 Touring (F11) | 528 i | 2009 – 2017 | 2996 | 190 | 258 |
| BMW | 5 Touring (F11) | 535 i | 2009 – 2017 | 2979 | 225 | 306 |
| BMW | 5 Touring (F11) | 520 d | 2009 – 2017 | 1995 | 135 | 184 |
| BMW | 5 Touring (F11) | 525 d | 2009 – 2017 | 2993 | 150 | 204 |
| BMW | 5 Touring (F11) | 530 d | 2009 – 2017 | 2993 | 180 | 245 |
| BMW | 5 Touring (F11) | 535 d | 2009 – 2017 | 2993 | 220 | 299 |
| BMW | 5 Touring (F11) | 523 i | 2009 – 2017 | 2497 | 150 | 204 |
| BMW | 5 Touring (F11) | 550 i | 2009 – 2017 | 4395 | 330 | 449 |
| BMW | 5 Touring (F11) | 520 d xDrive | 2009 – 2017 | 1995 | 135 | 184 |
| BMW | 5 Touring (F11) | 518 d | 2009 – 2017 | 1995 | 105 | 143 |
| BMW | 5 Touring (F11) | 518 d | 2009 – 2017 | 1995 | 110 | 150 |
| BMW | 5 Touring (F11) | 520 d | 2009 – 2017 | 1995 | 140 | 190 |
| BMW | 5 Touring (F11) | 520 d xDrive | 2009 – 2017 | 1995 | 140 | 190 |
| BMW | 5 Touring (F11) | 520 i | 2009 – 2017 | 1997 | 120 | 163 |
| BMW | 5 Touring (F11) | 520 d | 2009 – 2017 | 1995 | 120 | 163 |
| BMW | 5 Touring (F11) | 518 d | 2009 – 2017 | 1995 | 100 | 136 |
| BMW | 5 Touring (F11) | 520 d xDrive | 2009 – 2017 | 1995 | 120 | 163 |
| BMW | 5 Touring (F11) | 525 d | 2009 – 2017 | 1995 | 155 | 211 |
| BMW | 5 Touring (F11) | 525 d xDrive | 2009 – 2017 | 1995 | 155 | 211 |
| BMW | 5 Touring (F11) | 535 i | 2009 – 2017 | 2979 | 240 | 326 |
| BMW | 5 Touring (F11) | 535 i xDrive | 2009 – 2017 | 2979 | 240 | 326 |
| BMW | 5 Touring (F11) | 530 d | 2009 – 2017 | 2993 | 210 | 286 |
| BMW | 5 Touring (F11) | 530 d xDrive | 2009 – 2017 | 2993 | 210 | 286 |
| BMW | 5 Touring (F11) | 520 d | 2009 – 2017 | 1995 | 155 | 211 |
| BMW | 5 Touring (F11) | 520 d xDrive | 2009 – 2017 | 1995 | 155 | 211 |
| BMW | 5 Touring (F11) | 520 d | 2009 – 2017 | 1995 | 147 | 200 |
| BMW | 5 Touring (F11) | 520 d xDrive | 2009 – 2017 | 1995 | 147 | 200 |
| BMW | 5 Touring (F11) | 520 d xDrive | 2009 – 2017 | 1995 | 100 | 136 |
| BMW | 5 Touring (F11) | 520 d | 2009 – 2017 | 1995 | 100 | 136 |
| BMW | 5 Touring (F11) | 518 d | 2009 – 2017 | 1995 | 120 | 163 |
| BMW | 5 Touring (F11) | 530 i | 2009 – 2017 | 2996 | 190 | 258 |
| BMW | 5 Touring (F11) | 520 d | 2009 – 2017 | 1995 | 151 | 205 |
| BMW | 5 Touring (F11) | 520 d xDrive | 2009 – 2017 | 1995 | 151 | 205 |
