Charge Air Cooler
Air Supply

Charge Air Cooler

Part No. CI 486 000S · SKU CI 486 000S-MAHLE
₱13,700.00
In stock — available to order
Genuine & OEM parts Nationwide delivery Easy returns

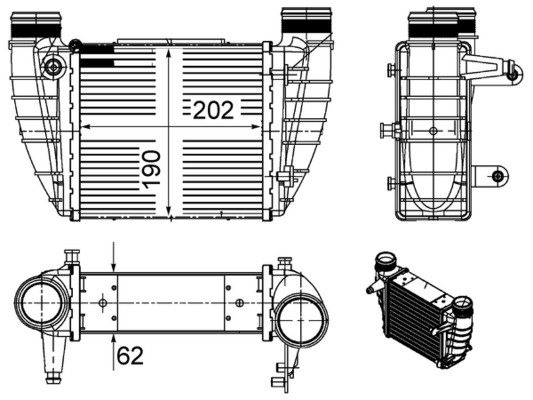

Specifications

Cooling fins material Aluminium
Core Depth (mm)62
Core Length (mm)202
Core Width (mm)190
Net Weight (g)1621
Packaging height (cm)20.00
Packaging length (cm)39.0
Packaging width (cm)28.00
Radiator type Brazed cooling fins
Water Tank Material (radiator) Plastic
Cooling fins material Aluminium, Core Depth [mm] 62, Core Length [mm] 202, Core Width [mm] 190, Net Weight [g] 1621, Packaging height [cm] 20,00, Packaging length [cm] 39,0, Packaging width [cm] 28,00, Radiator type Brazed cooling fins, Water Tank Material (radiator) Plastic
Fits: AUDI, SEAT

Supplier Cross-References

MAHLECI486000S HELLA8ML376988044 AVA QUALITY COOLINGAI4364 MAGNETI MARELLI351319204850 VAN WEZEL3004364 NISSENS96392

Interchangeable Part Numbers

AHE702068 FRIGAIR7103125 JDEUSM801035A NISSENS96426 NRF30378 VALEO818325 VAN WEZEL03004364

OE Numbers — AUDI

8E0145806Q
MakeModelType / Engine YearsCCkWHP
AUDI A3 Sportback (8PA) RS3 quattro 2004 – 2015 2480 250 340
AUDI A3 Sportback (8PA) 2.0 TDI quattro 2004 – 2015 1968 125 170
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 125 170
AUDI A3 Sportback (8PA) 2.0 TDI 16V quattro 2004 – 2015 1968 103 140
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 103 140
AUDI A3 Sportback (8PA) 2.0 TDI quattro 2004 – 2015 1968 103 140
AUDI A3 Sportback (8PA) 1.8 TFSI 2004 – 2015 1798 118 160
AUDI A3 Sportback (8PA) 1.4 TFSI 2004 – 2015 1390 92 125
AUDI A3 Sportback (8PA) S3 quattro 2004 – 2015 1984 195 265
AUDI A3 Sportback (8PA) 1.8 TFSI quattro 2004 – 2015 1798 118 160
AUDI A3 Sportback (8PA) 1.6 TDI 2004 – 2015 1598 66 90
AUDI A3 Sportback (8PA) 1.6 TDI 2004 – 2015 1598 77 105
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 120 163
AUDI A3 Sportback (8PA) 1.2 TSI 2004 – 2015 1197 77 105
AUDI A3 Sportback (8PA) S3 quattro 2004 – 2015 1984 188 256
AUDI A3 Sportback (8PA) 2.0 FSI 2004 – 2015 1984 110 150
AUDI A3 Sportback (8PA) 1.6 FSI 2004 – 2015 1598 85 115
AUDI A3 Sportback (8PA) 3.2 V6 quattro 2004 – 2015 3189 184 250
AUDI A3 Sportback (8PA) 1.8 FSI 2004 – 2015 1781 110 150
AUDI A3 Sportback (8PA) 1.6 E-Power 2004 – 2015 1595 75 102
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 100 136
AUDI A3 Sportback (8PA) 2.0 TFSI quattro 2004 – 2015 1984 147 200
AUDI A3 Sportback (8PA) 1.6 2004 – 2015 1595 75 102
AUDI A3 Sportback (8PA) 2.0 TFSI 2004 – 2015 1984 147 200
AUDI A3 Sportback (8PA) 2.0 TDI 16V 2004 – 2015 1968 103 140
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 104 141
AUDI A3 Sportback (8PA) 1.9 TDI 2004 – 2015 1896 77 105
AUDI A4 B7 (8EC) 2.0 TDI 2004 – 2009 1968 125 170
AUDI A4 B7 (8EC) 3.0 TDI quattro 2004 – 2009 2967 171 233
AUDI A4 B7 (8EC) 2.7 TDI 2004 – 2009 2698 132 180
AUDI A4 B7 (8EC) 2.0 TDI quattro 2004 – 2009 1968 125 170
AUDI A4 B7 (8EC) 3.0 quattro 2004 – 2009 2976 160 218
AUDI A4 B7 (8EC) 1.8 T 2004 – 2009 1781 125 170
AUDI A4 B7 (8EC) 2.0 TDI quattro 2004 – 2009 1968 103 140
AUDI A4 B7 (8EC) 3.0 2004 – 2009 2976 160 218
AUDI A4 B7 (8EC) 2.0 TDI 2004 – 2009 1968 103 140
AUDI A4 B7 (8EC) 2.0 TFSI 2004 – 2009 1984 125 170
AUDI A4 B7 (8EC) 2.0 TDI 2004 – 2009 1968 89 121
AUDI A4 B7 (8EC) 2.0 TDI 2004 – 2009 1968 120 163
AUDI A4 B7 (8EC) 2.0 TDI quattro 2004 – 2009 1968 120 163
AUDI A4 B7 (8EC) 2.0 TDI 2004 – 2009 1968 93 126
AUDI A4 B7 (8EC) 2.7 TDI 2004 – 2009 2698 120 163
AUDI A4 B7 (8EC) 2.0 FSI 2004 – 2009 1984 110 150
AUDI A4 B7 (8EC) 3.2 FSI 2004 – 2009 3123 190 258
AUDI A4 B7 (8EC) 2.0 TFSI 2004 – 2009 1984 149 203
AUDI A4 B7 (8EC) S4 quattro 2004 – 2009 4163 253 344
AUDI A4 B7 (8EC) 2.0 TFSI 2004 – 2009 1984 147 200
AUDI A4 B7 (8EC) 2.0 TFSI quattro 2004 – 2009 1984 147 200
AUDI A4 B7 (8EC) 3.2 FSI 2004 – 2009 3123 188 255
AUDI A4 B7 (8EC) 3.2 FSI quattro 2004 – 2009 3123 188 255
AUDI A4 B7 (8EC) 2.0 TDI 2004 – 2009 1968 100 136
AUDI A4 B7 (8EC) 2.0 TDI 16V 2004 – 2009 1968 103 140
AUDI A4 B7 (8EC) 3.0 TDI quattro 2004 – 2009 2967 150 204
AUDI A4 B7 (8EC) 1.8 T 2004 – 2009 1781 120 163
AUDI A4 B7 (8EC) 1.8 T quattro 2004 – 2009 1781 120 163
AUDI A4 B7 (8EC) 2.0 2004 – 2009 1984 96 130
AUDI A4 B7 (8EC) 1.6 2004 – 2009 1595 75 102
AUDI A4 B7 (8EC) 1.9 TDI 2004 – 2009 1896 85 116
AUDI A4 B7 (8EC) 2.5 TDI 2004 – 2009 2496 120 163
AUDI A4 B7 (8EC) 2.0 TFSI quattro 2004 – 2009 1984 162 220
AUDI A4 B7 (8EC) RS4 quattro 2004 – 2009 4163 309 420
AUDI A4 B7 (8EC) 2.0 TFSI 2004 – 2009 1984 162 220
AUDI A4 B7 Avant (8ED) 2.0 TDI quattro 2004 – 2008 1968 125 170
AUDI A4 B7 Avant (8ED) 1.6 2004 – 2008 1595 75 102
AUDI A4 B7 Avant (8ED) 2.7 TDi 2004 – 2008 2698 120 163
AUDI A4 B7 Avant (8ED) 3.0 TDI quattro 2004 – 2008 2967 171 233
AUDI A4 B7 Avant (8ED) 2.0 TDI 2004 – 2008 1968 93 126
AUDI A4 B7 Avant (8ED) 2.0 TDI 2004 – 2008 1968 100 136
AUDI A4 B7 Avant (8ED) 2.7 TDI 2004 – 2008 2698 132 180
AUDI A4 B7 Avant (8ED) 2.0 2004 – 2008 1984 96 130
AUDI A4 B7 Avant (8ED) 2.0 TDI 2004 – 2008 1968 125 170
AUDI A4 B7 Avant (8ED) RS4 quattro 2004 – 2008 4163 309 420
AUDI A4 B7 Avant (8ED) 2.0 TFSI quattro 2004 – 2008 1984 162 220
AUDI A4 B7 Avant (8ED) 2.0 TFSI 2004 – 2008 1984 162 220
AUDI A4 B7 Avant (8ED) 2.0 TDI quattro 2004 – 2008 1968 103 140
AUDI A4 B7 Avant (8ED) S4 quattro 2004 – 2008 4163 253 344
AUDI A4 B7 Avant (8ED) 3.0 2004 – 2008 2976 160 218
AUDI A4 B7 Avant (8ED) 2.5 TDI 2004 – 2008 2496 120 163
AUDI A4 B7 Avant (8ED) 2.0 TDI 16V 2004 – 2008 1968 103 140
AUDI A4 B7 Avant (8ED) 2.0 TDI 2004 – 2008 1968 103 140
AUDI A4 B7 Avant (8ED) 1.9 TDI 2004 – 2008 1896 85 116
AUDI A4 B7 Avant (8ED) 3.2 FSI quattro 2004 – 2008 3123 188 255
AUDI A4 B7 Avant (8ED) 2.0 TFSI 2004 – 2008 1984 125 170
AUDI A4 B7 Avant (8ED) 3.2 FSI 2004 – 2008 3123 188 255
AUDI A4 B7 Avant (8ED) 3.0 quattro 2004 – 2008 2976 160 218
AUDI A4 B7 Avant (8ED) 3.0 TDI quattro 2004 – 2008 2967 150 204
AUDI A4 B7 Avant (8ED) 2.0 TFSI quattro 2004 – 2008 1984 147 200
AUDI A4 B7 Avant (8ED) 2.0 TDI 2004 – 2008 1968 89 121
AUDI A4 B7 Avant (8ED) 2.0 TFSI 2004 – 2008 1984 147 200
AUDI A4 B7 Avant (8ED) 1.8 T quattro 2004 – 2008 1781 120 163
AUDI A4 B7 Avant (8ED) 2.0 TDI 2004 – 2008 1968 120 163
AUDI A4 B7 Avant (8ED) 2.0 TDI quattro 2004 – 2008 1968 120 163
AUDI A4 B7 Avant (8ED) 1.8 T 2004 – 2008 1781 120 163
