Specifications

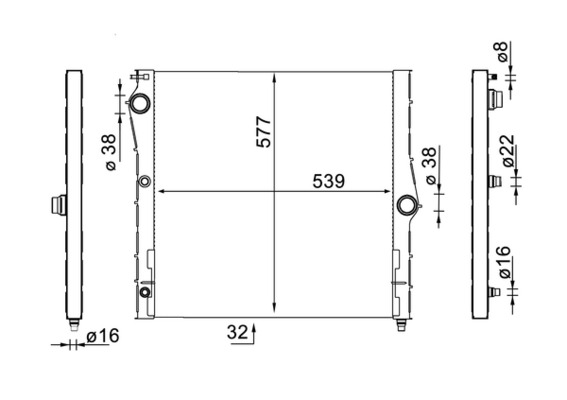

| Core Depth (mm) | 32 |
| Core Length (mm) | 577 |
| Core Width (mm) | 539 |
| Net Weight (g) | 5115 |
| Packaging height (cm) | 69.50 |
| Packaging length (cm) | 78.0 |
| Packaging width (cm) | 13.00 |
| Radiator type Brazed cooling fins | |
| Water Tank Material (radiator) Plastic | |
Core Depth [mm] 32, Core Length [mm] 577, Core Width [mm] 539, Net Weight [g] 5115, Packaging height [cm] 69,50, Packaging length [cm] 78,0, Packaging width [cm] 13,00, Radiator type Brazed cooling fins, Water Tank Material (radiator) Plastic
Fits: BMW
Fits: BMW
Supplier Cross-References
Interchangeable Part Numbers
OE Numbers — BMW
| Make | Model | Type / Engine | Years | CC | kW | HP |
|---|---|---|---|---|---|---|
| BMW | X5 (E70) | xDrive 40 d | 2006 – 2013 | 2993 | 225 | 306 |
| BMW | X5 (E70) | 3.0 3.0d | 2006 – 2013 | 2993 | 160 | 218 |
| BMW | X5 (E70) | M | 2006 – 2013 | 4395 | 414 | 563 |
| BMW | X5 (E70) | xDrive 30 i | 2006 – 2013 | 2996 | 194 | 264 |
| BMW | X5 (E70) | xDrive 30 i | 2006 – 2013 | 2996 | 172 | 234 |
| BMW | X5 (E70) | xDrive 40 i | 2006 – 2013 | 2979 | 225 | 306 |
| BMW | X5 (E70) | xDrive 50 i | 2006 – 2013 | 4395 | 298 | 405 |
| BMW | X5 (E70) | xDrive 30 d | 2006 – 2013 | 2993 | 155 | 211 |
| BMW | X5 (E70) | M 50 d | 2006 – 2013 | 2993 | 280 | 381 |
| BMW | X5 (E70) | xDrive 35 i | 2006 – 2013 | 2979 | 235 | 320 |
| BMW | X5 (E70) | 3.0 3.0d | 2006 – 2013 | 2993 | 155 | 211 |
| BMW | X5 (E70) | M | 2006 – 2013 | 4395 | 408 | 555 |
| BMW | X5 (E70) | xDrive 35 d | 2006 – 2013 | 2993 | 210 | 286 |
| BMW | X5 (E70) | xDrive 30 d | 2006 – 2013 | 2993 | 173 | 235 |
| BMW | X5 (E70) | xDrive 48 i | 2006 – 2013 | 4799 | 261 | 355 |
| BMW | X5 (E70) | xDrive 30 i | 2006 – 2013 | 2996 | 200 | 272 |
| BMW | X5 (E70) | 3.0 sd | 2006 – 2013 | 2993 | 210 | 286 |
| BMW | X5 (E70) | xDrive 30 d | 2006 – 2013 | 2993 | 180 | 245 |
| BMW | X5 (E70) | xDrive 35 i | 2006 – 2013 | 2979 | 225 | 306 |
| BMW | X5 (E70) | xDrive 50 i | 2006 – 2013 | 4395 | 300 | 408 |
| BMW | X5 (E70) | 3.0 si | 2006 – 2013 | 2996 | 200 | 272 |
| BMW | X5 (E70) | 3.0 d | 2006 – 2013 | 2993 | 173 | 235 |
| BMW | X5 (E70) | 4.8 i xDrive | 2006 – 2013 | 4799 | 261 | 355 |
| BMW | X5 (F15, F85) | xDrive 25 d | 2013 – 2018 | 1995 | 160 | 218 |
| BMW | X5 (F15, F85) | sDrive 35 i | 2013 – 2018 | 2979 | 225 | 306 |
| BMW | X5 (F15, F85) | M | 2013 – 2018 | 4395 | 423 | 575 |
| BMW | X5 (F15, F85) | xDrive 30 d | 2013 – 2018 | 2993 | 204 | 277 |
| BMW | X5 (F15, F85) | sDrive 25 d | 2013 – 2018 | 1995 | 170 | 231 |
| BMW | X5 (F15, F85) | xDrive 25 d | 2013 – 2018 | 1995 | 170 | 231 |
| BMW | X5 (F15, F85) | xDrive 40e | 2013 – 2018 | 1997 | 230 | 313 |
| BMW | X5 (F15, F85) | xDrive 35 i | 2013 – 2018 | 2979 | 240 | 326 |
| BMW | X5 (F15, F85) | xDrive 40e | 2013 – 2018 | 1997 | 205 | 279 |
| BMW | X5 (F15, F85) | xDrive 50 i | 2013 – 2018 | 4395 | 332 | 452 |
| BMW | X5 (F15, F85) | sDrive 25 d | 2013 – 2018 | 1995 | 155 | 211 |
| BMW | X5 (F15, F85) | xDrive 25 d | 2013 – 2018 | 1995 | 155 | 211 |
| BMW | X5 (F15, F85) | xDrive 28 i | 2013 – 2018 | 1997 | 180 | 245 |
| BMW | X5 (F15, F85) | xDrive 50 i | 2013 – 2018 | 3982 | 300 | 408 |
| BMW | X5 (F15, F85) | xDrive 40 d | 2013 – 2018 | 2993 | 230 | 313 |
| BMW | X5 (F15, F85) | sDrive 25 d | 2013 – 2018 | 1995 | 160 | 218 |
| BMW | X5 (F15, F85) | xDrive 35 i | 2013 – 2018 | 2979 | 225 | 306 |
| BMW | X5 (F15, F85) | xDrive 25 d | 2013 – 2018 | 2993 | 160 | 218 |
| BMW | X5 (F15, F85) | xDrive 30 d | 2013 – 2018 | 2993 | 183 | 249 |
| BMW | X5 (F15, F85) | xDrive 50 i | 2013 – 2018 | 4395 | 330 | 449 |
| BMW | X5 (F15, F85) | xDrive 30 d | 2013 – 2018 | 2993 | 210 | 286 |
| BMW | X5 (F15, F85) | M 50 d | 2013 – 2018 | 2993 | 280 | 381 |
| BMW | X5 (F15, F85) | xDrive 30 d | 2013 – 2018 | 2993 | 190 | 258 |
| BMW | X6 (E71, E72) | xDrive 30 d | 2007 – 2015 | 2993 | 173 | 235 |
| BMW | X6 (E71, E72) | ActiveHybrid | 2007 – 2015 | 4395 | 357 | 485 |
| BMW | X6 (E71, E72) | xDrive 40 d | 2007 – 2015 | 2993 | 225 | 306 |
| BMW | X6 (E71, E72) | xDrive 30 d | 2007 – 2015 | 2993 | 180 | 245 |
| BMW | X6 (E71, E72) | xDrive 35 i | 2007 – 2015 | 2979 | 224 | 305 |
| BMW | X6 (E71, E72) | M | 2007 – 2015 | 4395 | 414 | 563 |
| BMW | X6 (E71, E72) | xDrive 50 i | 2007 – 2015 | 4395 | 300 | 408 |
| BMW | X6 (E71, E72) | xDrive 35 d | 2007 – 2015 | 2993 | 210 | 286 |
| BMW | X6 (E71, E72) | xDrive 35 i | 2007 – 2015 | 2979 | 225 | 306 |
| BMW | X6 (E71, E72) | M | 2007 – 2015 | 4395 | 408 | 555 |
| BMW | X6 (E71, E72) | xDrive 50 i | 2007 – 2015 | 4395 | 330 | 449 |
| BMW | X6 (E71, E72) | xDrive 35 i | 2007 – 2015 | 2979 | 240 | 326 |
| BMW | X6 (E71, E72) | xDrive 35 i | 2007 – 2015 | 2979 | 235 | 320 |
| BMW | X6 (E71, E72) | M 50 d | 2007 – 2015 | 2993 | 280 | 381 |
| BMW | X6 (E71, E72) | xDrive 30 d | 2007 – 2015 | 2993 | 155 | 211 |
| BMW | X6 (F16, F86) | xDrive 28 i | 2014 – 2019 | 1997 | 180 | 245 |
| BMW | X6 (F16, F86) | xDrive 30 d | 2014 – 2019 | 2993 | 160 | 218 |
| BMW | X6 (F16, F86) | xDrive 30 d | 2014 – 2019 | 2993 | 183 | 249 |
| BMW | X6 (F16, F86) | M | 2014 – 2019 | 4395 | 423 | 575 |
| BMW | X6 (F16, F86) | xDrive 30 d | 2014 – 2019 | 2993 | 190 | 258 |
| BMW | X6 (F16, F86) | xDrive 50 i | 2014 – 2019 | 4395 | 330 | 449 |
| BMW | X6 (F16, F86) | M 50 d | 2014 – 2019 | 2993 | 280 | 381 |
| BMW | X6 (F16, F86) | xDrive 30 d | 2014 – 2019 | 2993 | 155 | 211 |
| BMW | X6 (F16, F86) | xDrive 50 i | 2014 – 2019 | 3982 | 300 | 408 |
| BMW | X6 (F16, F86) | xDrive 35 i | 2014 – 2019 | 2979 | 225 | 306 |
| BMW | X6 (F16, F86) | xDrive 40 d | 2014 – 2019 | 2993 | 230 | 313 |
| BMW | X6 (F16, F86) | sDrive 35 i | 2014 – 2019 | 2979 | 225 | 306 |
| BMW | X6 (F16, F86) | xDrive 35 i | 2014 – 2019 | 2979 | 240 | 326 |
| BMW | X6 (F16, F86) | xDrive 30 d | 2014 – 2019 | 2993 | 204 | 277 |
