Cooling System

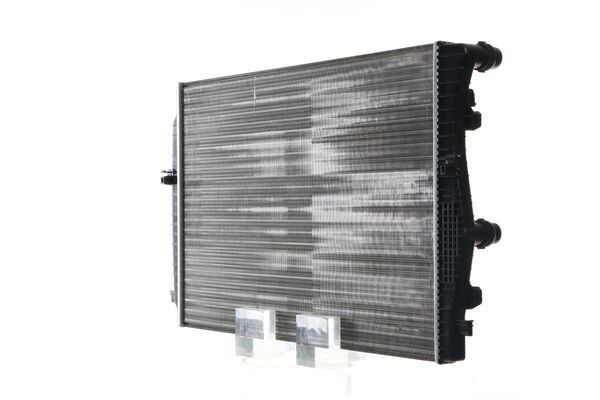

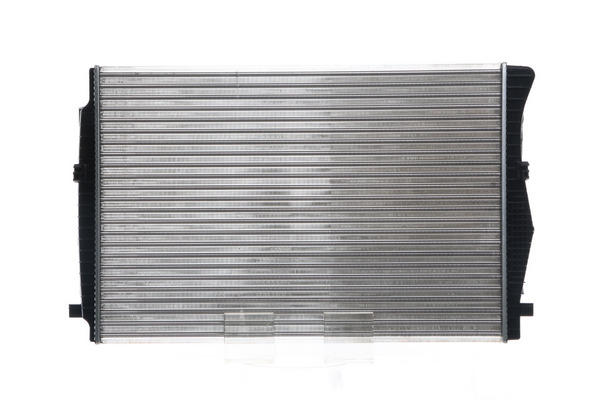

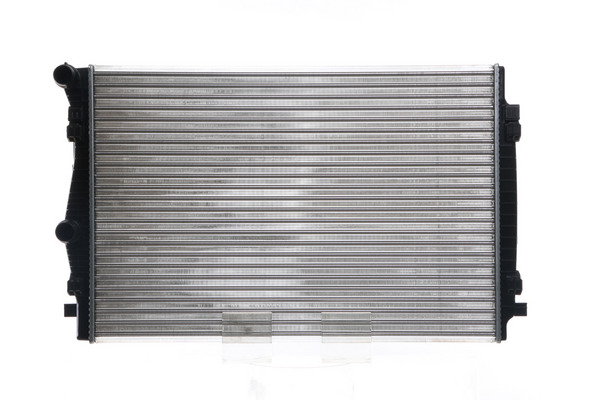

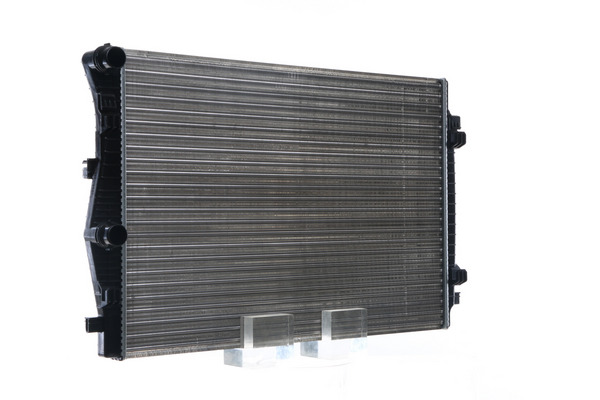

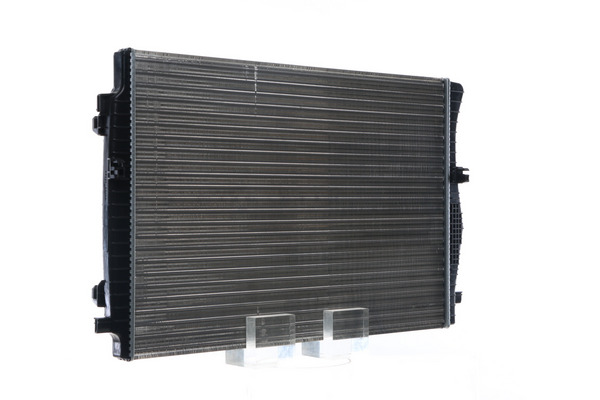

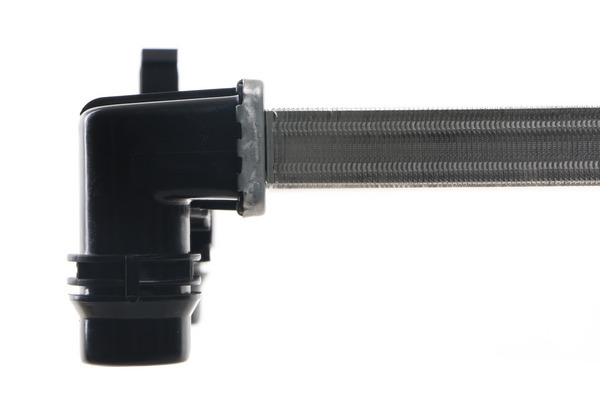

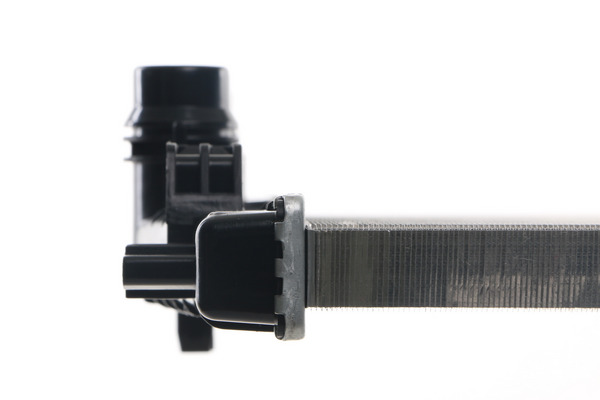

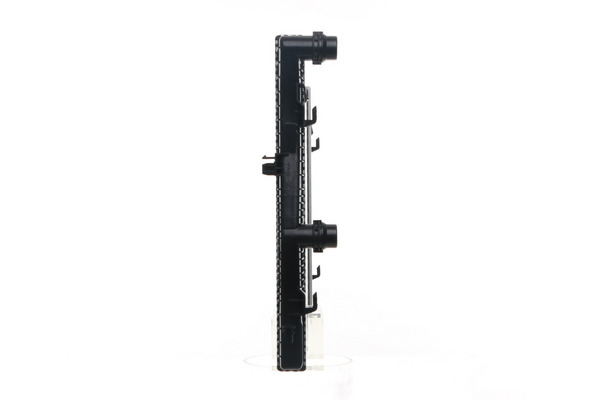

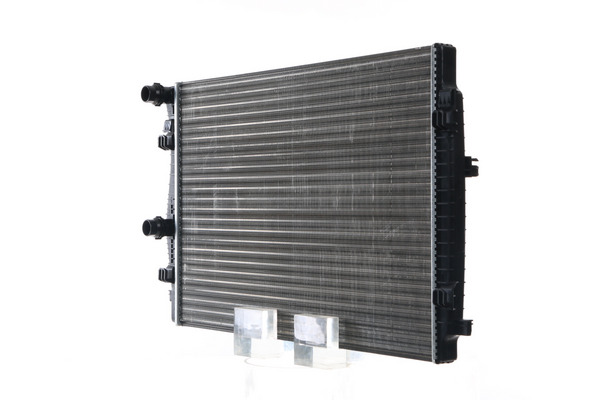

Radiator, engine cooling

Part No. CR 2055 001S · SKU CR 2055 001S-MAHLE
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Climate Zones for hot climate zones
Climate Zones for tropical climate zones
Core Depth (mm)24
Core Length (mm)650
Core Width (mm)453
Net Weight (g)2708
Packaging height (cm)12.30
Packaging length (cm)83.7
Packaging width (cm)50.80
Radiator type Mechanically jointed cooling fins
Water Tank Material (radiator) Plastic
Climate Zones for hot climate zones, Climate Zones for tropical climate zones, Core Depth [mm] 24, Core Length [mm] 650, Core Width [mm] 453, Net Weight [g] 2708, Packaging height [cm] 12,30, Packaging length [cm] 83,7, Packaging width [cm] 50,80, Radiator type Mechanically jointed cooling fins, Water Tank Material (radiator) Plastic
Fits: AUDI, SEAT, SKODA, VW

Interchangeable Part Numbers

AHE102158 AHE102158/A AKS DASIS480093N AUTOGAMMA107199 AVA QUALITY COOLINGVNA2344 AVA QUALITY COOLINGVW2344 AVA QUALITY COOLINGVWA2344 DENSODRM02044 FRIGAIR0110.3167 JP GROUP1114208900 NISSENS65304 NRF58392 VALEO716900 VALEO735559 VAN WEZEL58002344

OE Numbers — AUDI

5Q0121251EQ 5Q0121251GR 5WA121251D

OE Numbers — SEAT

5Q0121251ES 5Q0121251GL

OE Numbers — VW

5QD121251Q 5QM121251F
MakeModelType / Engine YearsCCkWHP
AUDI A3 (8V1, 8VK) 1.4 TFSI 2012 – 2020 1395 90 122
AUDI A3 (8V1, 8VK) 1.8 TFSI 2012 – 2020 1798 132 180
AUDI A3 (8V1, 8VK) 2.0 TDI 2012 – 2020 1968 105 143
AUDI A3 (8V1, 8VK) 2.0 TDI 2012 – 2020 1968 110 150
AUDI A3 (8V1, 8VK) 1.8 TFSI quattro 2012 – 2020 1798 132 180
AUDI A3 (8V1, 8VK) 1.6 TDI 2012 – 2020 1598 77 105
AUDI A3 (8V1, 8VK) 2.0 TDI 2012 – 2020 1968 81 110
AUDI A3 (8V1, 8VK) 2.0 TDI quattro 2012 – 2020 1968 110 150
AUDI A3 (8V1, 8VK) 2.0 TDI 2012 – 2020 1968 135 184
AUDI A3 (8V1, 8VK) 2.0 TDI quattro 2012 – 2020 1968 135 184
AUDI A3 (8V1, 8VK) 1.4 TFSI 2012 – 2020 1395 103 140
AUDI A3 (8V1, 8VK) 1.2 TFSI 2012 – 2020 1197 77 105
AUDI A3 (8V1, 8VK) S3 quattro 2012 – 2020 1984 206 280
AUDI A3 (8V1, 8VK) S3 quattro 2012 – 2020 1984 221 300
AUDI A3 (8V1, 8VK) 2.0 TDI 2012 – 2020 1968 100 136
AUDI A3 (8V1, 8VK) 1.6 TDI 2012 – 2020 1598 81 110
AUDI A3 (8V1, 8VK) 1.2 TFSI 2012 – 2020 1197 81 110
AUDI A3 (8V1, 8VK) 1.4 TFSI 2012 – 2020 1395 92 125
AUDI A3 (8V1, 8VK) 1.4 TSI 2012 – 2020 1395 110 150
AUDI A3 (8V1, 8VK) S3 quattro 2012 – 2020 1984 210 286
AUDI A3 (8V1, 8VK) 1.0 TFSI 2012 – 2020 999 85 115
AUDI A3 (8V1, 8VK) S3 quattro 2012 – 2020 1984 228 310
AUDI A3 (8V1, 8VK) 2.0 TFSI quattro 2012 – 2020 1984 140 190
AUDI A3 (8V1, 8VK) 2.0 TFSI 2012 – 2020 1984 140 190
AUDI A3 (8V1, 8VK) S3 quattro 2012 – 2020 1984 213 290
AUDI A3 (8V1, 8VK) 1.6 TDI 2012 – 2020 1598 85 115
AUDI A3 (8V1, 8VK) 1.5 TFSI 2012 – 2020 1498 110 150
AUDI A3 Convertible (8V7, 8VE) 1.4 TFSI 2013 – 2021 1395 103 140
AUDI A3 Convertible (8V7, 8VE) 1.8 TFSI 2013 – 2021 1798 132 180
AUDI A3 Convertible (8V7, 8VE) 2.0 TDI 2013 – 2021 1968 110 150
AUDI A3 Convertible (8V7, 8VE) 1.6 TDI 2013 – 2021 1598 81 110
AUDI A3 Convertible (8V7, 8VE) 1.8 TFSI quattro 2013 – 2021 1798 132 180
AUDI A3 Convertible (8V7, 8VE) 2.0 TDI quattro 2013 – 2021 1968 110 150
AUDI A3 Convertible (8V7, 8VE) 1.4 TFSI 2013 – 2021 1395 92 125
AUDI A3 Convertible (8V7, 8VE) S3 quattro 2013 – 2021 1984 221 300
AUDI A3 Convertible (8V7, 8VE) 2.0 TDI 2013 – 2021 1968 135 184
AUDI A3 Convertible (8V7, 8VE) 2.0 TDI quattro 2013 – 2021 1968 135 184
AUDI A3 Convertible (8V7, 8VE) 1.8 TFSI 2013 – 2021 1798 125 170
AUDI A3 Convertible (8V7, 8VE) 1.4 TSI 2013 – 2021 1395 110 150
AUDI A3 Convertible (8V7, 8VE) 2.0 TDI 2013 – 2021 1968 100 136
AUDI A3 Convertible (8V7, 8VE) S3 quattro 2013 – 2021 1984 210 286
AUDI A3 Convertible (8V7, 8VE) 2.0 TFSI quattro 2013 – 2021 1984 162 220
AUDI A3 Convertible (8V7, 8VE) 1.4 TFSI 2013 – 2021 1395 85 115
AUDI A3 Convertible (8V7, 8VE) S3 quattro 2013 – 2021 1984 228 310
AUDI A3 Convertible (8V7, 8VE) 2.0 TFSI quattro 2013 – 2021 1984 140 190
AUDI A3 Convertible (8V7, 8VE) 2.0 TFSI 2013 – 2021 1984 140 190
AUDI A3 Convertible (8V7, 8VE) S3 quattro 2013 – 2021 1984 213 290
AUDI A3 Convertible (8V7, 8VE) 1.6 TDI 2013 – 2021 1598 85 115
AUDI A3 Convertible (8V7, 8VE) 1.5 TFSI 2013 – 2021 1498 110 150
AUDI A3 Convertible (8V7, 8VE) 2.0 TFSI 2013 – 2021 1984 137 186
AUDI A3 Convertible (8V7, 8VE) 35 TFSI 2013 – 2021 1498 110 150
AUDI A3 Convertible (8V7, 8VE) 40 TFSI 2013 – 2021 1984 140 190
AUDI A3 Convertible (8V7, 8VE) 40 TFSI quattro 2013 – 2021 1984 140 190
AUDI A3 Convertible (8V7, 8VE) 2.0 TFSI quattro 2013 – 2021 1984 170 231
AUDI A3 Convertible (8V7, 8VE) 1.8 40 TFSI 2013 – 2021 1798 132 180
AUDI A3 Limousine (8VS, 8VM) 1.4 TFSI 2013 – 2021 1395 90 122
AUDI A3 Limousine (8VS, 8VM) S3 quattro 2013 – 2021 1984 221 300
AUDI A3 Limousine (8VS, 8VM) 2.0 TDI 2013 – 2021 1968 105 143
AUDI A3 Limousine (8VS, 8VM) 1.2 TFSI 2013 – 2021 1197 77 105
AUDI A3 Limousine (8VS, 8VM) 1.6 TDI 2013 – 2021 1598 77 105
AUDI A3 Limousine (8VS, 8VM) 1.4 TFSI 2013 – 2021 1395 92 125
AUDI A3 Limousine (8VS, 8VM) 1.8 TFSI quattro 2013 – 2021 1798 132 180
AUDI A3 Limousine (8VS, 8VM) S3 quattro 2013 – 2021 1984 206 280
AUDI A3 Limousine (8VS, 8VM) 1.4 TFSI 2013 – 2021 1395 103 140
AUDI A3 Limousine (8VS, 8VM) 1.8 TFSI 2013 – 2021 1798 132 180
AUDI A3 Limousine (8VS, 8VM) 2.0 TDI 2013 – 2021 1968 81 110
AUDI A3 Limousine (8VS, 8VM) 2.0 TDI 2013 – 2021 1968 110 150
AUDI A3 Limousine (8VS, 8VM) 2.0 TDI 2013 – 2021 1968 100 136
AUDI A3 Limousine (8VS, 8VM) 2.0 TDI quattro 2013 – 2021 1968 110 150
AUDI A3 Limousine (8VS, 8VM) 1.8 TFSI 2013 – 2021 1798 125 170
AUDI A3 Limousine (8VS, 8VM) 2.0 TDI 2013 – 2021 1968 135 184
AUDI A3 Limousine (8VS, 8VM) 2.0 TDI quattro 2013 – 2021 1968 135 184
AUDI A3 Limousine (8VS, 8VM) 1.2 TFSI 2013 – 2021 1197 81 110
AUDI A3 Limousine (8VS, 8VM) 1.4 TSI 2013 – 2021 1395 110 150
AUDI A3 Limousine (8VS, 8VM) 1.6 TDI 2013 – 2021 1598 81 110
AUDI A3 Limousine (8VS, 8VM) S3 quattro 2013 – 2021 1984 210 286
AUDI A3 Limousine (8VS, 8VM) 2.0 TFSI quattro 2013 – 2021 1984 162 220
AUDI A3 Limousine (8VS, 8VM) S3 quattro 2013 – 2021 1984 215 292
AUDI A3 Limousine (8VS, 8VM) 1.6 TDI quattro 2013 – 2021 1598 81 110
AUDI A3 Limousine (8VS, 8VM) 2.0 TFSI 2013 – 2021 1984 162 220
AUDI A3 Limousine (8VS, 8VM) 1.0 TFSI 2013 – 2021 999 85 115
AUDI A3 Limousine (8VS, 8VM) S3 quattro 2013 – 2021 1984 228 310
AUDI A3 Limousine (8VS, 8VM) 2.0 TFSI quattro 2013 – 2021 1984 140 190
AUDI A3 Limousine (8VS, 8VM) 2.0 TFSI 2013 – 2021 1984 140 190
AUDI A3 Limousine (8VS, 8VM) S3 quattro 2013 – 2021 1984 213 290
AUDI A3 Limousine (8VS, 8VM) 1.4 TFSI Flex 2013 – 2021 1395 110 150
AUDI A3 Limousine (8VS, 8VM) 1.6 TDI 2013 – 2021 1598 85 115
AUDI A3 Limousine (8VS, 8VM) RS3 quattro 2013 – 2021 2480 294 400
AUDI A3 Limousine (8VS, 8VM) 1.5 TFSI 2013 – 2021 1498 110 150
AUDI A3 Limousine (8VS, 8VM) 2.0 TFSI 2013 – 2021 1984 137 186
AUDI A3 Limousine (8VS, 8VM) 30 TFSI 2013 – 2021 999 85 115
AUDI A3 Limousine (8VS, 8VM) 35 TFSI 2013 – 2021 1498 110 150
AUDI A3 Limousine (8VS, 8VM) 30 TDI 2013 – 2021 1598 85 115
AUDI A3 Limousine (8VS, 8VM) 35 TDI 2013 – 2021 1968 110 150
AUDI A3 Limousine (8VS, 8VM) 40 TFSI 2013 – 2021 1984 140 190
AUDI A3 Limousine (8VS, 8VM) 40 TDI quattro 2013 – 2021 1968 135 184
AUDI A3 Limousine (8VS, 8VM) 40 TFSI quattro 2013 – 2021 1984 140 190
AUDI A3 Limousine (8VS, 8VM) 2.0 TFSI quattro 2013 – 2021 1984 170 231
AUDI A3 Sportback (8VA, 8VF) 2.0 TDI 2012 – 2021 1968 81 110
AUDI A3 Sportback (8VA, 8VF) 1.4 TFSI 2012 – 2021 1395 90 122
AUDI A3 Sportback (8VA, 8VF) 2.0 TDI 2012 – 2021 1968 110 150
AUDI A3 Sportback (8VA, 8VF) 2.0 TDI quattro 2012 – 2021 1968 135 184
AUDI A3 Sportback (8VA, 8VF) 2.0 TDI 2012 – 2021 1968 105 143
AUDI A3 Sportback (8VA, 8VF) 1.8 TFSI 2012 – 2021 1798 132 180
AUDI A3 Sportback (8VA, 8VF) 1.6 TDI 2012 – 2021 1598 77 105
AUDI A3 Sportback (8VA, 8VF) 1.4 TFSI 2012 – 2021 1395 103 140
AUDI A3 Sportback (8VA, 8VF) 2.0 TDI quattro 2012 – 2021 1968 110 150
AUDI A3 Sportback (8VA, 8VF) S3 quattro 2012 – 2021 1984 221 300
AUDI A3 Sportback (8VA, 8VF) 1.8 TFSI quattro 2012 – 2021 1798 132 180
AUDI A3 Sportback (8VA, 8VF) 1.2 TFSI 2012 – 2021 1197 77 105
AUDI A3 Sportback (8VA, 8VF) 2.0 TDI 2012 – 2021 1968 135 184
AUDI A3 Sportback (8VA, 8VF) 2.0 TDI 2012 – 2021 1968 100 136
AUDI A3 Sportback (8VA, 8VF) S3 quattro 2012 – 2021 1984 206 280
AUDI A3 Sportback (8VA, 8VF) 1.6 TDI 2012 – 2021 1598 81 110
AUDI A3 Sportback (8VA, 8VF) 1.4 TFSI g-tron 2012 – 2021 1395 81 110
AUDI A3 Sportback (8VA, 8VF) 1.2 TFSI 2012 – 2021 1197 81 110
AUDI A3 Sportback (8VA, 8VF) 1.4 TFSI 2012 – 2021 1395 92 125
AUDI A3 Sportback (8VA, 8VF) 1.4 TSI 2012 – 2021 1395 110 150
AUDI A3 Sportback (8VA, 8VF) S3 quattro 2012 – 2021 1984 210 286
AUDI A3 Sportback (8VA, 8VF) 2.0 45 TFSI 2012 – 2021 1984 162 220
AUDI A3 Sportback (8VA, 8VF) RS3 quattro 2012 – 2021 2480 270 367
AUDI A3 Sportback (8VA, 8VF) 1.6 TDI quattro 2012 – 2021 1598 81 110
AUDI A3 Sportback (8VA, 8VF) 1.4 TFSI e-tron 2012 – 2021 1395 150 204
AUDI A3 Sportback (8VA, 8VF) 1.0 TFSI 2012 – 2021 999 85 115
AUDI A3 Sportback (8VA, 8VF) S3 quattro 2012 – 2021 1984 228 310
AUDI A3 Sportback (8VA, 8VF) 2.0 TFSI quattro 2012 – 2021 1984 140 190
AUDI A3 Sportback (8VA, 8VF) 2.0 TFSI 2012 – 2021 1984 140 190
AUDI A3 Sportback (8VA, 8VF) S3 quattro 2012 – 2021 1984 213 290
AUDI A3 Sportback (8VA, 8VF) 1.6 TDI 2012 – 2021 1598 85 115
AUDI A3 Sportback (8VA, 8VF) RS3 quattro 2012 – 2021 2480 294 400
AUDI A3 Sportback (8VA, 8VF) 1.5 TFSI 2012 – 2021 1498 110 150
AUDI A3 Sportback (8VA, 8VF) 30 TFSI 2012 – 2021 999 85 116
AUDI A3 Sportback (8VA, 8VF) 35 TFSI 2012 – 2021 1498 110 150
AUDI A3 Sportback (8VA, 8VF) 30 TDI 2012 – 2021 1598 85 115
AUDI A3 Sportback (8VA, 8VF) 30 g-tron 2012 – 2021 1498 96 131
AUDI A3 Sportback (8VA, 8VF) 40 TFSI 2012 – 2021 1984 140 190
AUDI A3 Sportback (8VA, 8VF) 35 TDI 2012 – 2021 1968 110 150
AUDI A3 Sportback (8VA, 8VF) 40 TFSI quattro 2012 – 2021 1984 140 190
AUDI A3 Sportback (8VA, 8VF) 40 TDI quattro 2012 – 2021 1968 135 184
AUDI A3 Sportback (8VA, 8VF) 40 e-tron 2012 – 2021 1395 150 204
AUDI A3 Sportback (8VA, 8VF) 1.8 40 TFSI 2012 – 2021 1798 132 180
