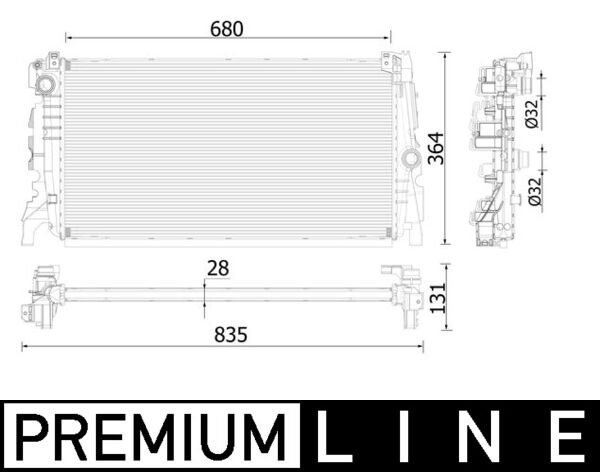

Specifications
| Core Depth (mm) | 28 |
| Core Length (mm) | 680 |
| Core Width (mm) | 364 |
| Inlet Ø (mm) | 32 |
| Manufacturer produced by MAHLE | |
| Net Weight (g) | 3537 |
| Outlet Ø (mm) | 32 |
| Packaging height (cm) | 15.20 |
| Packaging length (cm) | 94.0 |
| Packaging width (cm) | 47.00 |
| Radiator type Brazed cooling fins | |
| Water Tank Material (radiator) Plastic | |
Core Depth [mm] 28, Core Length [mm] 680, Core Width [mm] 364, Inlet Ø [mm] 32, Manufacturer produced by MAHLE, Net Weight [g] 3537, Outlet Ø [mm] 32, Packaging height [cm] 15,20, Packaging length [cm] 94,0, Packaging width [cm] 47,00, Radiator type Brazed cooling fins, Water Tank Material (radiator) Plastic
Fits: BMW, BMW (BRILLIANCE), MINI
Fits: BMW, BMW (BRILLIANCE), MINI
Supplier Cross-References
Interchangeable Part Numbers
OE Numbers — BMW
| Make | Model | Type / Engine | Years | CC | kW | HP |
|---|---|---|---|---|---|---|
| BMW | 2 Active Tourer (F45) | 220 d xDrive | 2013 – 2021 | 1995 | 120 | 163 |
| BMW | 2 Active Tourer (F45) | 225 xe Plug-in-Hybrid | 2013 – 2021 | 1499 | 162 | 220 |
| BMW | 2 Active Tourer (F45) | 220 i | 2013 – 2021 | 1998 | 131 | 178 |
| BMW | 2 Active Tourer (F45) | 218 i | 2013 – 2021 | 1499 | 103 | 140 |
| BMW | 2 Active Tourer (F45) | 216 i | 2013 – 2021 | 1499 | 80 | 109 |
| BMW | 2 Active Tourer (F45) | 220 i Flex | 2013 – 2021 | 1998 | 141 | 192 |
| BMW | 2 Active Tourer (F45) | 218 d xDrive | 2013 – 2021 | 1995 | 100 | 136 |
| BMW | 2 Active Tourer (F45) | 218 d xDrive | 2013 – 2021 | 1995 | 110 | 150 |
| BMW | 2 Active Tourer (F45) | 225 xe Plug-in-Hybrid | 2013 – 2021 | 1499 | 165 | 224 |
| BMW | 2 Active Tourer (F45) | 216 i | 2013 – 2021 | 1499 | 75 | 102 |
| BMW | 2 Active Tourer (F45) | 220 i | 2013 – 2021 | 1998 | 120 | 163 |
| BMW | 2 Active Tourer (F45) | 218 i | 2013 – 2021 | 1499 | 100 | 136 |
| BMW | 2 Active Tourer (F45) | 220 d | 2013 – 2021 | 1995 | 120 | 163 |
| BMW | 2 Active Tourer (F45) | 218 d | 2013 – 2021 | 1995 | 100 | 136 |
| BMW | 2 Active Tourer (F45) | 214 d | 2013 – 2021 | 1496 | 70 | 95 |
| BMW | 2 Active Tourer (F45) | 225 i xDrive | 2013 – 2021 | 1998 | 170 | 231 |
| BMW | 2 Active Tourer (F45) | 220 i | 2013 – 2021 | 1998 | 141 | 192 |
| BMW | 2 Active Tourer (F45) | 220 d xDrive | 2013 – 2021 | 1995 | 140 | 190 |
| BMW | 2 Active Tourer (F45) | 220 d | 2013 – 2021 | 1995 | 140 | 190 |
| BMW | 2 Active Tourer (F45) | 216 d | 2013 – 2021 | 1496 | 85 | 116 |
| BMW | 2 Active Tourer (F45) | 218 d | 2013 – 2021 | 1995 | 110 | 150 |
| BMW | 2 Active Tourer (F45) | 225 i | 2013 – 2021 | 1998 | 170 | 231 |
