Specifications

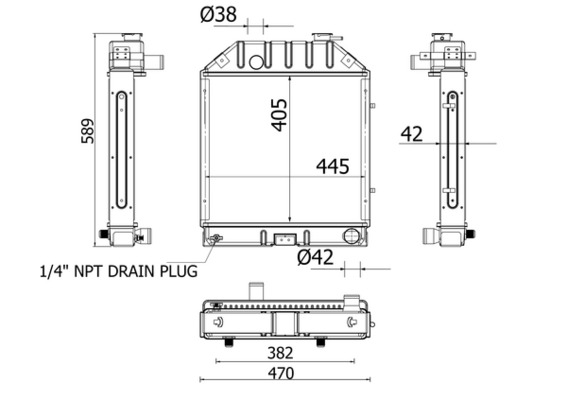

| Core Depth (mm) | 42.0 |
| Core Length (mm) | 405.0 |
| Core Width (mm) | 445.0 |
| Inlet Ø (mm) | 45 |
| Net Weight (g) | 10765 |
| Outlet Ø (mm) | 38.0 |
| Packaging height (cm) | 18.00 |
| Packaging length (cm) | 59.0 |
| Packaging width (cm) | 48.00 |
| Radiator type Brazed cooling fins | |
| Supplementary Article/Info 2 with frame | |
| Water Tank Material (radiator) Aluminium | |
Core Depth [mm] 42,0, Core Length [mm] 405,0, Core Width [mm] 445,0, Inlet Ø [mm] 45, Net Weight [g] 10765, Outlet Ø [mm] 38,0, Packaging height [cm] 18,00, Packaging length [cm] 59,0, Packaging width [cm] 48,00, Radiator type Brazed cooling fins, Supplementary Article/Info 2 with frame, Water Tank Material (radiator) Aluminium
