Specifications

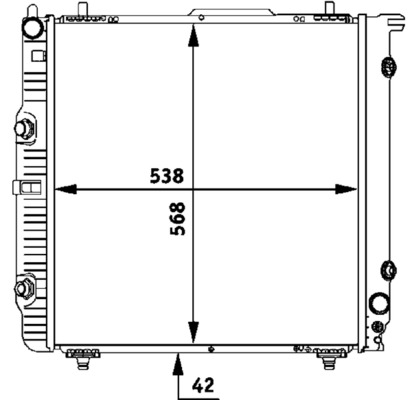

| Core Depth (mm) | 42 |
| Core Length (mm) | 538 |
| Core Width (mm) | 568 |
| Manufacturer produced by MAHLE | |
| Net Weight (g) | 7634 |
| Packaging height (cm) | 73.00 |
| Packaging length (cm) | 84.0 |
| Packaging width (cm) | 11.50 |
| Radiator type Brazed cooling fins | |
| Water Tank Material (radiator) Plastic | |
Core Depth [mm] 42, Core Length [mm] 538, Core Width [mm] 568, Manufacturer produced by MAHLE, Net Weight [g] 7634, Packaging height [cm] 73,00, Packaging length [cm] 84,0, Packaging width [cm] 11,50, Radiator type Brazed cooling fins, Water Tank Material (radiator) Plastic
Fits: MERCEDES-BENZ
Fits: MERCEDES-BENZ
Supplier Cross-References
Interchangeable Part Numbers
OE Numbers — MERCEDES-BENZ
| Make | Model | Type / Engine | Years | CC | kW | HP |
|---|---|---|---|---|---|---|
| MERCEDES-BENZ | G-CLASS (W461) | 230 GE (461) | 1989 – present | 2298 | 92 | 125 |
| MERCEDES-BENZ | G-CLASS (W461) | G 270 CDI | 1989 – present | 2685 | 115 | 156 |
| MERCEDES-BENZ | G-CLASS (W461) | G 290 TD (461.335, 461.336) | 1989 – present | 2874 | 88 | 120 |
| MERCEDES-BENZ | G-CLASS (W461) | G 300 CDI (461.333) | 1989 – present | 2987 | 135 | 184 |
| MERCEDES-BENZ | G-CLASS (W461) | G 280 CDI (461.304, 461.334, 461.339, 461.344, 461.390) | 1989 – present | 2987 | 135 | 184 |
| MERCEDES-BENZ | G-CLASS (W461) | 250 GD (461) | 1989 – present | 2497 | 68 | 92 |
| MERCEDES-BENZ | G-CLASS (W461) | 230 GE (461.238, 461.239) | 1989 – present | 2298 | 90 | 122 |
| MERCEDES-BENZ | G-CLASS (W461) | 290 GD/G 290 D (461.337, 461.338) | 1989 – present | 2874 | 70 | 95 |
| MERCEDES-BENZ | G-CLASS (W463) | G 270 CDI (463.322, 463.323) | 1989 – 2018 | 2685 | 115 | 156 |
| MERCEDES-BENZ | G-CLASS (W463) | G 55 AMG (463.270, 463.271) | 1989 – 2018 | 5439 | 350 | 476 |
| MERCEDES-BENZ | G-CLASS (W463) | 350 Turbo GD (463.320, 463.321) | 1989 – 2018 | 3449 | 100 | 136 |
| MERCEDES-BENZ | G-CLASS (W463) | G 320 CDI (463.343) | 1989 – 2018 | 2987 | 165 | 224 |
| MERCEDES-BENZ | G-CLASS (W463) | G 55 AMG (463.270, 463.271) | 1989 – 2018 | 5439 | 368 | 500 |
| MERCEDES-BENZ | G-CLASS (W463) | G 500 (463.249) | 1989 – 2018 | 4966 | 215 | 292 |
| MERCEDES-BENZ | G-CLASS (W463) | G 63 AMG (463.273) | 1989 – 2018 | 5461 | 400 | 544 |
| MERCEDES-BENZ | G-CLASS (W463) | G 400 CDI (463.332, 463.333) | 1989 – 2018 | 3996 | 184 | 250 |
| MERCEDES-BENZ | G-CLASS (W463) | G 36 AMG (463.230) | 1989 – 2018 | 3606 | 200 | 272 |
| MERCEDES-BENZ | G-CLASS (W463) | 200 GE (463.220) | 1989 – 2018 | 1996 | 85 | 116 |
| MERCEDES-BENZ | G-CLASS (W463) | G 500 (463.222, 463.236, 463.237, 463.242) | 1989 – 2018 | 5461 | 285 | 388 |
| MERCEDES-BENZ | G-CLASS (W463) | G 65 AMG | 1989 – 2018 | 5980 | 450 | 612 |
| MERCEDES-BENZ | G-CLASS (W463) | G 63 AMG 6x6 | 1989 – 2018 | 5461 | 400 | 544 |
| MERCEDES-BENZ | G-CLASS (W463) | G 350 d (463.348) | 1989 – 2018 | 2987 | 180 | 245 |
| MERCEDES-BENZ | G-CLASS (W463) | G 500 (463.234, 463.239) | 1989 – 2018 | 3982 | 310 | 422 |
| MERCEDES-BENZ | G-CLASS (W463) | AMG G 63 (463.272) | 1989 – 2018 | 5461 | 420 | 571 |
| MERCEDES-BENZ | G-CLASS (W463) | AMG G 65 (463.274, 463.275) | 1989 – 2018 | 5980 | 463 | 630 |
| MERCEDES-BENZ | G-CLASS (W463) | G 350 CDI (463.306, 463.340, 463.341, 463.346) | 1989 – 2018 | 2987 | 165 | 224 |
| MERCEDES-BENZ | G-CLASS (W463) | G 320 CDI (463.321) | 1989 – 2018 | 3449 | 100 | 136 |
| MERCEDES-BENZ | G-CLASS (W463) | G 300 (463.228, 463.227) | 1989 – 2018 | 2960 | 125 | 170 |
| MERCEDES-BENZ | G-CLASS (W463) | G 55 AMG (463.270, 463.271) | 1989 – 2018 | 5439 | 350 | 476 |
| MERCEDES-BENZ | G-CLASS (W463) | G 300 Diesel (463.327, 463.328) | 1989 – 2018 | 2996 | 83 | 113 |
| MERCEDES-BENZ | G-CLASS (W463) | G 350 CDI (463.346) | 1989 – 2018 | 2987 | 155 | 211 |
| MERCEDES-BENZ | G-CLASS (W463) | G 300 TD (463.330, 463.331) | 1989 – 2018 | 2996 | 130 | 177 |
| MERCEDES-BENZ | G-CLASS (W463) | G 55 AMG (463.270, 463.271) | 1989 – 2018 | 5439 | 373 | 507 |
| MERCEDES-BENZ | G-CLASS (W463) | 250 GD (463.324, 463.325) | 1989 – 2018 | 2497 | 69 | 94 |
| MERCEDES-BENZ | G-CLASS (W463) | G 320 (463.230, 463.231) | 1989 – 2018 | 3199 | 155 | 211 |
| MERCEDES-BENZ | G-CLASS (W463) | G 320 (463.232, 463.233, 463.244, 463.245) | 1989 – 2018 | 3199 | 158 | 215 |
| MERCEDES-BENZ | G-CLASS (W463) | 300 GE (463.227, 463.228) | 1989 – 2018 | 2960 | 125 | 170 |
| MERCEDES-BENZ | G-CLASS (W463) | 230 GE (463.224, 463.225) | 1989 – 2018 | 2298 | 93 | 126 |
| MERCEDES-BENZ | G-CLASS (W463) | G 500 (463.247, 463.248, 463.249, 463.240, 463.241,... | 1989 – 2018 | 4966 | 218 | 296 |
| MERCEDES-BENZ | G-CLASS (W463) | 300 GD (463.327, 463.328) | 1989 – 2018 | 2996 | 83 | 113 |
| MERCEDES-BENZ | G-CLASS (W463) | 300 GE (463.227, 463.228) | 1989 – 2018 | 2960 | 128 | 174 |
| MERCEDES-BENZ | G-CLASS (W463) | 500 GE (463.228) | 1989 – 2018 | 4973 | 177 | 241 |
| MERCEDES-BENZ | G-CLASS (W463) | G 55 AMG (463.243, 463.246) | 1989 – 2018 | 5439 | 260 | 354 |
| MERCEDES-BENZ | G-CLASS Cabrio (W463) | G 320 CDI (463.320) | 1989 – 2018 | 3449 | 100 | 136 |
| MERCEDES-BENZ | G-CLASS Cabrio (W463) | G 350 CDI (463.306) | 1989 – 2018 | 2987 | 165 | 224 |
| MERCEDES-BENZ | G-CLASS Cabrio (W463) | G 300 Diesel (463.307) | 1989 – 2018 | 2996 | 83 | 113 |
| MERCEDES-BENZ | G-CLASS Cabrio (W463) | G 300 TD (463.308) | 1989 – 2018 | 2996 | 130 | 177 |
| MERCEDES-BENZ | G-CLASS Cabrio (W463) | G 350 CDI | 1989 – 2018 | 2987 | 155 | 211 |
| MERCEDES-BENZ | G-CLASS Cabrio (W463) | 230 GE (463.204) | 1989 – 2018 | 2298 | 93 | 126 |
| MERCEDES-BENZ | G-CLASS Cabrio (W463) | 320 GE (463.208) | 1989 – 2018 | 3199 | 155 | 211 |
| MERCEDES-BENZ | G-CLASS Cabrio (W463) | 350 G Turbo-D (463.300) | 1989 – 2018 | 3449 | 100 | 136 |
| MERCEDES-BENZ | G-CLASS Cabrio (W463) | 300 GD (463.307) | 1989 – 2018 | 2996 | 83 | 113 |
| MERCEDES-BENZ | G-CLASS Cabrio (W463) | 300 GE (463.207) | 1989 – 2018 | 2960 | 125 | 170 |
| MERCEDES-BENZ | G-CLASS Cabrio (W463) | 200 GE (463.200) | 1989 – 2018 | 1996 | 85 | 116 |
| MERCEDES-BENZ | G-CLASS Cabrio (W463) | G 320 (463.209, 463.250) | 1989 – 2018 | 3199 | 158 | 215 |
| MERCEDES-BENZ | G-CLASS Cabrio (W463) | G 500 (463.202) | 1989 – 2018 | 5461 | 285 | 388 |
| MERCEDES-BENZ | G-CLASS Cabrio (W463) | 200 GE (463.200) | 1989 – 2018 | 1996 | 80 | 109 |
| MERCEDES-BENZ | G-CLASS Cabrio (W463) | G 320 CDI (463.303) | 1989 – 2018 | 2987 | 165 | 224 |
| MERCEDES-BENZ | G-CLASS Cabrio (W463) | G 500 (463) | 1989 – 2018 | 4966 | 218 | 296 |
| MERCEDES-BENZ | G-CLASS Cabrio (W463) | G 400 CDI (463.309) | 1989 – 2018 | 3996 | 184 | 250 |
| MERCEDES-BENZ | G-CLASS Platform/Chassis (W461) | G 280 CDi 4-matic (461.346, 461.370) | 1989 – present | 2987 | 135 | 184 |
| MERCEDES-BENZ | G-CLASS Platform/Chassis (W461) | 290 GD 4-matic (461.323, 461.329) | 1989 – present | 2874 | 70 | 95 |
| MERCEDES-BENZ | G-CLASS Platform/Chassis (W461) | G 300 CDi 4-matic (461.343) | 1989 – present | 2987 | 135 | 184 |
