Specifications

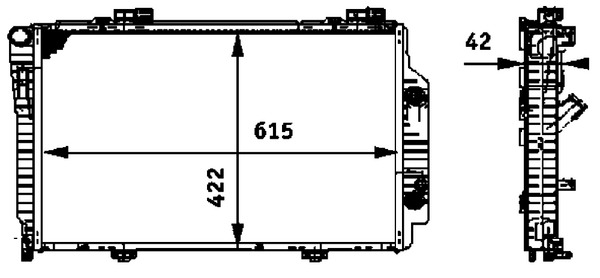

| Core Depth (mm) | 42 |
| Core Length (mm) | 615 |
| Core Width (mm) | 422 |
| Heating/Cooling for vehicles with combined radiator/ oil cooler | |
| Manufacturer produced by MAHLE | |
| Net Weight (g) | 5942 |
| Packaging height (cm) | 62.00 |
| Packaging length (cm) | 78.0 |
| Packaging width (cm) | 13.80 |
| Radiator type Brazed cooling fins | |
| Transmission Type Automatic Transmission | |
| Transmission Type Manual Transmission | |
Core Depth [mm] 42, Core Length [mm] 615, Core Width [mm] 422, Heating/Cooling for vehicles with combined radiator/ oil cooler, Manufacturer produced by MAHLE, Net Weight [g] 5942, Packaging height [cm] 62,00, Packaging length [cm] 78,0, Packaging width [cm] 13,80, Radiator type Brazed cooling fins, Transmission Type Automatic Transmission, Transmission Type Manual Transmission
Fits: MERCEDES-BENZ
Fits: MERCEDES-BENZ
Interchangeable Part Numbers
OE Numbers — MERCEDES-BENZ
| Make | Model | Type / Engine | Years | CC | kW | HP |
|---|---|---|---|---|---|---|
| MERCEDES-BENZ | C-CLASS T-Model (S202) | C 200 T (202.080) | 1996 – 2001 | 1998 | 100 | 136 |
| MERCEDES-BENZ | C-CLASS T-Model (S202) | C 180 T (202.081) | 1996 – 2001 | 1998 | 95 | 129 |
| MERCEDES-BENZ | C-CLASS T-Model (S202) | C 43 AMG (202.093) | 1996 – 2001 | 4266 | 225 | 306 |
| MERCEDES-BENZ | C-CLASS T-Model (S202) | C 220 T D (202.182) | 1996 – 2001 | 2155 | 55 | 75 |
| MERCEDES-BENZ | C-CLASS T-Model (S202) | C 200 T CDI (202.194) | 1996 – 2001 | 2151 | 75 | 102 |
| MERCEDES-BENZ | C-CLASS T-Model (S202) | C 200 T Kompressor (202.087) | 1996 – 2001 | 1998 | 120 | 163 |
| MERCEDES-BENZ | C-CLASS T-Model (S202) | C 240 T (202.088) | 1996 – 2001 | 2597 | 125 | 170 |
| MERCEDES-BENZ | C-CLASS T-Model (S202) | C 180 T (202.078) | 1996 – 2001 | 1799 | 90 | 122 |
| MERCEDES-BENZ | C-CLASS T-Model (S202) | C 200 T Kompressor (202.082) | 1996 – 2001 | 1998 | 141 | 192 |
| MERCEDES-BENZ | C-CLASS T-Model (S202) | C 220 T CDI (202.193) | 1996 – 2001 | 2151 | 92 | 125 |
| MERCEDES-BENZ | C-CLASS T-Model (S202) | C 280 T (202.089) | 1996 – 2001 | 2799 | 145 | 197 |
| MERCEDES-BENZ | C-CLASS T-Model (S202) | C 240 T (202.086) | 1996 – 2001 | 2398 | 125 | 170 |
| MERCEDES-BENZ | C-CLASS T-Model (S202) | C 230 T Kompressor (202.085) | 1996 – 2001 | 2295 | 142 | 193 |
| MERCEDES-BENZ | C-CLASS T-Model (S202) | C 220 T D (202.182) | 1996 – 2001 | 2155 | 70 | 95 |
| MERCEDES-BENZ | C-CLASS T-Model (S202) | C 250 T Turbo-D (202.188) | 1996 – 2001 | 2497 | 110 | 150 |
| MERCEDES-BENZ | C-CLASS T-Model (S202) | C 230 T (202.083) | 1996 – 2001 | 2295 | 110 | 150 |
| MERCEDES-BENZ | C-CLASS T-Model (S202) | C 200 T D (202.180) | 1996 – 2001 | 1997 | 65 | 88 |
| MERCEDES-BENZ | CLK (C208) | CLK 200 Kompressor (208.345) | 1997 – 2003 | 1998 | 141 | 192 |
| MERCEDES-BENZ | CLK (C208) | CLK 230 Kompressor (208.348) | 1997 – 2003 | 2295 | 145 | 197 |
| MERCEDES-BENZ | CLK (C208) | CLK 200 Kompressor (208.344) | 1997 – 2003 | 1998 | 120 | 163 |
| MERCEDES-BENZ | CLK (C208) | CLK 55 AMG (208.374) | 1997 – 2003 | 5439 | 255 | 347 |
| MERCEDES-BENZ | CLK (C208) | CLK 200 (208.335) | 1997 – 2003 | 1998 | 100 | 136 |
| MERCEDES-BENZ | CLK (C208) | CLK 55 AMG (208.374) | 1997 – 2003 | 5439 | 260 | 354 |
| MERCEDES-BENZ | CLK (C208) | CLK 55 AMG (208.374) | 1997 – 2003 | 5439 | 255 | 347 |
| MERCEDES-BENZ | CLK (C208) | CLK 230 Kompressor (208.347) | 1997 – 2003 | 2295 | 142 | 193 |
| MERCEDES-BENZ | CLK (C208) | CLK 430 (208.370) | 1997 – 2003 | 4266 | 205 | 279 |
| MERCEDES-BENZ | CLK (C208) | CLK 320 (208.365) | 1997 – 2003 | 3199 | 160 | 218 |
| MERCEDES-BENZ | CLK Convertible (A208) | CLK 55 AMG (208.474) | 1998 – 2002 | 5439 | 255 | 347 |
| MERCEDES-BENZ | CLK Convertible (A208) | CLK 230 Kompressor (208.448) | 1998 – 2002 | 2295 | 145 | 197 |
| MERCEDES-BENZ | CLK Convertible (A208) | CLK 200 Kompressor (208.444) | 1998 – 2002 | 1998 | 120 | 163 |
| MERCEDES-BENZ | CLK Convertible (A208) | CLK 55 AMG (208.474) | 1998 – 2002 | 5439 | 255 | 347 |
| MERCEDES-BENZ | CLK Convertible (A208) | CLK 430 (208.470) | 1998 – 2002 | 4266 | 205 | 279 |
| MERCEDES-BENZ | CLK Convertible (A208) | CLK 320 (208.465) | 1998 – 2002 | 3199 | 160 | 218 |
| MERCEDES-BENZ | CLK Convertible (A208) | CLK 230 Kompressor (208.447) | 1998 – 2002 | 2295 | 142 | 193 |
| MERCEDES-BENZ | CLK Convertible (A208) | CLK 200 (208.435) | 1998 – 2002 | 1998 | 100 | 136 |
| MERCEDES-BENZ | CLK Convertible (A208) | CLK 200 Kompressor (208.445) | 1998 – 2002 | 1998 | 141 | 192 |
