Specifications

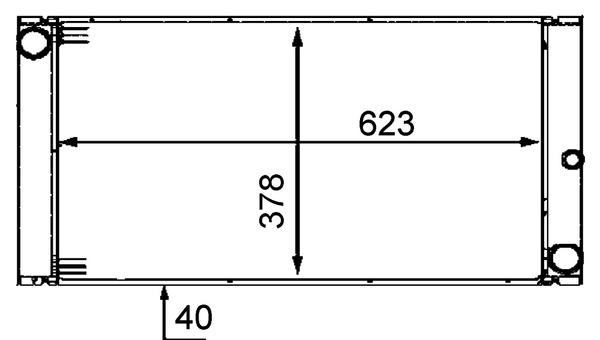

| Core Depth (mm) | 40 |
| Core Length (mm) | 623 |
| Core Width (mm) | 378 |
| Heating/Cooling without breather connection | |
| Manufacturer produced by MAHLE | |
| Net Weight (g) | 4179 |
| Packaging height (cm) | 60.00 |
| Packaging length (cm) | 77.0 |
| Packaging width (cm) | 13.00 |

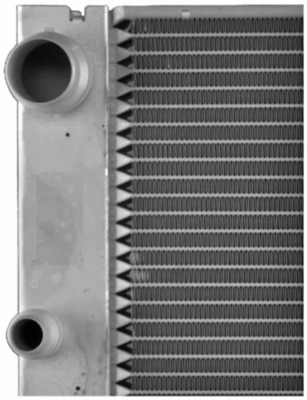

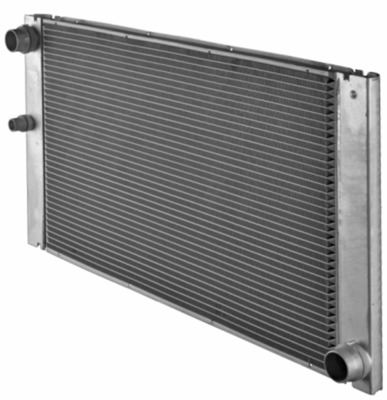

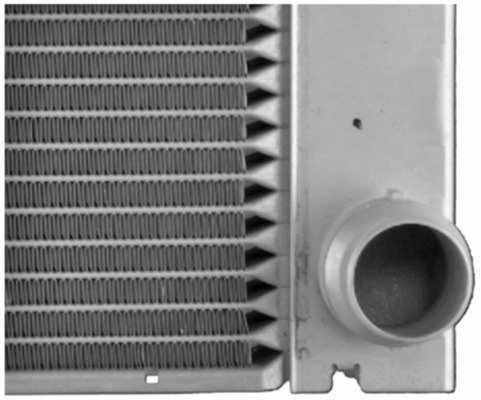

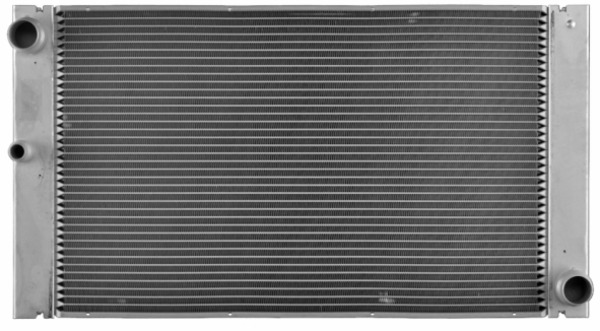

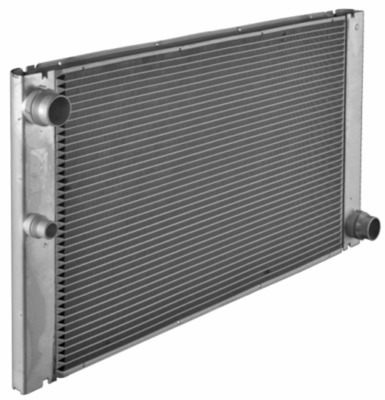

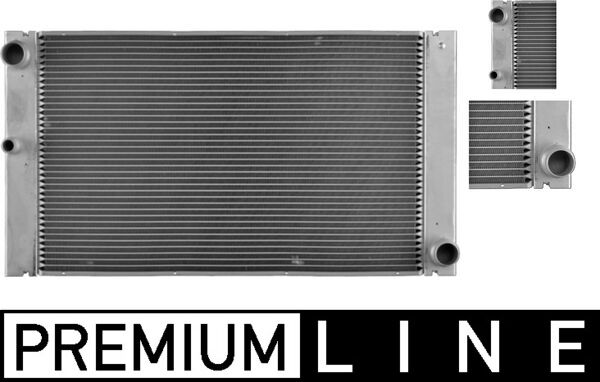

| Radiator type Brazed cooling fins | |
| Transmission Type Automatic Transmission | |
| Water Tank Material (radiator) Aluminium | |
Core Depth [mm] 40, Core Length [mm] 623, Core Width [mm] 378, Heating/Cooling without breather connection, Manufacturer produced by MAHLE, Net Weight [g] 4179, Packaging height [cm] 60,00, Packaging length [cm] 77,0, Packaging width [cm] 13,00, Radiator type Brazed cooling fins, Transmission Type Automatic Transmission, Water Tank Material (radiator) Aluminium
Fits: BMW
Fits: BMW
Supplier Cross-References
Interchangeable Part Numbers
OE Numbers — BMW
| Make | Model | Type / Engine | Years | CC | kW | HP |
|---|---|---|---|---|---|---|
| BMW | 5 (E39) | 525 tds | 1995 – 2003 | 2497 | 105 | 143 |
| BMW | 5 (E39) | 530 i | 1995 – 2003 | 2979 | 168 | 228 |
| BMW | 5 (E39) | 525 i | 1995 – 2003 | 2494 | 137 | 186 |
| BMW | 5 (E39) | 540 i | 1995 – 2003 | 4398 | 216 | 294 |
| BMW | 5 (E39) | 520 i | 1995 – 2003 | 2171 | 120 | 163 |
| BMW | 5 (E39) | 530 i | 1995 – 2003 | 2979 | 170 | 231 |
| BMW | 5 (E39) | 525 i | 1995 – 2003 | 2494 | 141 | 192 |
| BMW | 5 (E39) | 530 d | 1995 – 2003 | 2926 | 142 | 193 |
| BMW | 5 (E39) | 520 i | 1995 – 2003 | 2171 | 125 | 170 |
| BMW | 5 (E39) | 525 d | 1995 – 2003 | 2497 | 120 | 163 |
| BMW | 5 (E39) | 520 d | 1995 – 2003 | 1951 | 100 | 136 |
| BMW | 5 (E39) | 535 i | 1995 – 2003 | 3498 | 180 | 245 |
| BMW | 5 (E39) | 520 i | 1995 – 2003 | 1990 | 110 | 150 |
| BMW | 5 (E39) | M5 | 1995 – 2003 | 4941 | 294 | 400 |
| BMW | 5 (E39) | 530 d | 1995 – 2003 | 2926 | 135 | 184 |
| BMW | 5 (E39) | 525 td | 1995 – 2003 | 2497 | 85 | 116 |
| BMW | 5 (E39) | 535 i | 1995 – 2003 | 3498 | 173 | 235 |
| BMW | 5 (E39) | 520 i | 1995 – 2003 | 1990 | 100 | 136 |
| BMW | 5 (E39) | 523 i | 1995 – 2003 | 2494 | 125 | 170 |
| BMW | 5 (E39) | 540 i | 1995 – 2003 | 4398 | 210 | 286 |
| BMW | 5 (E39) | 528 i | 1995 – 2003 | 2793 | 142 | 193 |
| BMW | 5 (E60) | 520 d | 2001 – 2010 | 1995 | 130 | 177 |
| BMW | 5 (E60) | 530 d xDrive | 2001 – 2010 | 2993 | 173 | 235 |
| BMW | 5 (E60) | 520 i | 2001 – 2010 | 1995 | 125 | 170 |
| BMW | 5 (E60) | 520 i | 2001 – 2010 | 1995 | 120 | 163 |
| BMW | 5 (E60) | 525 i xDrive | 2001 – 2010 | 2996 | 160 | 218 |
| BMW | 5 (E60) | 530 i xDrive | 2001 – 2010 | 2996 | 200 | 272 |
| BMW | 5 (E60) | 525 d xDrive | 2001 – 2010 | 2993 | 145 | 197 |
| BMW | 5 (E60) | 523 i | 2001 – 2010 | 2497 | 140 | 190 |
| BMW | 5 (E60) | 525 xd | 2001 – 2010 | 2993 | 145 | 197 |
| BMW | 5 (E60) | 535 i | 2001 – 2010 | 2979 | 225 | 306 |
| BMW | 5 (E60) | 530 i | 2001 – 2010 | 2996 | 187 | 254 |
| BMW | 5 (E60) | 530 xi | 2001 – 2010 | 2996 | 200 | 272 |
| BMW | 5 (E60) | 530 i | 2001 – 2010 | 2996 | 200 | 272 |
| BMW | 5 (E60) | 530 xd | 2001 – 2010 | 2993 | 173 | 235 |
| BMW | 5 (E60) | 530 d | 2001 – 2010 | 2993 | 173 | 235 |
| BMW | 5 (E60) | 525 d | 2001 – 2010 | 2993 | 145 | 197 |
| BMW | 5 (E60) | 525 i | 2001 – 2010 | 2996 | 160 | 218 |
| BMW | 5 (E60) | 523 i | 2001 – 2010 | 2497 | 140 | 190 |
| BMW | 5 (E60) | 520 d | 2001 – 2010 | 1995 | 125 | 170 |
| BMW | 5 (E60) | 530 xi | 2001 – 2010 | 2996 | 200 | 272 |
| BMW | 5 (E60) | 528 i xDrive | 2001 – 2010 | 2996 | 172 | 234 |
| BMW | 5 (E60) | 530 i | 2001 – 2010 | 2979 | 168 | 228 |
| BMW | 5 (E60) | 528 i | 2001 – 2010 | 2996 | 172 | 234 |
| BMW | 5 (E60) | 525 i | 2001 – 2010 | 2996 | 155 | 211 |
| BMW | 5 (E60) | 525 i | 2001 – 2010 | 2497 | 155 | 211 |
| BMW | 5 (E60) | 530 i | 2001 – 2010 | 2996 | 200 | 272 |
| BMW | 5 (E60) | 545 i | 2001 – 2010 | 4398 | 242 | 329 |
| BMW | 5 (E60) | 535 xi | 2001 – 2010 | 2979 | 225 | 306 |
| BMW | 5 (E60) | 535 i | 2001 – 2010 | 2979 | 224 | 305 |
| BMW | 5 (E60) | 540 i | 2001 – 2010 | 4000 | 220 | 299 |
| BMW | 5 (E60) | 520 i | 2001 – 2010 | 1995 | 115 | 156 |
| BMW | 5 (E60) | 530 d | 2001 – 2010 | 2993 | 155 | 211 |
| BMW | 5 (E60) | 535 i xDrive | 2001 – 2010 | 2979 | 224 | 305 |
| BMW | 5 (E60) | 550 i | 2001 – 2010 | 4799 | 261 | 355 |
| BMW | 5 (E60) | 540 i | 2001 – 2010 | 4000 | 225 | 306 |
| BMW | 5 (E60) | 525 i | 2001 – 2010 | 2494 | 141 | 192 |
| BMW | 5 (E60) | 545 i | 2001 – 2010 | 4398 | 245 | 333 |
| BMW | 5 (E60) | 525 d | 2001 – 2010 | 2497 | 130 | 177 |
| BMW | 5 (E60) | 530 d | 2001 – 2010 | 2993 | 160 | 218 |
| BMW | 5 (E60) | M5 | 2001 – 2010 | 4999 | 373 | 507 |
| BMW | 5 (E60) | 535 d | 2001 – 2010 | 2993 | 200 | 272 |
| BMW | 5 (E60) | 530 i | 2001 – 2010 | 2979 | 170 | 231 |
| BMW | 5 (E60) | 520 i | 2001 – 2010 | 2171 | 125 | 170 |
| BMW | 5 (E60) | 530 i | 2001 – 2010 | 2996 | 190 | 258 |
| BMW | 5 (E60) | 523 i | 2001 – 2010 | 2497 | 130 | 177 |
| BMW | 5 (E60) | 525 i | 2001 – 2010 | 2497 | 160 | 218 |
| BMW | 5 (E60) | 550 i | 2001 – 2010 | 4799 | 270 | 367 |
| BMW | 5 (E60) | 525 i | 2001 – 2010 | 2996 | 160 | 218 |
| BMW | 5 (E60) | 520 d | 2001 – 2010 | 1995 | 120 | 163 |
| BMW | 5 (E60) | 535 d | 2001 – 2010 | 2993 | 210 | 286 |
| BMW | 5 (E60) | 530 d | 2001 – 2010 | 2993 | 170 | 231 |
| BMW | 5 (E60) | 525 xi | 2001 – 2010 | 2497 | 160 | 218 |
| BMW | 5 (E60) | 530 xi | 2001 – 2010 | 2996 | 190 | 258 |
| BMW | 5 (E60) | 525 xi | 2001 – 2010 | 2996 | 160 | 218 |
| BMW | 5 (E60) | 520 d | 2001 – 2010 | 1995 | 110 | 150 |
| BMW | 5 (E60) | 525 i | 2001 – 2010 | 2494 | 137 | 186 |
| BMW | 5 (E60) | 530 xd | 2001 – 2010 | 2993 | 170 | 231 |
| BMW | 5 (E60) | 525 d | 2001 – 2010 | 2497 | 120 | 163 |
| BMW | 5 (E60) | 530 i | 2001 – 2010 | 2996 | 168 | 228 |
| BMW | 7 (E65, E66, E67) | 760 i, Li | 2001 – 2009 | 5972 | 327 | 445 |
| BMW | 7 (E65, E66, E67) | 730 d | 2001 – 2009 | 2993 | 150 | 204 |
| BMW | 7 (E65, E66, E67) | 735 i, Li | 2001 – 2009 | 3600 | 200 | 272 |
| BMW | 7 (E65, E66, E67) | 740 d | 2001 – 2009 | 3901 | 190 | 258 |
| BMW | 7 (E65, E66, E67) | 730 d | 2001 – 2009 | 2993 | 160 | 218 |
| BMW | 7 (E65, E66, E67) | 730 d | 2001 – 2009 | 2993 | 155 | 211 |
| BMW | 7 (E65, E66, E67) | 745 i, Li | 2001 – 2009 | 4398 | 245 | 333 |
| BMW | 7 (E65, E66, E67) | 730 i, Li | 2001 – 2009 | 2979 | 170 | 231 |
| BMW | 7 (E65, E66, E67) | 740 i, Li | 2001 – 2009 | 4000 | 225 | 306 |
| BMW | 7 (E65, E66, E67) | 745 i | 2001 – 2009 | 4398 | 241 | 328 |
| BMW | 7 (E65, E66, E67) | 750 i, Li | 2001 – 2009 | 4799 | 270 | 367 |
| BMW | 7 (E65, E66, E67) | 730 Ld | 2001 – 2009 | 2993 | 170 | 231 |
| BMW | 7 (E65, E66, E67) | 745 i | 2001 – 2009 | 4398 | 242 | 329 |
| BMW | 7 (E65, E66, E67) | 745 d | 2001 – 2009 | 4423 | 242 | 329 |
| BMW | 7 (E65, E66, E67) | 760 i | 2001 – 2009 | 5972 | 320 | 435 |
| BMW | 7 (E65, E66, E67) | 730 i, Li | 2001 – 2009 | 2996 | 184 | 250 |
| BMW | 7 (E65, E66, E67) | 730 i, Li | 2001 – 2009 | 2996 | 190 | 258 |
| BMW | 7 (E65, E66, E67) | 745 d | 2001 – 2009 | 4423 | 220 | 300 |
| BMW | 7 (E65, E66, E67) | 735 i | 2001 – 2009 | 3999 | 225 | 306 |
