Specifications

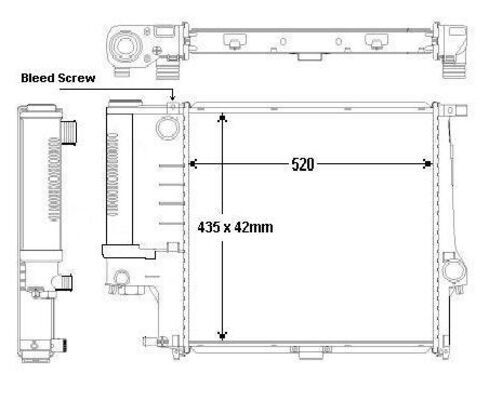

| Core Depth (mm) | 42.0 |
| Core Length (mm) | 520.0 |
| Core Width (mm) | 435.0 |
| Radiator type Brazed cooling fins | |
| Water Tank Material (radiator) Plastic | |
Core Depth [mm] 42,0, Core Length [mm] 520,0, Core Width [mm] 435,0, Radiator type Brazed cooling fins, Water Tank Material (radiator) Plastic
Fits: BMW
Fits: BMW
OE Numbers — BMW
| Make | Model | Type / Engine | Years | CC | kW | HP |
|---|---|---|---|---|---|---|
| BMW | 5 (E34) | 520 i | 1987 – 1995 | 1990 | 95 | 129 |
| BMW | 5 (E34) | 520 i 24V | 1987 – 1995 | 1990 | 110 | 150 |
| BMW | 5 (E34) | 524 td | 1987 – 1995 | 2443 | 85 | 115 |
| BMW | 5 (E34) | 525 i | 1987 – 1995 | 2494 | 125 | 170 |
| BMW | 5 (E34) | 525 i 24V | 1987 – 1995 | 2494 | 141 | 192 |
| BMW | 5 (E34) | 525 iX 24V | 1987 – 1995 | 2494 | 141 | 192 |
| BMW | 5 (E34) | 525 tds | 1987 – 1995 | 2497 | 105 | 143 |
| BMW | 5 (E34) | 530 i | 1987 – 1995 | 2986 | 138 | 188 |
| BMW | 5 (E34) | 530 i V8 | 1987 – 1995 | 2997 | 160 | 218 |
| BMW | 5 (E34) | 535 i | 1987 – 1995 | 3430 | 155 | 211 |
| BMW | 5 (E34) | M5 | 1987 – 1995 | 3535 | 232 | 315 |
| BMW | 5 (E34) | M5 | 1987 – 1995 | 3795 | 250 | 340 |
| BMW | 5 (E34) | 540 i V8 | 1987 – 1995 | 3982 | 210 | 286 |
| BMW | 5 (E34) | 518 i | 1987 – 1995 | 1796 | 85 | 115 |
| BMW | 5 (E34) | 518 i | 1987 – 1995 | 1796 | 83 | 113 |
| BMW | 5 (E34) | 525 td | 1987 – 1995 | 2497 | 85 | 115 |
