Brake Drum

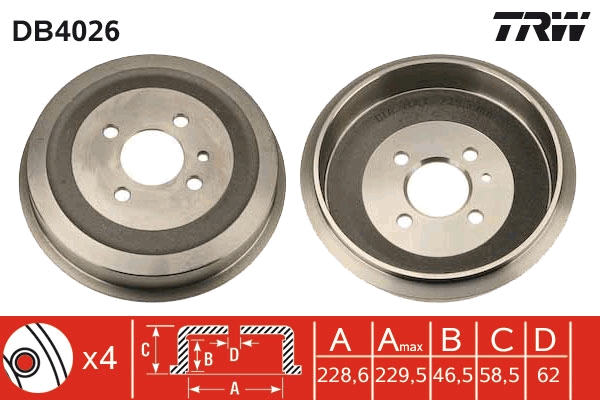

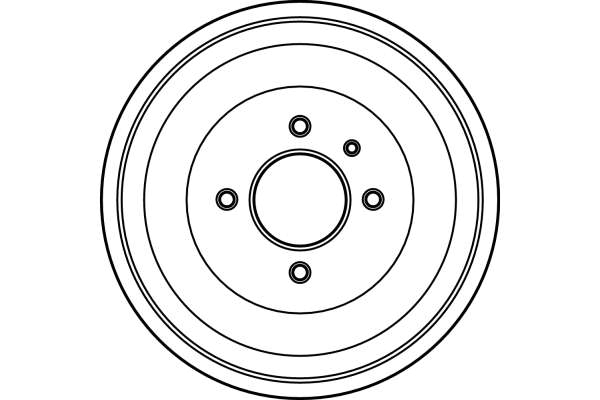

Brake Drum 1 Brake Drum 2
Braking System

Brake Drum

Part No. DB4026 · SKU DB4026-TRW
Rear Axle
₱11,800.00
In stock — available to order
Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)100
Bore Diameter 1 (mm)14.5
Bore Diameter 2 (mm)9
Centering Diameter (mm)62
Drum diameter (mm)228.6
Inner brake drum height (mm)47. max. brake drum reboring dimension [mm] 229.5
Number of Holes 4
Outer brake drum diameter (mm)248
Total brake drum height (mm)59
Bolt Hole Circle Ø [mm] 100, Bore Diameter 1 [mm] 14,5, Bore Diameter 2 [mm] 9, Centering Diameter [mm] 62, Drum diameter [mm] 228,6, Inner brake drum height [mm] 47, max. brake drum reboring dimension [mm] 229,5, Number of Holes 4, Outer brake drum diameter [mm] 248, Total brake drum height [mm] 59
Fits: BMW

Supplier Cross-References

DELPHIBF156 TEXTAR94009300 FERODOFDR329029 ATE24022280091 BREMBO14318510 TRWDB4026

Interchangeable Part Numbers

A.B.S.2497S APECDRM9509 BENDIX329029B BENDIX354004 BORG & BECKBBR7005 BOSCH0 986 477 039 BOSCH986477039 Brake ENGINEERINGDR961320 DELPHIBF1156 DELPHIBT132 FEBI BILSTEIN04098 FIRST LINEFBR609 HELLA8DT 355 300-011 JURID329029J JURID8282008026 LEMFÖRDER10412 02 LPR7D0011 METELLI180045 METZGERBT318 MEYLE315 523 3056 MGAT7421 MINTEXMBD018 NK251503 PAGID60403 PEX150023 QH Benelux66204 QUINTON HAZELLBDR132 QUINTON HAZELLBTF132 REMSA705900 SWAG20904098 TEXTAR98100009301 TRISCAN812011205 ZIMMERMANN150170300

OE Numbers — BMW

1 153 091 1 156 297 1 158 556 34 21 1 153 091 34 21 1 156 297 34 21 1 158 556
MakeModelType / Engine YearsCCkWHP
BMW 3 (E30) 316 1982 – 1992 1766 66 90
BMW 3 (E30) 325 i 1982 – 1992 2494 126 171
BMW 3 (E30) 325 e 2.7 1982 – 1992 2693 90 122
BMW 3 (E30) 325 e 2.7 1982 – 1992 2693 95 129
BMW 3 (E30) 324 d 1982 – 1992 2443 63 86
BMW 3 (E30) 324 td 1982 – 1992 2443 85 115
BMW 3 (E30) 316 (Ecotronic) 1982 – 1992 1766 66 90
BMW 3 (E30) 333 i 1982 – 1992 3210 145 197
BMW 3 (E30) 316 i 1982 – 1992 1596 75 102
BMW 3 (E30) 316 i 1982 – 1992 1596 73 100
BMW 3 (E30) 315 1982 – 1992 1573 55 75
BMW 3 (E30) 316 i 1982 – 1992 1766 75 102
BMW 3 (E30) M3 EVO II 2.5 1982 – 1992 2467 175 238
BMW 3 (E30) M3 EVO I 2.3 1982 – 1992 2302 162 220
BMW 3 (E30) 320 i 1982 – 1992 1990 93 126
BMW 3 (E30) 320 is 1982 – 1992 1990 141 192
BMW 3 (E30) 325 i 1982 – 1992 2494 141 192
BMW 3 (E30) 318 i 1982 – 1992 1796 85 115
BMW 3 (E30) M3 2.3 1982 – 1992 2302 143 195
BMW 3 (E30) 325 i X 1982 – 1992 2494 126 171
BMW 3 (E30) 320 i 1982 – 1992 1990 92 125
BMW 3 (E30) 320 i 1982 – 1992 1990 95 129
BMW 3 (E30) M3 2.3 1982 – 1992 2302 147 200
BMW 3 (E30) 323 i 1982 – 1992 2316 102 139
BMW 3 (E30) 318 is 1982 – 1992 1796 100 136
BMW 3 (E30) 318 i 1982 – 1992 1796 83 113
BMW 3 (E30) 318 i 1982 – 1992 1766 77 105
BMW 3 (E30) 318 i 1982 – 1992 1766 75 102
BMW 3 (E30) 323 i 1982 – 1992 2316 110 150
BMW 3 (E30) M3 2.3 1982 – 1992 2302 158 215
BMW 3 (E30) 325 i X 1982 – 1992 2494 125 170
BMW 3 (E30) 325 i 1982 – 1992 2494 125 170
BMW 3 (E36) 323 i 1990 – 1998 2494 125 170
BMW 3 (E36) M3 3.0 1990 – 1998 2990 210 286
BMW 3 (E36) 318 i 1990 – 1998 1796 103 140
BMW 3 (E36) M3 3.2 1990 – 1998 3152 179 243
BMW 3 (E36) M3 3.2 1990 – 1998 3201 236 321
BMW 3 (E36) 318 is 1990 – 1998 1895 103 140
BMW 3 (E36) 328 i 1990 – 1998 2793 142 193
BMW 3 (E36) 316 i 1990 – 1998 1596 73 100
BMW 3 (E36) 316 i 1990 – 1998 1596 75 102
BMW 3 (E36) 318 i 1990 – 1998 1796 83 113
BMW 3 (E36) 318 is 1990 – 1998 1796 103 140
BMW 3 (E36) 320 i 1990 – 1998 1990 110 150
BMW 3 (E36) 325 i 1990 – 1998 2494 141 192
BMW 3 (E36) 325 td 1990 – 1998 2497 85 115
BMW 3 (E36) 325 tds 1990 – 1998 2497 105 143
BMW 3 (E36) 318 tds 1990 – 1998 1665 66 90
BMW 3 (E36) 318 i 1990 – 1998 1796 85 115
BMW 3 Convertible (E30) 318 i Baur TC 1982 – 1993 1766 77 105
BMW 3 Convertible (E30) 323 i 1982 – 1993 2316 102 139
BMW 3 Convertible (E30) 318 Baur TC 1982 – 1993 1766 66 90
BMW 3 Convertible (E30) M3 2.3 1982 – 1993 2303 158 215
BMW 3 Convertible (E30) M3 2.3 1982 – 1993 2302 147 200
BMW 3 Convertible (E30) 1982 – 1993 2693 90 122
BMW 3 Convertible (E30) 316 i Baur TC 1982 – 1993 1596 73 99
BMW 3 Convertible (E30) 320 i 1982 – 1993 1990 93 126
BMW 3 Convertible (E30) 318 i 1982 – 1993 1796 103 140
BMW 3 Convertible (E30) M3 2.3 1982 – 1993 2302 143 195
BMW 3 Convertible (E30) 325 i 1982 – 1993 2494 126 171
BMW 3 Convertible (E30) 325 i 1982 – 1993 2494 125 170
BMW 3 Convertible (E30) 320 i 1982 – 1993 1990 95 129
BMW 3 Convertible (E30) 318 i 1982 – 1993 1796 83 113
