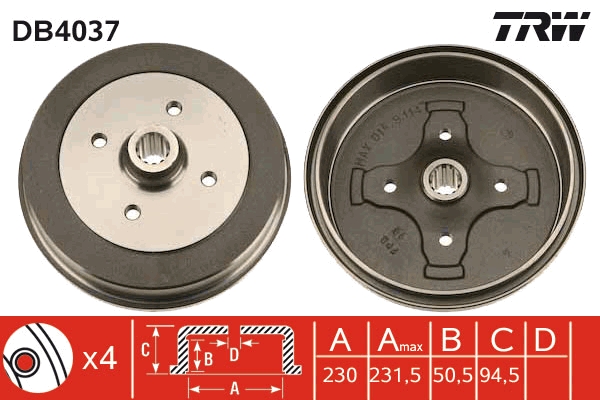

Brake Drum

Name: Brake Drum
Brand: TRW
SKU: DB4037-TRW
Availability: OutOfStock

Part No. DB4037 · SKU DB4037-TRW

Rear Axle

Price on request

Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)	108
Centering Diameter (mm)	30.5
Drum diameter (mm)	230
Inner brake drum height (mm)	51. max. brake drum reboring dimension [mm] 231.5
Number of Holes 4
Outer brake drum diameter (mm)	247
Thread Size 1 M14 x 1,5
Total brake drum height (mm)	95

Bolt Hole Circle Ø [mm] 108, Centering Diameter [mm] 30,5, Drum diameter [mm] 230, Inner brake drum height [mm] 51, max. brake drum reboring dimension [mm] 231,5, Number of Holes 4, Outer brake drum diameter [mm] 247, Thread Size 1 M14 x 1,5, Total brake drum height [mm] 95
Fits: PORSCHE

Interchangeable Part Numbers

A.B.S.5180-S ATE24022300041 BENDIX329140B BORG & BECKBBR7000 BOSCH0 986 477 025 BOSCH986477025 Brake ENGINEERINGDR960790 BREMBO14472410 DELPHIBF167 DELPHIBT255 FIRST LINEFBR600 HELLA8DT 355 301-251 JURID329140J JURID8282005180 KAWE7D0156 PAGID62601 QH Benelux66235 QUINTON HAZELLBDR514 TEXTAR94008700 TEXTAR98100008701 TRISCAN812029217 ZIMMERMANN460182600

OE Numbers — PORSCHE

477 501 615 A

Make	Model	Type / Engine	Years	CC	kW	HP
PORSCHE	924	2.0	1975 – 1989	1984	92	125
PORSCHE	924	2.0 Turbo	1975 – 1989	1984	125	170
PORSCHE	924	2.5 S	1975 – 1989	2479	110	150
PORSCHE	924	2.5 S	1975 – 1989	2479	118	160
PORSCHE	924	2.0 Turbo	1975 – 1989	1984	130	177
PORSCHE	924	2.0 Carrera GT	1975 – 1989	1984	154	209
PORSCHE	924	2.0	1975 – 1989	1984	85	116
PORSCHE	924	2.0 Turbo	1975 – 1989	1984	110	150
PORSCHE	924	2.0 Turbo	1975 – 1989	1984	115	156
