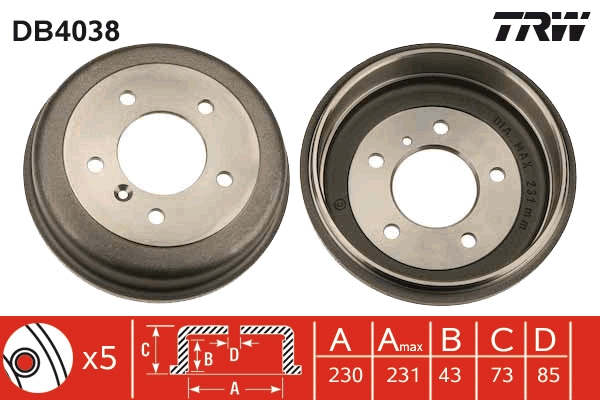

Brake Drum
Braking System

Brake Drum

Part No. DB4038 · SKU DB4038-TRW
Rear Axle
₱15,000.00
In stock — available to order
Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)130
Bore Diameter 1 (mm)15
Bore Diameter 2 (mm)8.5
Centering Diameter (mm)85
Drum diameter (mm)230
Inner brake drum height (mm)43. max. brake drum reboring dimension [mm] 231
Number of Holes 5
Outer brake drum diameter (mm)247
Total brake drum height (mm)73
Bolt Hole Circle Ø [mm] 130, Bore Diameter 1 [mm] 15, Bore Diameter 2 [mm] 8,5, Centering Diameter [mm] 85, Drum diameter [mm] 230, Inner brake drum height [mm] 43, max. brake drum reboring dimension [mm] 231, Number of Holes 5, Outer brake drum diameter [mm] 247, Total brake drum height [mm] 73
Fits: MERCEDES-BENZ

Supplier Cross-References

DELPHIBF168 TEXTAR94005500 FERODOFDR329141 ATE24022300091 BREMBO14326010 TRWDB4038

Interchangeable Part Numbers

A.B.S.4016S APECDRM9507 AUGER31281 BENDIX329141B BORG & BECKBBR7022 BOSCH 0 986 477101 BOSCH0986477101 Brake ENGINEERINGDR960680 DELPHIBT256 FEBI BILSTEIN18491 FIRST LINEFBR640 HELLA 8DT 355301-151 HELLA8DT355301151 JURID329141J KAWE7D0106 METELLI180220 METZGERBT772 MEYLE 015 5232090 MEYLE0155232090 MINTEXMBD113 NK263301 OMC100661 OPTIMALBT-1390 PAGID62102 PE Automotive01643800A PEX150106 QH Benelux66216 QUINTON HAZELLBDR256 QUINTON HAZELLBTF256 REMSA711300 sbs1825263301 SWAG10918491 TEXTAR98100005501 TRISCAN812023201 ZIMMERMANN400507000

OE Numbers — MERCEDES-BENZ 601 423 51

01

OE Numbers — MERCEDES-BENZ

6014235101 A6014235101
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ G-CLASS (W461) 230 GE (461.238, 461.239) 1989 – present 2298 90 122
MERCEDES-BENZ G-CLASS (W461) G 270 CDI 1989 – present 2685 115 156
MERCEDES-BENZ G-CLASS (W461) 290 GD/G 290 D (461.337, 461.338) 1989 – present 2874 70 95
MERCEDES-BENZ G-CLASS (W461) 230 GE (461) 1989 – present 2298 92 125
MERCEDES-BENZ G-CLASS (W461) 250 GD (461) 1989 – present 2497 68 92
MERCEDES-BENZ G-CLASS (W461) G 290 TD (461.335, 461.336) 1989 – present 2874 88 120
MERCEDES-BENZ G-CLASS (W461) G 280 CDI (461.304, 461.334, 461.339, 461.344, 461.390) 1989 – present 2987 135 184
MERCEDES-BENZ G-CLASS (W461) G 300 CDI (461.333) 1989 – present 2987 135 184
MERCEDES-BENZ T1 Bus (B601) 208 D 2.3 1977 – 1996 2299 60 82
MERCEDES-BENZ T1 Bus (B601) 207 D 2.4 (601.371, 601.376, 601.377) 1977 – 1996 2399 53 72
MERCEDES-BENZ T1 Bus (B601) 209 D 2.9 1977 – 1996 2998 65 88
MERCEDES-BENZ T1 Bus (B601) 210 D 2.8 1977 – 1996 2874 72 98
MERCEDES-BENZ T1 Bus (B601) 210 D 2.8 1977 – 1996 2874 70 95
MERCEDES-BENZ T1 Bus (B601) 207 D 2.4 (601.371, 601.372, 601.376, 601.377) 1977 – 1996 2404 48 65
MERCEDES-BENZ T1 Bus (B601) 208 D 2.3 (601.371, 601.372, 601.376, 601.377) 1977 – 1996 2299 58 79
MERCEDES-BENZ T1 Bus (B601) 210 2.3 1977 – 1996 2298 77 105
MERCEDES-BENZ T1 Bus (B601) 208 2.3 1977 – 1996 2307 63 86
MERCEDES-BENZ T1 Bus (B601) 210 2.3 1977 – 1996 2298 70 95
MERCEDES-BENZ T1 Platform/Chassis (601) 207 D 2.4 1977 – 1996 2399 53 72
MERCEDES-BENZ T1 Platform/Chassis (601) 210 2.3 1977 – 1996 2307 63 86
MERCEDES-BENZ T1 Platform/Chassis (601) 209 D 2.9 1977 – 1996 2998 65 88
MERCEDES-BENZ T1 Platform/Chassis (601) 210 2.3 1977 – 1996 2298 70 95
MERCEDES-BENZ T1 Platform/Chassis (601) 210 D 2.8 1977 – 1996 2874 72 98
MERCEDES-BENZ T1 Platform/Chassis (601) 208 D 2.3 1977 – 1996 2299 58 79
MERCEDES-BENZ T1 Platform/Chassis (601) 207 D 2.4 1977 – 1996 2404 48 65
MERCEDES-BENZ T1 Platform/Chassis (601) 210 D 2.9 1977 – 1996 2874 70 95
MERCEDES-BENZ T1 Platform/Chassis (601) 208 D 2.3 1977 – 1996 2299 60 82
MERCEDES-BENZ T1 Van (601, 611) 210 2.3 1977 – 1996 2307 63 86
MERCEDES-BENZ T1 Van (601, 611) 407 D 2.4 (611.367, 611.368) 1977 – 1996 2399 53 72
MERCEDES-BENZ T1 Van (601, 611) 209 D 2.9 1977 – 1996 2998 65 88
MERCEDES-BENZ T1 Van (601, 611) 210 2.3 1977 – 1996 2298 77 105
MERCEDES-BENZ T1 Van (601, 611) 208 D 2.3 1977 – 1996 2299 58 79
MERCEDES-BENZ T1 Van (601, 611) 208 D 2.3 1977 – 1996 2299 60 82
MERCEDES-BENZ T1 Van (601, 611) 210 D 2.8 1977 – 1996 2874 70 95
MERCEDES-BENZ T1 Van (601, 611) 210 2.3 1977 – 1996 2298 70 95
MERCEDES-BENZ T1 Van (601, 611) 207 D 2.4 1977 – 1996 2399 53 72
MERCEDES-BENZ T1 Van (601, 611) 210 D 2.8 1977 – 1996 2874 72 98
MERCEDES-BENZ T1/TN Platform/Chassis 408 D (611.317, 611.318) 1981 – 1995 2299 58 79
MERCEDES-BENZ T1/TN Platform/Chassis 409 D (611.417, 611.418) 1981 – 1995 2998 65 88
MERCEDES-BENZ T1/TN Platform/Chassis 410 D (611.417, 611.418) 1981 – 1995 2874 70 95
MERCEDES-BENZ T1/TN Platform/Chassis 410 (611.017, 611.018) 1981 – 1995 2298 70 95
MERCEDES-BENZ T1/TN Platform/Chassis 407 D (611.317, 611.318) 1981 – 1995 2398 53 72
MERCEDES-BENZ T1/TN Platform/Chassis 408 D (611.317, 611.318) 1981 – 1995 2299 60 82
MERCEDES-BENZ T1/TN Platform/Chassis 410 (611.017, 611.018) 1981 – 1995 2298 77 105
MERCEDES-BENZ T1/TN Platform/Chassis 410 D (611.417, 611.418) 1981 – 1995 2874 72 98
MERCEDES-BENZ T1/TN Van 410 (611.067, 611.068) 1981 – 1995 2298 70 95
MERCEDES-BENZ T1/TN Van 410 (611.067, 611.068) 1981 – 1995 2298 77 105
MERCEDES-BENZ T1/TN Van 410 D (611.467, 611.468) 1981 – 1995 2874 72 98
MERCEDES-BENZ T1/TN Van 408 D (611.367, 611.368) 1981 – 1995 2299 60 82
MERCEDES-BENZ T1/TN Van 410 D (611.467, 611.468) 1981 – 1995 2874 70 95
MERCEDES-BENZ T1/TN Van 409 D (611.467, 611.468) 1981 – 1995 2998 65 88
MERCEDES-BENZ T1/TN Van 408 D (611.367, 611.368) 1981 – 1995 2299 58 79
MERCEDES-BENZ T1/TN Van 407 D (611.367, 611.368) 1981 – 1995 2398 53 72
