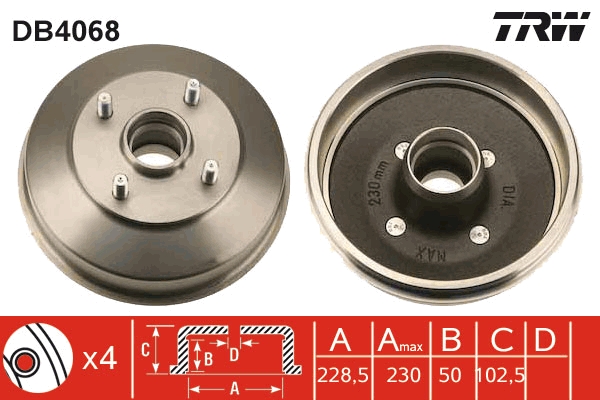

Specifications
| Bolt Hole Circle Ø (mm) | 114.3 |
| Drum diameter (mm) | 228.5 |
| Inner brake drum height (mm) | 50. max. brake drum reboring dimension [mm] 230 |
| Number of Holes 4 | |
| Outer brake drum diameter (mm) | 242 |
| Thread Size 1 M14 x 1,5 | |
| Thread Size 2 M14 x 1,5 | |
| Total brake drum height (mm) | 103 |
Bolt Hole Circle Ø [mm] 114,3, Drum diameter [mm] 228,5, Inner brake drum height [mm] 50, max. brake drum reboring dimension [mm] 230, Number of Holes 4, Outer brake drum diameter [mm] 242, Thread Size 1 M14 x 1,5, Thread Size 2 M14 x 1,5, Total brake drum height [mm] 103
