Brake Drum

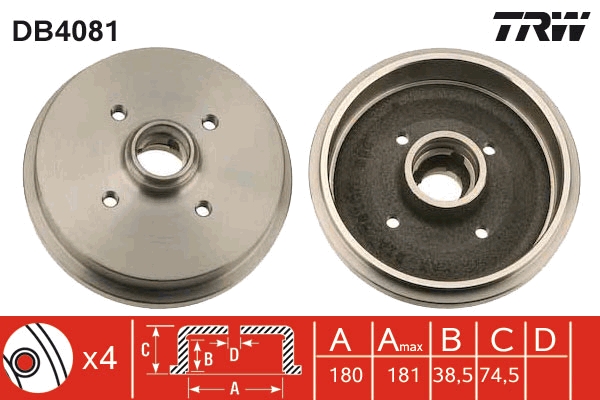

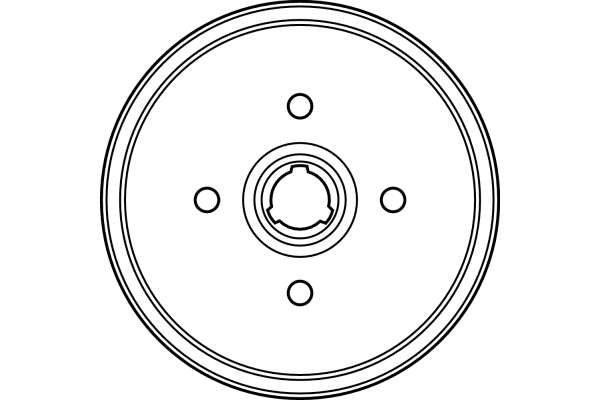

Brake Drum 1 Brake Drum 2
Braking System

Brake Drum

Part No. DB4081 · SKU DB4081-TRW
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)100
Centering Diameter (mm)52
Drum diameter (mm)180
Inner brake drum height (mm)39. max. brake drum reboring dimension [mm] 181
Number of Holes 4
Outer brake drum diameter (mm)190
Supplementary Article/Info 2 without ABS sensor ring
Supplementary Article/Info 2 without wheel bearing
Thread Size 1 M12 x 1,5
Total brake drum height (mm)75
Bolt Hole Circle Ø [mm] 100, Centering Diameter [mm] 52, Drum diameter [mm] 180, Inner brake drum height [mm] 39, max. brake drum reboring dimension [mm] 181, Number of Holes 4, Outer brake drum diameter [mm] 190, Supplementary Article/Info 2 without ABS sensor ring, Supplementary Article/Info 2 without wheel bearing, Thread Size 1 M12 x 1,5, Total brake drum height [mm] 75
Fits: AUDI, SEAT, VW, VW (FAW), VW (SVW)

Interchangeable Part Numbers

A.B.S.7169S APECDRM9120 ATE24021800071 ATE24021807072 BENDIX329128B BENDIX329129B BENDIX329705B BORG & BECKBBR7001 BOSCH 0 986 477002 BOSCH0986477002 BOSCH 0 986 477111 BOSCH0986477111 BOSCH 0 986 BB4503 BOSCH0986BB4503 BOSCH 0 986 BB4504 BOSCH0986BB4504 Brake ENGINEERINGDR960140 BREMBO14325610 BREMBO14325650 DELPHIBF1096 DELPHIBF96 DELPHIBT131 FEBI BILSTEIN02123 FERODOFDR329128 FERODOFDR329705 FIRST LINEFBR601 FTE9190042 FTE9190043 FTEBT131L HELLA 8DT 355301-631 HELLA8DT355301631 JURID329128J JURID329129J JURID329705J JURID8282007164 LEMFÖRDER 1013801 LEMFÖRDER1013801 LPR7D0226 LPR7D0226C MAPCO35708 METELLI180191 METELLI180191K MEYLE 115 5231010 MEYLE1155231010 MGATR7405 MINTEXMBD014 NK254708 NK254714 OPTIMALBT-0070 PAGID63905 PEX150188 QH Benelux66200 QUINTON HAZELLBDR131 QUINTON HAZELLBTF131 REMSA700700 RUVILLEBRD370310 SWAG32902123 TEXTAR94006600 TEXTAR98100006601 TRISCAN812010201 VALEO237009 ZIMMERMANN600195000

OE Numbers — AUDI 171 501 615

A B C

OE Numbers — AUDI

171501615A 171501615B 171501615C 171501615 191501615B 191501615 3055016151 823501615B

OE Numbers — AUDI 171 501

615

OE Numbers — AUDI 305 501 615

1

OE Numbers — VW (FAW)

L191501615B
MakeModelType / Engine YearsCCkWHP
AUDI 50 (863) 1.1 1974 – 1978 1093 44 60
AUDI 50 (863) 1.3 1974 – 1978 1272 43 58
AUDI 50 (863) 0.8 1974 – 1978 771 25 34
AUDI 50 (863) 1.1 1974 – 1978 1093 37 50
AUDI 50 (863) 1.3 1974 – 1978 1272 44 60
AUDI 80 B1 Saloon (80, 82) 1.5 1972 – 1978 1471 63 85
AUDI 80 B1 Saloon (80, 82) 1.6 1972 – 1978 1588 55 75
AUDI 80 B1 Saloon (80, 82) 1.3 1972 – 1978 1297 40 55
AUDI 80 B1 Saloon (80, 82) 1.5 1972 – 1978 1471 57 77
AUDI 80 B1 Saloon (80, 82) 1.5 1972 – 1978 1471 55 75
AUDI 80 B1 Saloon (80, 82) 1.6 1972 – 1978 1588 61 83
AUDI 80 B1 Saloon (80, 82) 1.6 1972 – 1978 1588 53 72
AUDI 80 B1 Saloon (80, 82) 1.6 1972 – 1978 1588 57 78
AUDI 80 B1 Saloon (80, 82) 1.3 1972 – 1978 1297 44 60
AUDI 80 B1 Saloon (80, 82) 1.6 1972 – 1978 1588 63 85
AUDI 80 B1 Saloon (80, 82) 1.6 GT 1972 – 1978 1584 74 100
AUDI 80 B1 Saloon (80, 82) 1.6 GTE 1972 – 1978 1588 81 110
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 GTE quattro (85Q) 1978 – 1987 1781 81 110
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.0 1978 – 1987 1994 85 115
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 1978 – 1987 2144 85 115
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 GTE 1978 – 1987 1781 81 110
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.9 CD-5S 1978 – 1987 1921 85 115
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.0 1978 – 1987 1994 81 110
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1588 51 70
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 quattro 1978 – 1987 2144 96 131
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1588 55 75
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.3 1978 – 1987 1272 44 60
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 quattro 1978 – 1987 2226 100 136
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1588 61 83
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.7 1978 – 1987 1715 58 79
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 1978 – 1987 1780 76 103
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 1978 – 1987 2226 88 120
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 1978 – 1987 2226 89 121
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.3 1978 – 1987 1272 40 55
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 GTE quattro (85Q) 1978 – 1987 1781 82 112
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 CC quattro (85Q) 1978 – 1987 1781 66 90
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 TD 1978 – 1987 1588 51 70
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 D 1978 – 1987 1588 40 54
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 GTE 1978 – 1987 1781 82 112
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 1978 – 1987 1781 66 90
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 1978 – 1987 1781 65 88
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 GLE 1978 – 1987 1588 81 110
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1588 63 85
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1595 55 75
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1595 54 73
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.3 1978 – 1987 1297 44 60
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.0 quattro (85Q) 1978 – 1987 1994 85 115
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 quattro (85Q) 1978 – 1987 2144 100 136
AUDI COUPE B2 (81, 855, 856) 2.2 GT 1980 – 1988 2226 88 120
AUDI COUPE B2 (81, 855, 856) 1.8 1980 – 1988 1781 55 75
AUDI COUPE B2 (81, 855, 856) 1.8 GT quattro 1980 – 1988 1781 82 112
AUDI COUPE B2 (81, 855, 856) 1.8 GT 1980 – 1988 1781 65 88
AUDI COUPE B2 (81, 855, 856) 2.2 quattro 1980 – 1988 2226 88 120
AUDI COUPE B2 (81, 855, 856) 1.8 GT 1980 – 1988 1781 66 90
AUDI COUPE B2 (81, 855, 856) 1.8 GT 1980 – 1988 1781 79 107
AUDI COUPE B2 (81, 855, 856) 2.1 GT 1980 – 1988 2144 79 107
AUDI COUPE B2 (81, 855, 856) 1.6 1980 – 1988 1588 55 75
AUDI COUPE B2 (81, 855, 856) 1.9 1980 – 1988 1921 85 115
AUDI COUPE B2 (81, 855, 856) 2.0 1980 – 1988 1994 83 113
AUDI COUPE B2 (81, 855, 856) 2.3 quattro 1980 – 1988 2309 98 133
AUDI COUPE B2 (81, 855, 856) 2.3 1980 – 1988 2309 98 133
AUDI COUPE B2 (81, 855, 856) 2.0 1980 – 1988 1994 85 115
AUDI COUPE B2 (81, 855, 856) 2.1 GT 1980 – 1988 2144 96 131
AUDI COUPE B2 (81, 855, 856) 2.2 GT 1980 – 1988 2226 85 115
AUDI COUPE B2 (81, 855, 856) 2.2 GT 1980 – 1988 2226 100 136
AUDI COUPE B2 (81, 855, 856) 2.2 quattro 1980 – 1988 2226 100 136
AUDI COUPE B2 (81, 855, 856) 1.8 GT 1980 – 1988 1781 82 112
