Brake Drum
Braking System

Brake Drum

Part No. DB4085B · SKU DB4085B-TRW
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

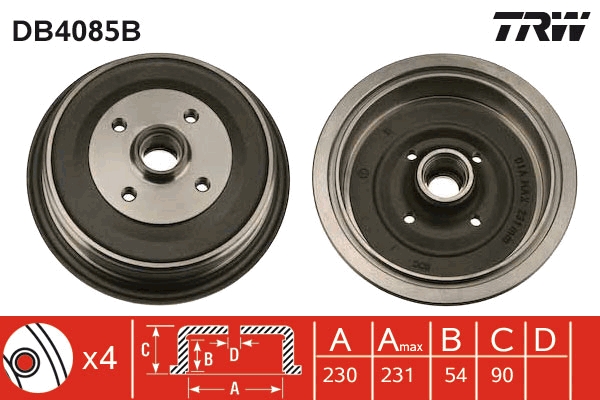

Specifications

Bolt Hole Circle Ø (mm)108
Drum diameter (mm)230
Inner brake drum height (mm)54. max. brake drum reboring dimension [mm] 231
Number of Holes 4
Outer brake drum diameter (mm)246
Supplementary Article/Info 2 with bearing
Supplementary Article/Info 2 with integrated wheel bearing
Supplementary Article/Info 2 without ABS sensor ring
Thread Size 1 M14 x 1,5
Total brake drum height (mm)90
Bolt Hole Circle Ø [mm] 108, Drum diameter [mm] 230, Inner brake drum height [mm] 54, max. brake drum reboring dimension [mm] 231, Number of Holes 4, Outer brake drum diameter [mm] 246, Supplementary Article/Info 2 with bearing, Supplementary Article/Info 2 with integrated wheel bearing, Supplementary Article/Info 2 without ABS sensor ring, Thread Size 1 M14 x 1,5, Total brake drum height [mm] 90
Fits: AUDI

Interchangeable Part Numbers

A.B.S.2420S ATE24022300111 BENDIX329237B BOSCH0 986 477 052 BREMBO14559910 DELPHIBF319 FIRST LINEFBR744 FTEBT201 HELLA8DT 355 301-521 METELLI180198 METELLI180198K MGATR7460 NK254721 OMC100618 PAGID62928 QH Benelux66307 QUINTON HAZELLBDR201 QUINTON HAZELLBTF201 TEXTAR94021400 TEXTAR98100021401 TRISCAN812029212 ZIMMERMANN100164800

OE Numbers — AUDI

443 501 615 B
MakeModelType / Engine YearsCCkWHP
AUDI 100 C3 Avant (445, 446) 1.9 1982 – 1990 1921 74 100
AUDI 100 C3 Avant (445, 446) 2.2 1982 – 1990 2226 101 137
AUDI 100 C3 Avant (445, 446) 2.2 Turbo 1982 – 1990 2226 121 165
AUDI 100 C3 Avant (445, 446) 2.3 1982 – 1990 2309 100 136
AUDI 100 C3 Avant (445, 446) 2.0 D 1982 – 1990 1986 51 70
AUDI 100 C3 Avant (445, 446) 2.0 TD 1982 – 1990 1986 64 87
AUDI 100 C3 Avant (445, 446) 2.0 TD 1982 – 1990 1986 74 100
AUDI 100 C3 Avant (445, 446) 2.5 TDI 1982 – 1990 2461 88 120
AUDI 100 C3 Avant (445, 446) 2.3 1982 – 1990 2309 98 133
AUDI 100 C3 Avant (445, 446) 2.2 quattro 1982 – 1990 2226 101 137
AUDI 100 C3 Avant (445, 446) 2.3 E quattro 1982 – 1990 2309 100 136
AUDI 100 C3 Avant (445, 446) 2.3 quattro 1982 – 1990 2309 98 133
AUDI 100 C3 Avant (445, 446) 2.2 E quattro 1982 – 1990 2226 88 120
AUDI 100 C3 Avant (445, 446) 2.4 D 1982 – 1990 2370 60 82
AUDI 100 C3 Avant (445, 446) 2.2 Turbo quattro 1982 – 1990 2226 121 165
AUDI 100 C3 Avant (445, 446) 1.8 quattro 1982 – 1990 1781 65 88
AUDI 100 C3 Avant (445, 446) 1.8 Cat quattro 1982 – 1990 1781 66 90
AUDI 100 C3 Avant (445, 446) 1.8 quattro 1982 – 1990 1781 66 90
AUDI 100 C3 Avant (445, 446) 2.0 E 1982 – 1990 1994 85 115
AUDI 100 C3 Avant (445, 446) 2.2 Cat 1982 – 1990 2226 101 137
AUDI 100 C3 Avant (445, 446) 2.2 Cat quattro 1982 – 1990 2226 101 137
AUDI 100 C3 Avant (445, 446) 1.8 Cat 1982 – 1990 1781 66 90
AUDI 100 C3 Avant (445, 446) 2.1 1982 – 1990 2144 96 131
AUDI 100 C3 Avant (445, 446) 2.2 1982 – 1990 2226 82 112
AUDI 100 C3 Avant (445, 446) 2.2 quattro 1982 – 1990 2226 118 160
AUDI 100 C3 Avant (445, 446) 2.2 quattro 1982 – 1990 2226 117 159
AUDI 100 C3 Avant (445, 446) 2.3 1982 – 1990 2309 97 132
AUDI 100 C3 Avant (445, 446) 2.2 1982 – 1990 2144 79 107
AUDI 100 C3 Avant (445, 446) 2.1 1982 – 1990 2144 100 136
AUDI 100 C3 Avant (445, 446) 2.0 E Cat 1982 – 1990 1994 85 115
AUDI 100 C3 Avant (445, 446) 2.0 1982 – 1990 1994 83 113
AUDI 100 C3 Avant (445, 446) 1.8 1982 – 1990 1781 66 90
AUDI 100 C3 Avant (445, 446) 1.8 1982 – 1990 1781 65 88
AUDI 100 C3 Avant (445, 446) 1.8 1982 – 1990 1781 55 75
AUDI 100 C3 Avant (445, 446) 2.2 1982 – 1990 2226 85 115
AUDI 100 C3 Saloon (443, 444) 2.1 1982 – 1991 2144 100 136
AUDI 100 C3 Saloon (443, 444) 2.2 Turbo 1982 – 1991 2226 121 165
AUDI 100 C3 Saloon (443, 444) 2.1 1982 – 1991 2144 75 102
AUDI 100 C3 Saloon (443, 444) 2.2 quattro 1982 – 1991 2226 117 159
AUDI 100 C3 Saloon (443, 444) 2.2 1982 – 1991 2226 85 115
AUDI 100 C3 Saloon (443, 444) 2.2 1982 – 1991 2144 96 130
AUDI 100 C3 Saloon (443, 444) 2.2 1982 – 1991 2144 79 107
AUDI 100 C3 Saloon (443, 444) 2.2 1982 – 1991 2226 101 137
AUDI 100 C3 Saloon (443, 444) 2.2 Cat 1982 – 1991 2226 101 137
AUDI 100 C3 Saloon (443, 444) 1.8 Cat 1982 – 1991 1781 66 90
AUDI 100 C3 Saloon (443, 444) 2.0 Cat 1982 – 1991 1994 85 115
AUDI 100 C3 Saloon (443, 444) 2.2 quattro 1982 – 1991 2226 118 160
AUDI 100 C3 Saloon (443, 444) 2.2 1982 – 1991 2226 118 160
AUDI 100 C3 Saloon (443, 444) 2.2 1982 – 1991 2226 117 159
AUDI 100 C3 Saloon (443, 444) 2.0 1982 – 1991 1994 83 113
AUDI 100 C3 Saloon (443, 444) 1.9 1982 – 1991 1921 74 100
AUDI 100 C3 Saloon (443, 444) 2.3 1982 – 1991 2309 97 132
AUDI 100 C3 Saloon (443, 444) 2.3 quattro 1982 – 1991 2309 97 132
AUDI 100 C3 Saloon (443, 444) 2.2 quattro 1982 – 1991 2144 118 160
AUDI 100 C3 Saloon (443, 444) 2.0 D 1982 – 1991 1986 66 90
AUDI 100 C3 Saloon (443, 444) 1.8 quattro 1982 – 1991 1781 65 88
AUDI 100 C3 Saloon (443, 444) 2.3 quattro 1982 – 1991 2309 98 133
AUDI 100 C3 Saloon (443, 444) 2.3 E quattro 1982 – 1991 2309 100 136
AUDI 100 C3 Saloon (443, 444) 1.8 1982 – 1991 1781 65 88
AUDI 100 C3 Saloon (443, 444) 2.2 E Turbo quattro 1982 – 1991 2226 121 165
AUDI 100 C3 Saloon (443, 444) 2.2 quattro 1982 – 1991 2226 101 137
AUDI 100 C3 Saloon (443, 444) 1.8 1982 – 1991 1781 55 75
AUDI 100 C3 Saloon (443, 444) 2.4 D 1982 – 1991 2370 60 82
AUDI 100 C3 Saloon (443, 444) 2.2 E quattro 1982 – 1991 2226 88 120
AUDI 100 C3 Saloon (443, 444) 1.8 Cat quattro 1982 – 1991 1781 66 90
AUDI 100 C3 Saloon (443, 444) 2.2 Cat quattro 1982 – 1991 2226 101 137
AUDI 100 C3 Saloon (443, 444) 2.3 E 1982 – 1991 2309 98 133
AUDI 100 C3 Saloon (443, 444) 2.5 TDI 1982 – 1991 2461 88 120
AUDI 100 C3 Saloon (443, 444) 2.0 D Turbo 1982 – 1991 1986 74 100
AUDI 100 C3 Saloon (443, 444) 1.8 1982 – 1991 1781 66 90
AUDI 100 C3 Saloon (443, 444) 1.8 quattro 1982 – 1991 1781 66 90
AUDI 100 C3 Saloon (443, 444) 2.0 D Turbo 1982 – 1991 1986 64 87
AUDI 100 C3 Saloon (443, 444) 2.0 1982 – 1991 1994 85 115
AUDI 100 C3 Saloon (443, 444) 2.0 D 1982 – 1991 1986 51 70
AUDI 100 C3 Saloon (443, 444) 2.3 E 1982 – 1991 2309 100 136
