Braking System

Brake Drum

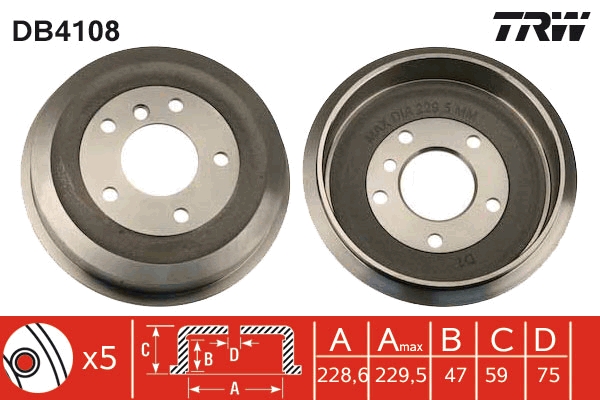

Name: Brake Drum
Brand: TRW
SKU: DB4108-TRW
Availability: OutOfStock

Part No. DB4108 · SKU DB4108-TRW

Rear Axle

Price on request

Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)	120
Inner brake drum diameter (mm)	229
Inner brake drum height (mm)	47. max. brake drum reboring dimension [mm] 229.5
Number of Holes 5

Bolt Hole Circle Ø [mm] 120, Inner brake drum diameter [mm] 229, Inner brake drum height [mm] 47, max. brake drum reboring dimension [mm] 229,5, Number of Holes 5
Fits: BMW

Interchangeable Part Numbers

A.B.S.2375S APECDRM9513 ATE24022280131 BENDIX329030B BORG & BECKBBR7069 BOSCH 0 986 477043 BOSCH0986477043 BOSCH986477043 Brake ENGINEERINGDR962021 BREMBO14581010 DELPHIBF1156 DELPHIBF275 DELPHIBT210 FEBI BILSTEIN01724 FERODOFDR329030 FIRST LINEFBR728 HELLA 8DT 355300-021 HELLA8DT355300021 JURID329030J LEMFÖRDER 1331501 LEMFÖRDER1331501 LPR7D0012 METELLI180046 METZGERBT319 MEYLE 315 5233079 MEYLE3155233079 MGAT7446 MINTEXMBD224 NK251505 OMC100208 PAGID60404 PEX150024 QH Benelux66272 QUINTON HAZELLBDR210 QUINTON HAZELLBTF210 REMSA705800 SWAG99901724 TEXTAR94012500 TEXTAR98100012501 TRISCAN812011204 VALEO237042 ZIMMERMANN150170400

OE Numbers — BMW 1 158

815

OE Numbers — BMW

1158815 1159486 1162400 1162401 34211158815 34211159486 34211162400 34211162401

OE Numbers — BMW 1 159

486

OE Numbers — BMW 1 162

400 401

Make	Model	Type / Engine	Years	CC	kW	HP
BMW	3 (E36)	316 i	1990 – 1998	1596	75	102
BMW	3 (E36)	M3 3.2	1990 – 1998	3152	179	243
BMW	3 (E36)	318 i	1990 – 1998	1796	103	140
BMW	3 (E36)	M3 3.0	1990 – 1998	2990	210	286
BMW	3 (E36)	M3 3.2	1990 – 1998	3201	236	321
BMW	3 (E36)	318 is	1990 – 1998	1895	103	140
BMW	3 (E36)	318 i	1990 – 1998	1796	85	115
BMW	3 (E36)	323 i	1990 – 1998	2494	125	170
BMW	3 (E36)	328 i	1990 – 1998	2793	142	193
BMW	3 (E36)	318 tds	1990 – 1998	1665	66	90
BMW	3 (E36)	325 tds	1990 – 1998	2497	105	143
BMW	3 (E36)	325 td	1990 – 1998	2497	85	115
BMW	3 (E36)	318 is	1990 – 1998	1796	103	140
BMW	3 (E36)	320 i	1990 – 1998	1990	110	150
BMW	3 (E36)	325 i	1990 – 1998	2494	141	192
BMW	3 (E36)	316 i	1990 – 1998	1596	73	100
BMW	3 (E36)	318 i	1990 – 1998	1796	83	113
BMW	3 Compact (E36)	316 g	1994 – 2000	1596	75	102
BMW	3 Compact (E36)	323 ti	1994 – 2000	2494	125	170
BMW	3 Compact (E36)	316 i	1994 – 2000	1895	77	105
BMW	3 Compact (E36)	318 ti	1994 – 2000	1895	103	140
BMW	3 Compact (E36)	323 ti	1994 – 2000	2494	120	163
BMW	3 Compact (E36)	318 ti	1994 – 2000	1796	103	140
BMW	3 Compact (E36)	318 tds	1994 – 2000	1665	66	90
BMW	3 Compact (E36)	316 i	1994 – 2000	1596	75	102
BMW	3 Coupe (E36)	M3 3.0	1991 – 1999	2990	176	239
BMW	3 Coupe (E36)	325 is	1991 – 1999	2494	141	192
BMW	3 Coupe (E36)	M3 3.2	1991 – 1999	3152	179	243
BMW	3 Coupe (E36)	318 i	1991 – 1999	1796	83	113
BMW	3 Coupe (E36)	M3-R 3.0	1991 – 1999	2990	242	329
BMW	3 Coupe (E36)	M3 3.2	1991 – 1999	3201	236	321
BMW	3 Coupe (E36)	318 is	1991 – 1999	1796	103	140
BMW	3 Coupe (E36)	323 i	1991 – 1999	2494	125	170
BMW	3 Coupe (E36)	318 is	1991 – 1999	1895	103	140
BMW	3 Coupe (E36)	M3 3.0	1991 – 1999	2990	217	295
BMW	3 Coupe (E36)	320 i	1991 – 1999	1990	110	150
BMW	3 Coupe (E36)	328 i	1991 – 1999	2793	142	193
BMW	3 Coupe (E36)	325 i	1991 – 1999	2494	141	192
BMW	3 Coupe (E36)	M3 3.0	1991 – 1999	2990	210	286
BMW	3 Coupe (E36)	316 i	1991 – 1999	1596	75	102
