Brake Drum
Brake Drum 1 Brake Drum 2
Braking System

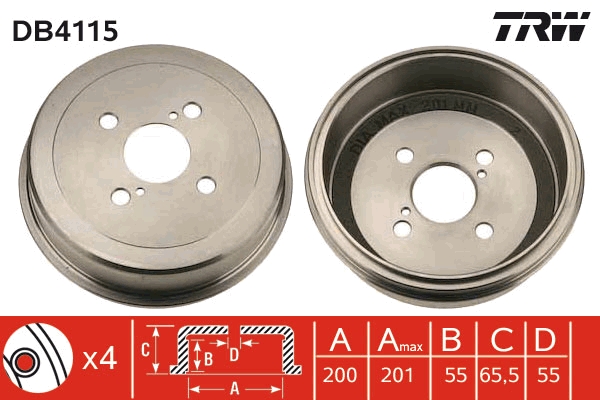

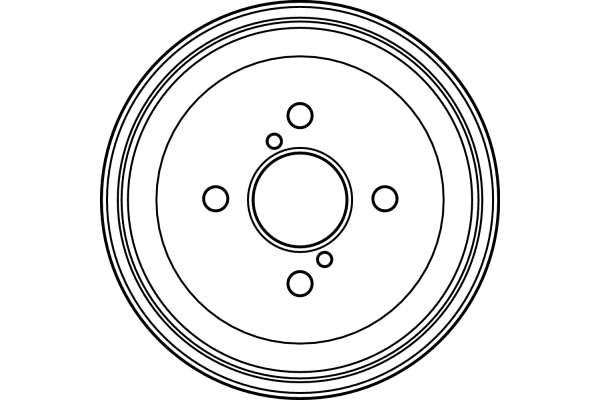

Brake Drum

Part No. DB4115 · SKU DB4115-TRW
Rear Axle
₱8,500.00
In stock — available to order
Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)100
Drum diameter (mm)200
Inner brake drum height (mm)55. max. brake drum reboring dimension [mm] 201
Number of Holes 4
Outer brake drum diameter (mm)235
Total brake drum height (mm)66
Bolt Hole Circle Ø [mm] 100, Drum diameter [mm] 200, Inner brake drum height [mm] 55, max. brake drum reboring dimension [mm] 201, Number of Holes 4, Outer brake drum diameter [mm] 235, Total brake drum height [mm] 66
Fits: AUDI, FORD, RENAULT, TOYOTA, VW

Supplier Cross-References

TEXTAR94021200 JURID329088J BREMBO14581510 TRWDB4115 BOSCHDB165 FTEBT289

Interchangeable Part Numbers

A.B.S.2402S APECDRM9133 ATE24022000231 BENDIX329088B BLUE PRINTADT34708 BLUE PRINTADT34721 BORG & BECKBBR7108 BORG & BECKBBR7167 BOSCH 0 986 477090 BOSCH0986477090 BOSCH 0 986 AB6197 BOSCH0986AB6197 BOSCH 0 986 AB9805 BOSCH0986AB9805 BOSCH F 026 A05820 BOSCHF026A05820 Brake ENGINEERINGDR962084 DELPHIBF278 FIRST LINEFBR788 HELLA 8DT 355301-501 HELLA8DT355301501 HERTH+BUSS JAKOPARTSJ3402004 HERTH+BUSS JAKOPARTSJ3402041 JURID329260J MAPCO35552 METELLI180120 METELLI180380 METZGERBT570 MEYLE 30-15 5230090 MEYLE30155230090 MGAT7533 MINTEXMBD230 NK254513 OMC100467 PAGID62926 PEX150051 QH Benelux66325 QH Benelux66420 QUINTON HAZELLBDR289 QUINTON HAZELLBDR593 QUINTON HAZELLBDR621 REMSA714800 TRISCAN812013209 TRISCAN812013224

OE Numbers — TOYOTA

42431-12130 42431-12180 42431-20250
MakeModelType / Engine YearsCCkWHP
AUDI 100 C3 Saloon (443, 444) 2.2 1982 – 1991 2144 96 130
AUDI 100 C3 Saloon (443, 444) 1.8 1982 – 1991 1781 55 75
AUDI 100 C3 Saloon (443, 444) 2.4 D 1982 – 1991 2370 60 82
AUDI 100 C3 Saloon (443, 444) 2.2 E quattro 1982 – 1991 2226 88 120
AUDI 100 C3 Saloon (443, 444) 1.8 1982 – 1991 1781 66 90
AUDI 100 C3 Saloon (443, 444) 1.8 quattro 1982 – 1991 1781 66 90
AUDI 100 C3 Saloon (443, 444) 2.0 1982 – 1991 1994 85 115
AUDI 100 C3 Saloon (443, 444) 2.2 Cat quattro 1982 – 1991 2226 101 137
AUDI 100 C3 Saloon (443, 444) 2.2 Cat 1982 – 1991 2226 101 137
AUDI 100 C3 Saloon (443, 444) 2.2 1982 – 1991 2144 79 107
AUDI 100 C3 Saloon (443, 444) 1.8 Cat 1982 – 1991 1781 66 90
AUDI 100 C3 Saloon (443, 444) 2.2 quattro 1982 – 1991 2226 117 159
AUDI 100 C3 Saloon (443, 444) 2.1 1982 – 1991 2144 75 102
AUDI 100 C3 Saloon (443, 444) 2.2 quattro 1982 – 1991 2226 118 160
AUDI 100 C3 Saloon (443, 444) 2.2 1982 – 1991 2226 118 160
AUDI 100 C3 Saloon (443, 444) 2.2 1982 – 1991 2226 117 159
AUDI 100 C3 Saloon (443, 444) 2.3 1982 – 1991 2309 97 132
AUDI 100 C3 Saloon (443, 444) 2.3 quattro 1982 – 1991 2309 97 132
AUDI 100 C3 Saloon (443, 444) 2.2 quattro 1982 – 1991 2144 118 160
AUDI 100 C3 Saloon (443, 444) 2.0 D 1982 – 1991 1986 66 90
AUDI 100 C3 Saloon (443, 444) 2.3 E 1982 – 1991 2309 100 136
AUDI 100 C3 Saloon (443, 444) 2.3 quattro 1982 – 1991 2309 98 133
AUDI 100 C3 Saloon (443, 444) 1.8 Cat quattro 1982 – 1991 1781 66 90
AUDI 100 C3 Saloon (443, 444) 1.8 quattro 1982 – 1991 1781 65 88
AUDI 100 C3 Saloon (443, 444) 2.3 E 1982 – 1991 2309 98 133
AUDI 100 C3 Saloon (443, 444) 2.5 TDI 1982 – 1991 2461 88 120
AUDI 100 C3 Saloon (443, 444) 2.0 D Turbo 1982 – 1991 1986 74 100
AUDI 100 C3 Saloon (443, 444) 2.0 D Turbo 1982 – 1991 1986 64 87
AUDI 100 C3 Saloon (443, 444) 2.0 D 1982 – 1991 1986 51 70
AUDI 100 C3 Saloon (443, 444) 2.2 quattro 1982 – 1991 2226 101 137
AUDI 100 C3 Saloon (443, 444) 2.2 Turbo 1982 – 1991 2226 121 165
AUDI 100 C3 Saloon (443, 444) 2.2 1982 – 1991 2226 101 137
AUDI 100 C3 Saloon (443, 444) 2.2 1982 – 1991 2226 85 115
AUDI 100 C3 Saloon (443, 444) 2.1 1982 – 1991 2144 100 136
AUDI 100 C3 Saloon (443, 444) 2.0 Cat 1982 – 1991 1994 85 115
AUDI 100 C3 Saloon (443, 444) 2.0 1982 – 1991 1994 83 113
AUDI 100 C3 Saloon (443, 444) 1.9 1982 – 1991 1921 74 100
AUDI 100 C3 Saloon (443, 444) 1.8 1982 – 1991 1781 65 88
AUDI 100 C3 Saloon (443, 444) 2.3 E quattro 1982 – 1991 2309 100 136
AUDI 100 C3 Saloon (443, 444) 2.2 E Turbo quattro 1982 – 1991 2226 121 165
AUDI 80 B4 Saloon (8C2) 1.9 TD 1991 – 1995 1896 55 75
AUDI 80 B4 Saloon (8C2) 1.9 TDI 1991 – 1995 1896 66 90
AUDI 80 B4 Saloon (8C2) 1.6 1991 – 1995 1595 52 71
AUDI 80 B4 Saloon (8C2) 1.6 E 1991 – 1995 1595 74 101
AUDI 80 B4 Saloon (8C2) 2.0 1991 – 1995 1984 66 90
AUDI 80 B4 Saloon (8C2) 2.0 E 1991 – 1995 1984 85 115
AUDI 80 B4 Saloon (8C2) 2.0 E 16V 1991 – 1995 1984 103 140
AUDI 80 B4 Saloon (8C2) 2.3 E 1991 – 1995 2309 98 133
AUDI 80 B4 Saloon (8C2) 2.0 E 16V 1991 – 1995 1984 101 137
AUDI 80 B4 Saloon (8C2) 2.6 1991 – 1995 2598 110 150
AUDI 80 B4 Saloon (8C2) 2.0 quattro 1991 – 1995 1984 79 107
AUDI 80 B4 Saloon (8C2) 2.8 1991 – 1995 2771 128 174
AUDI 80 B4 Saloon (8C2) 2.0 E 16V quattro 1991 – 1995 1984 103 140
AUDI 80 B4 Saloon (8C2) 2.0 E quattro 1991 – 1995 1984 85 115
AUDI 80 B4 Saloon (8C2) S2 quattro 1991 – 1995 2226 169 230
AUDI 80 B4 Saloon (8C2) 2.3 E quattro 1991 – 1995 2309 98 133
AUDI 80 B4 Saloon (8C2) 2.6 quattro 1991 – 1995 2598 110 150
AUDI 80 B4 Saloon (8C2) 2.8 quattro 1991 – 1995 2771 128 174
