Braking System

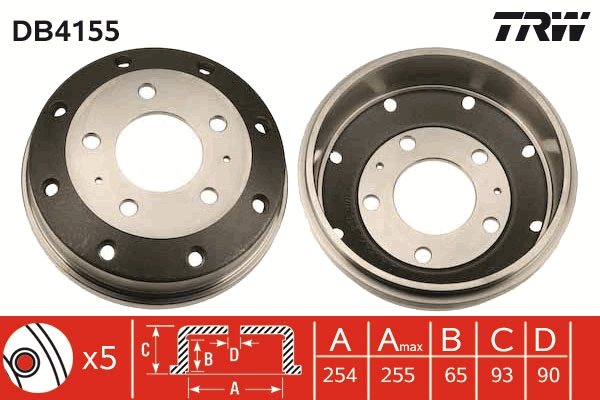

Brake Drum

Name: Brake Drum
Brand: TRW
SKU: DB4155-TRW
Availability: OutOfStock

Part No. DB4155 · SKU DB4155-TRW

Rear Axle

Price on request

Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)	140
Inner brake drum diameter (mm)	254
Inner brake drum height (mm)	65. max. brake drum reboring dimension [mm] 255
Number of Holes 5

Bolt Hole Circle Ø [mm] 140, Inner brake drum diameter [mm] 254, Inner brake drum height [mm] 65, max. brake drum reboring dimension [mm] 255, Number of Holes 5
Fits: JAGUAR, MERCEDES-BENZ

Interchangeable Part Numbers

A.B.S.2408S ATE24022540031 AUGER31284 BENDIX329143B BREMBO14679310 DELPHIBF361 DELPHIBT254 HELLA 8DT 355301-971 HELLA8DT355301971 JURID329143J METELLI180222 METZGERBT774 MGAT7483 NK263303 PAGID62103 PEX150108 QH Benelux66310 QUINTON HAZELLBDR509 QUINTON HAZELLBTF509 REMSA703600 sbs1825263303 TEXTAR94011600 TEXTAR98100011501 TEXTAR98100011601 TRISCAN812023203

OE Numbers — MERCEDES-BENZ 631 423 00

OE Numbers — MERCEDES-BENZ

6314230001 A6314230001

Make	Model	Type / Engine	Years	CC	kW	HP
MERCEDES-BENZ	MB Bus (W631)	D (631.333, 631.343, 631.334, 631.344)	1988 – 1996	2399	53	72
MERCEDES-BENZ	MB Bus (W631)	D (631.333, 631.343, 631.334, 631.344)	1988 – 1996	2399	55	75
MERCEDES-BENZ	MB Bus (W631)	D	1988 – 1996	2399	41	56
MERCEDES-BENZ	MB Bus (W631)	2.0 D	1988 – 1996	1988	44	60
MERCEDES-BENZ	MB Bus (W631)	2.0 D	1988 – 1996	1988	45	61
MERCEDES-BENZ	MB Platform/Chassis (W631)	D (631.340)	1988 – 1996	2399	55	75
MERCEDES-BENZ	MB Platform/Chassis (W631)	D (631.340)	1988 – 1996	2399	53	72
MERCEDES-BENZ	MB Van (W631)	D (631.332, 631.342)	1988 – 1996	2399	53	72
MERCEDES-BENZ	MB Van (W631)	D (631.332, 631.342)	1988 – 1996	2399	55	75
MERCEDES-BENZ	MB Van (W631)	2.0 D	1988 – 1996	1988	44	60
MERCEDES-BENZ	MB Van (W631)	2.0 D	1988 – 1996	1988	45	61
MERCEDES-BENZ	MB Van (W631)	2.4 D	1988 – 1996	2399	56	76
MERCEDES-BENZ	MB Van (W631)	2.4 D	1988 – 1996	2399	61	83
