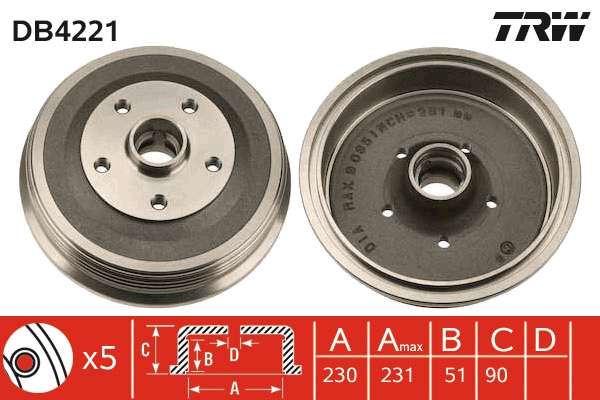

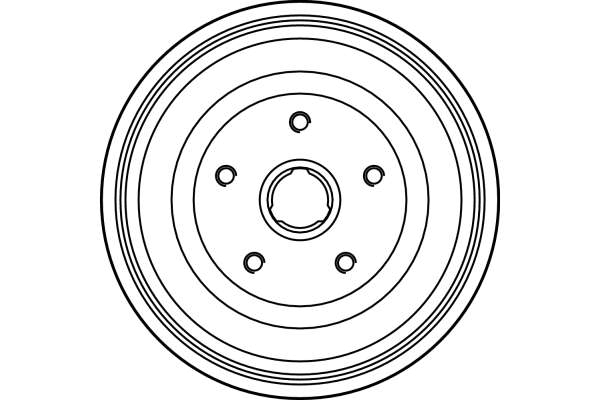

Brake Drum
Brake Drum 1 Brake Drum 2
Braking System

Brake Drum

Part No. DB4221 · SKU DB4221-TRW
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)112
Inner brake drum diameter (mm)230
Inner brake drum height (mm)51. max. brake drum reboring dimension [mm] 231
Number of Holes 5
Bolt Hole Circle Ø [mm] 112, Inner brake drum diameter [mm] 230, Inner brake drum height [mm] 51, max. brake drum reboring dimension [mm] 231, Number of Holes 5
Fits: AUDI

Interchangeable Part Numbers

A.B.S.2374S ATE24022300141 BENDIX329247B BREMBO14724210 DELPHIBF298 DELPHIBT245 HELLA8DT 355 301-621 JURID329247J LPR7D0235 LPR7D0235C LPR7D0434 LPR7D0434C METELLI180207 METELLI180207K METZGERBT744 MGATR7459 MINTEXMBD297 NK254722 PAGID63904 PEX150100 QH Benelux65897 QH Benelux66273 QUINTON HAZELLBDR245 QUINTON HAZELLBDR557 QUINTON HAZELLBTF324 TEXTAR94012700 TEXTAR98100012701 TRISCAN812029213 ZIMMERMANN100164600

OE Numbers — AUDI

4A0 501 615 A 4A0 501 615 B
MakeModelType / Engine YearsCCkWHP
AUDI 100 C4 Avant (4A5) 2.4 D 1990 – 1994 2370 60 82
AUDI 100 C4 Avant (4A5) 2.3 E quattro 1990 – 1994 2309 98 133
AUDI 100 C4 Avant (4A5) 2.8 E 1990 – 1994 2771 128 174
AUDI 100 C4 Avant (4A5) 2.3 E 1990 – 1994 2309 98 133
AUDI 100 C4 Avant (4A5) 2.6 1990 – 1994 2598 110 150
AUDI 100 C4 Avant (4A5) S4 Turbo quattro 1990 – 1994 2226 169 230
AUDI 100 C4 Avant (4A5) 2.0 E 1990 – 1994 1984 85 115
AUDI 100 C4 Avant (4A5) 2.0 E 1990 – 1994 1984 74 100
AUDI 100 C4 Avant (4A5) 2.5 TDI 1990 – 1994 2461 85 115
AUDI 100 C4 Avant (4A5) 2.0 E quattro 1990 – 1994 1984 85 115
AUDI 100 C4 Avant (4A5) 2.6 quattro 1990 – 1994 2598 110 150
AUDI 100 C4 Avant (4A5) 2.6 1990 – 1994 2598 102 139
AUDI 100 C4 Avant (4A5) 2.8 E quattro 1990 – 1994 2771 128 174
AUDI 100 C4 Avant (4A5) S4 V8 quattro 1990 – 1994 4172 206 280
AUDI 100 C4 Avant (4A5) 2.0 E 16V 1990 – 1994 1984 103 140
AUDI 100 C4 Avant (4A5) 2.0 E 16V quattro 1990 – 1994 1984 103 140
AUDI 100 C4 Avant (4A5) 2.6 E quattro 1990 – 1994 2598 102 139
AUDI 100 C4 Saloon (4A2) 2.0 E quattro 1990 – 1996 1984 85 115
AUDI 100 C4 Saloon (4A2) 2.6 quattro 1990 – 1996 2598 102 139
AUDI 100 C4 Saloon (4A2) 2.6 1990 – 1996 2598 102 139
AUDI 100 C4 Saloon (4A2) 2.0 E 16V 1990 – 1996 1984 103 140
AUDI 100 C4 Saloon (4A2) 2.0 E 16V quattro 1990 – 1996 1984 103 140
AUDI 100 C4 Saloon (4A2) 2.4 D 1990 – 1996 2370 60 82
AUDI 100 C4 Saloon (4A2) S4 V8 quattro 1990 – 1996 4172 206 280
AUDI 100 C4 Saloon (4A2) 2.8 E quattro 1990 – 1996 2771 128 174
AUDI 100 C4 Saloon (4A2) 2.6 quattro 1990 – 1996 2598 110 150
AUDI 100 C4 Saloon (4A2) 2.3 E quattro 1990 – 1996 2309 98 133
AUDI 100 C4 Saloon (4A2) S4 Turbo quattro 1990 – 1996 2226 169 230
AUDI 100 C4 Saloon (4A2) 2.8 E 1990 – 1996 2771 128 174
AUDI 100 C4 Saloon (4A2) 2.6 1990 – 1996 2598 110 150
AUDI 100 C4 Saloon (4A2) 2.3 E 1990 – 1996 2309 98 133
AUDI 100 C4 Saloon (4A2) 2.0 E 1990 – 1996 1984 85 115
AUDI 100 C4 Saloon (4A2) 2.0 1990 – 1996 1984 74 100
AUDI 100 C4 Saloon (4A2) 2.5 TDI 1990 – 1996 2461 85 115
