TRW
Braking System
Brake Drum
Part No.
DB4296B
·
SKU
DB4296B-TRW
Price on request
Currently out of stock
Get notified when this part is back in stock:
Genuine & OEM parts
Nationwide delivery
Easy returns

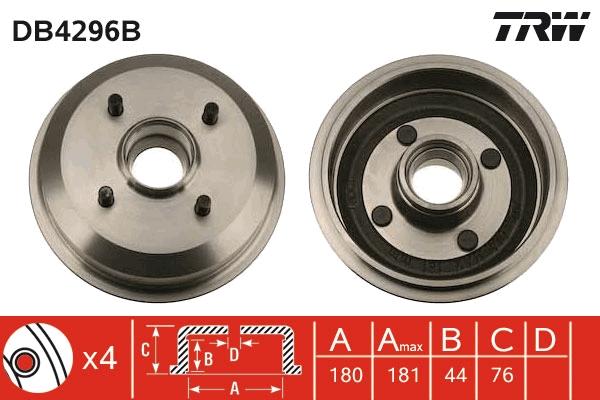

Specifications
| Bolt Hole Circle Ø (mm) | 108 |
| Inner brake drum diameter (mm) | 180 |
| Inner brake drum height (mm) | 44. max. brake drum reboring dimension [mm] 181 |
| Number of Holes 4 |
| Supplementary Article/Info 2 with bearing |
| Supplementary Article/Info 2 with integrated wheel bearing |
| Supplementary Article/Info 2 without ABS sensor ring |
Bolt Hole Circle Ø [mm] 108, Inner brake drum diameter [mm] 180, Inner brake drum height [mm] 44, max. brake drum reboring dimension [mm] 181, Number of Holes 4, Supplementary Article/Info 2 with bearing, Supplementary Article/Info 2 with integrated wheel bearing, Supplementary Article/Info 2 without ABS sensor ring
Interchangeable Part Numbers
A.B.S.2671S
ATE24021800242
ATE24021807242
BOSCH 0 986 477099
BOSCH0986477099
BREMBO14724610
BREMBO14724650
DELPHIBF329
FTEBT1018
HERTH+BUSS JAKOPARTSJ3403002
LEMFÖRDER 3036701
LEMFÖRDER3036701
METELLI180294
METELLI180294K
METZGERBT9668
MEYLE 715 5237033
MEYLE7155237033
MGATR7544
NK252530
PEX150156
QH Benelux65845
OE Numbers — MAZDA
1E01-26-251
