TRW
Braking System

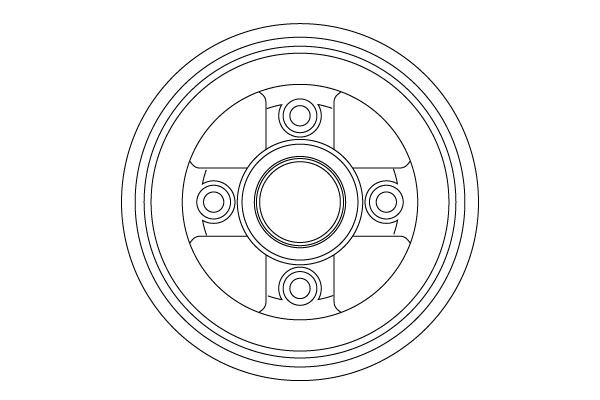

Brake Drum
Part No.
DB4477
·
SKU
DB4477-TRW
₱7,800.00
In stock — available to order
Genuine & OEM parts
Nationwide delivery
Easy returns
Specifications
| Centering Diameter (mm) | 47 |
| Inner brake drum diameter (mm) | 180 |
| Inner brake drum height (mm) | 35. max. brake drum reboring dimension [mm] 182 |
| Number of Holes 4 |
| Outer brake drum diameter (mm) | 208 |
| Thread Size 12 |
| Total brake drum height (mm) | 52 |
Centering Diameter [mm] 47, Inner brake drum diameter [mm] 180, Inner brake drum height [mm] 35, max. brake drum reboring dimension [mm] 182, Number of Holes 4, Outer brake drum diameter [mm] 208, Thread Size 12, Total brake drum height [mm] 52
Supplier Cross-References
DELPHIBF584
TEXTAR94032500
TRWDB4477
BOSCH986477264
VALEO237026
KAVO PARTSBD6874
Interchangeable Part Numbers
A.B.S.2897-S
APECDRM9975
BLUE PRINTADN14726
DBA AustraliaDBA1903
PROTECHNICPRT150
OE Numbers — SUZUKI
43511M79G50
