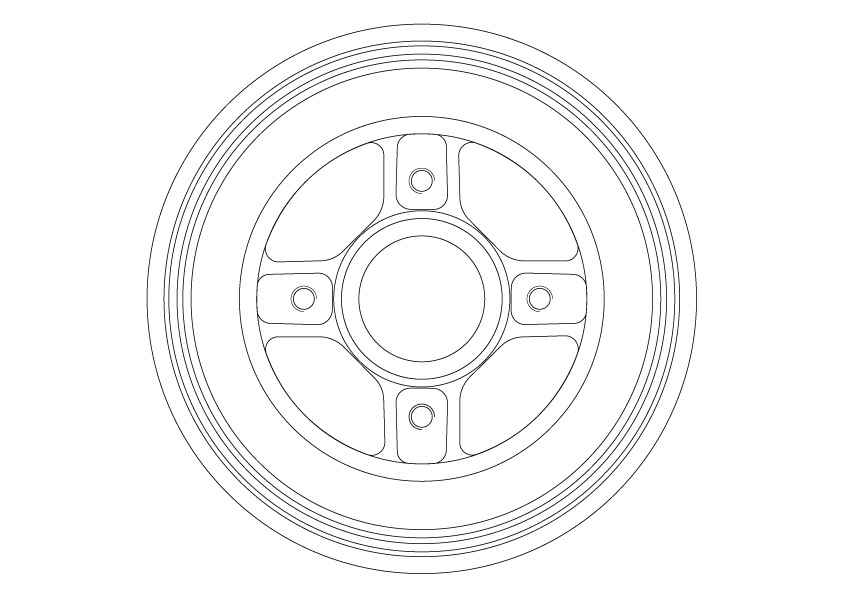

Specifications
| Bolt Hole Circle Ø (mm) | 100 |
| Centering Diameter (mm) | 52.2 |
| Inner brake drum diameter (mm) | 203 |
| Inner brake drum height (mm) | 50. max. brake drum reboring dimension [mm] 204.45 |
| Number of Holes 4 | |
| Outer brake drum diameter (mm) | 234 |
| Supplementary Article/Info 2 with ABS sensor ring | |
| Supplementary Article/Info 2 with bearing | |
| Supplementary Article/Info 2 with integrated wheel bearing | |
| Thread Size 1 M12x1,5 | |
| Total brake drum height (mm) | 77 |
Bolt Hole Circle Ø [mm] 100, Centering Diameter [mm] 52,2, Inner brake drum diameter [mm] 203, Inner brake drum height [mm] 50, max. brake drum reboring dimension [mm] 204,45, Number of Holes 4, Outer brake drum diameter [mm] 234, Supplementary Article/Info 2 with ABS sensor ring, Supplementary Article/Info 2 with bearing, Supplementary Article/Info 2 with integrated wheel bearing, Thread Size 1 M12x1,5, Total brake drum height [mm] 77
