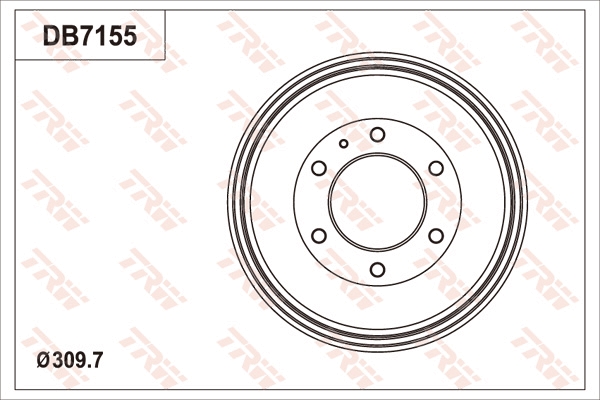

Specifications
| Bolt Hole Circle Ø (mm) | 139.7 |
| Centering Diameter (mm) | 96.7 |
| Drum diameter (mm) | 279.5 |
| Fitting Position Rear Axle | |
| Inner brake drum height (mm) | 68. max. brake drum reboring dimension [mm] 281.5 |
| Number of Holes 6 | |
| Outer brake drum diameter (mm) | 310 |
| Thread Size 12.8 | |
| Total brake drum height (mm) | 109 |
Bolt Hole Circle Ø [mm] 139,7, Centering Diameter [mm] 96,7, Drum diameter [mm] 279,5, Fitting Position Rear Axle, Inner brake drum height [mm] 68, max. brake drum reboring dimension [mm] 281,5, Number of Holes 6, Outer brake drum diameter [mm] 310, Thread Size 12.8, Total brake drum height [mm] 109
