TRW
Braking System

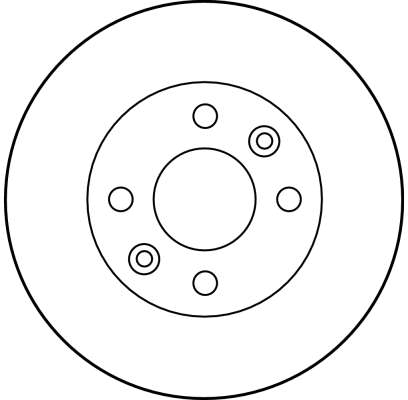

Brake Disc
Part No.
DF1009
·
SKU
DF1009-TRW
Price on request
Currently out of stock
Get notified when this part is back in stock:
Genuine & OEM parts
Nationwide delivery
Easy returns
Specifications
| Bolt Hole Circle Ø (mm) | 100 |
| Brake Disc Thickness (mm) | 20 |
| Brake Disc Type Vented |
| Centering Diameter (mm) | 60 |
| Height (mm) | 46 |
| Minimum thickness (mm) | 17.7 |
| Number of Holes 4 |
| Outer Diameter (mm) | 238 |
| Thread Size 13 |
Bolt Hole Circle Ø [mm] 100, Brake Disc Thickness [mm] 20, Brake Disc Type Vented, Centering Diameter [mm] 60, Height [mm] 46, Minimum thickness [mm] 17,7, Number of Holes 4, Outer Diameter [mm] 238, Thread Size 13
Interchangeable Part Numbers
A.B.S.15108
ABEXW0344
ATE24012001271
ATE420127
BENDIX333194
BENDIX561182B
BOSCH 0 986 478111
BOSCH0986478111
BOSCH986478111
BRADI1.4006.2.4
BREMBO09.4925.20
DBA AustraliaDBA346A
DELPHIBG206
DELPHIBG2206
DELPHIBS3244
FERODODDF170
FERODODDF1841
FIRST LINEFBD235
GRAFDF2867
JURID561182J
METELLI230067
PAGID52826
QUINTON HAZELLBDC3244
REMSA606910
SEBRO5808
TEXTAR98200025001
VALEO186034
VALEO186215
ZIMMERMANN4701076
OE Numbers — RENAULT 77 00 649
109
OE Numbers — RENAULT
7700649109
7701466543
OE Numbers — RENAULT 77 01 466
543
