Brake Disc

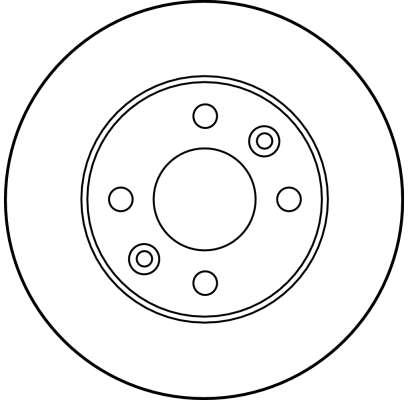

Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF1010 · SKU DF1010-TRW
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)100
Brake Disc Thickness (mm)12
Brake Disc Type solid
Centering Diameter (mm)60
Height (mm)46
Minimum thickness (mm)10.5
Number of Holes 4
Outer Diameter (mm)238
Thread Size 13
Bolt Hole Circle Ø [mm] 100, Brake Disc Thickness [mm] 12, Brake Disc Type solid, Centering Diameter [mm] 60, Height [mm] 46, Minimum thickness [mm] 10,5, Number of Holes 4, Outer Diameter [mm] 238, Thread Size 13

Interchangeable Part Numbers

A.B.S.15107 ABEXW0287 ACDelcoAC2024D APECDSK282 ATE24011201131 ATE412113 BENDIX333154 BENDIX561145B BENDIX561145BC BOSCH0 986 478 112 BOSCH986478112 BRADI1.4005.1.4 Brake ENGINEERINGDI842841 BREMBO08.4284.10 DELPHIBG194 DELPHIBG2194 FERODODDF107 FIRST LINEFBD234 FTEBS3245 GIRLING6010103 GRAFDF2866 JURID561145J LEMFÖRDER18145 LPRR1051P MAGNETI MARELLI353614005140 METELLI230066 MGAD866 MINTEXMDC202 NationalNBD114 PAGID52805 PILENGA5145 QH Benelux55309 QUINTON HAZELLBDC3245 QUINTON HAZELLBSF3245 REMSA607700 ROULUNDS RUBBERD2024 SEBRO5309 TEXTAR98200024901 TRUSTINGDF632 VALEO186026 VALEO186211 WOKINGP607700 ZIMMERMANN4701078

OE Numbers — RENAULT

77 00 649 850 77 01 466 542
