Brake Disc
Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF1014 · SKU DF1014-TRW
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

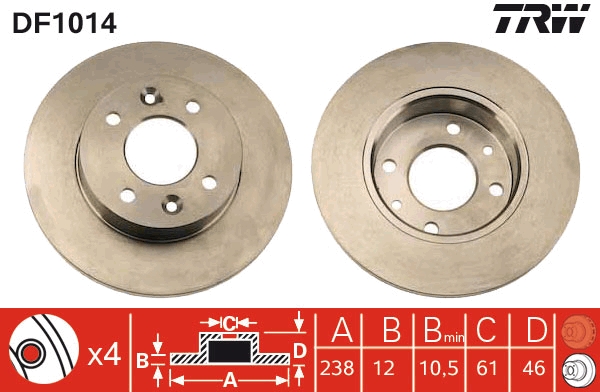

Specifications

Bolt Hole Circle Ø (mm)100
Brake Disc Thickness (mm)12
Brake Disc Type solid
Centering Diameter (mm)61
Height (mm)46
Minimum thickness (mm)10.5
Number of Holes 4
Outer Diameter (mm)238
Thread Size 12,6
Bolt Hole Circle Ø [mm] 100, Brake Disc Thickness [mm] 12, Brake Disc Type solid, Centering Diameter [mm] 61, Height [mm] 46, Minimum thickness [mm] 10,5, Number of Holes 4, Outer Diameter [mm] 238, Thread Size 12,6

Interchangeable Part Numbers

A.B.S.15831 ABEXW0376 ACDelcoAC2025D APECDSK281 ATE24011201461 BENDIX338655 BENDIX561335B BOSCH0 986 478 274 BOSCH986478274 BRADI1.4005.1.5 BREMBO08.4284.20 DELPHIBG2268 DELPHIBG268 DELPHIBS3549 FERODODDF108 FIRST LINEFBD391 GIRLING6010143 GRAFDF29114 JURID561335J LEMFÖRDER18150 LPRR1053P MAGNETI MARELLI353614005150 METELLI230114 MINTEXMDC757 NationalNBD244 PAGID52806 PILENGA5741 QH Benelux55387 QUINTON HAZELLBDC3549 QUINTON HAZELLBSF3549 REMSA607800 ROULUNDS RUBBERD2025 SEBRO5318 TEXTAR98200040301 VALEO186212 WOKINGP607800 ZIMMERMANN4702404

OE Numbers — RENAULT

77 00 754 286 77 01 466 781
