TRW
Braking System
Brake Disc
Part No.
DF1022
·
SKU
DF1022-TRW
Price on request
Currently out of stock
Get notified when this part is back in stock:
Genuine & OEM parts
Nationwide delivery
Easy returns

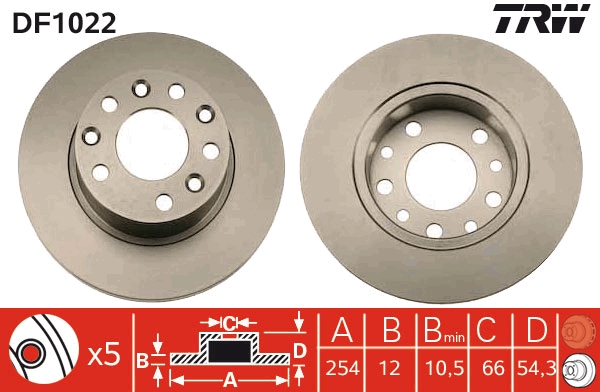

Specifications
| Bolt Hole Circle Ø (mm) | 108 |
| Brake Disc Thickness (mm) | 12 |
| Brake Disc Type solid |
| Centering Diameter (mm) | 66 |
| Height (mm) | 54.3 |
| Minimum thickness (mm) | 10.5 |
| Number of Holes 5 |
| Outer Diameter (mm) | 254 |
| Thread Size 14,6 |
Bolt Hole Circle Ø [mm] 108, Brake Disc Thickness [mm] 12, Brake Disc Type solid, Centering Diameter [mm] 66, Height [mm] 54,3, Minimum thickness [mm] 10,5, Number of Holes 5, Outer Diameter [mm] 254, Thread Size 14,6
Interchangeable Part Numbers
A.B.S.15118
ACDelcoAC2161D
APECDSK700
ATE24011201331
ATE412133
BENDIX338807
BENDIX561415B
BENDIX561660B
BOSCH0 986 478 289
BOSCH986478289
BRADI1.4016.5.5
BRADI1.4016.5.6
BREMBO08.5646.10
BREMBO08.5646.30
CAR142596
CAR142597
CARHPD596
CARHPD597
DELPHIBG2485
DELPHIBG2575
DELPHIBG2824
DELPHIBG575
DELPHIBG824
DELPHIBS3693
FERODODDF353
FERODODDF3531
FERODODDF557
FERODODDF5571
FIRST LINEFBD344
FIRST LINEFBD392
GIRLING6010224
HELLA8DD 355 101-581
JURID561415J
JURID561660J
LPRR1233P
MAGNETI MARELLI353614016560
METELLI230112
METELLI230358
MGAD1158
MINTEXMDC871
NationalNBD483
NK203923
NK313923
PAGID52813
PEX140480
PILENGA5748
QH Benelux55389
QUINTON HAZELLBDC3692
QUINTON HAZELLBDC3693
QUINTON HAZELLBSF3693
REMSA615900
ROULUNDS RUBBERD2161
TEXTAR92040400
TEXTAR98200040401
TEXTAR98200065401
TRISCAN812025117
TRUSTINGDF489
VALEO186223
WOKINGP615900
ZIMMERMANN4702401
ZIMMERMANN470240100
OE Numbers — RENAULT
77 00 715 165
77 00 751 165
77 00 793 631
77 01 467 307
