Brake Disc

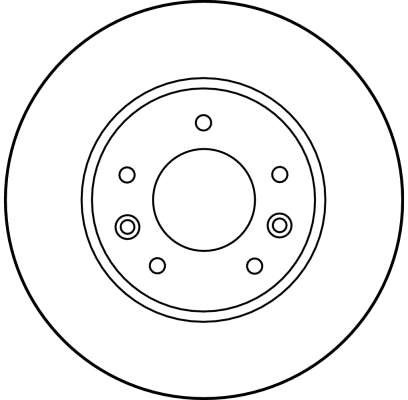

Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF1027 · SKU DF1027-TRW
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)108
Brake Disc Thickness (mm)10.5
Brake Disc Type solid
Centering Diameter (mm)66
Height (mm)30.5
Minimum thickness (mm)9.5
Number of Holes 5
Outer Diameter (mm)255
Thread Size 15
Bolt Hole Circle Ø [mm] 108, Brake Disc Thickness [mm] 10,5, Brake Disc Type solid, Centering Diameter [mm] 66, Height [mm] 30,5, Minimum thickness [mm] 9,5, Number of Holes 5, Outer Diameter [mm] 255, Thread Size 15

Interchangeable Part Numbers

A.B.S.16872 ABEXW0614 ACDelcoAC2193D ATE24011101431 BENDIX561661B BRADI1.4028.5.5 BREMBO08.5651.20 FERODODDF558 FERODODDF5581 FIRST LINEFBD536 GIRLING6010274 GRAFDF29286 HELLA8DD 355 105-281 JURID561661J LPRR1586P METELLI230286 MGAD1086 MINTEXMDC1149 NationalNBD480 PAGID52815 PEX140496 PILENGA5735 QUINTON HAZELL616600 QUINTON HAZELLBDC3755 QUINTON HAZELLBSF3755 ROULUNDS RUBBERD2193 TEXTAR92081400 TEXTAR98200081401 VALEO186596 WOKINGP616600

OE Numbers — RENAULT

77 00 204 290 77 00 778 126 77 01 204 290
