Brake Disc
Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF1100 · SKU DF1100-TRW
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

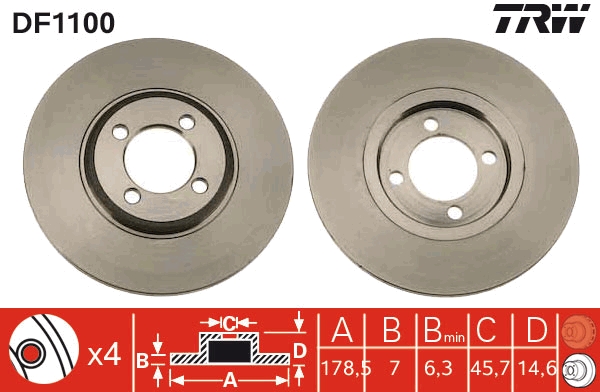

Specifications

Bolt Hole Circle Ø (mm)63
Brake Disc Thickness (mm)7
Brake Disc Type solid
Centering Diameter (mm)45.7
Height (mm)14.6
Minimum thickness (mm)6.3
Number of Holes 4
Outer Diameter (mm)178
Thread Size 9,5
Bolt Hole Circle Ø [mm] 63, Brake Disc Thickness [mm] 7, Brake Disc Type solid, Centering Diameter [mm] 45,7, Height [mm] 14,6, Minimum thickness [mm] 6,3, Number of Holes 4, Outer Diameter [mm] 178, Thread Size 9,5

Interchangeable Part Numbers

A.B.S.15406 ABEXW0178 APECDSK107 ATE24010701041 ATE407104 BENDIX333062 BENDIX561056B BENDIX561085B BOSCH 0 986 478231 BOSCH0986478231 BOSCH986478231 BRADI1.0904.5.4 Brake ENGINEERINGDI822982 BREMBO08.2298.20 CAR142131 CARHPD131 DELPHIBG2102 DELPHIBS3271 FERODODDF027 FERODODDF0271 FIRST LINEFBD154 GIRLING6011004 JURID561056J JURID561085J LEMFÖRDER16801 LPRC1024P METELLI230036 MGAD836 NationalNBD582 OBTEC A/S815272705 PAGID50602 PILENGA5175 QH Benelux53005 QUINTON HAZELLBDC3271 QUINTON HAZELLBSF3271 REMSA600000 TEXTAR98200014101 TRISCAN812038103 VALEO186129 VALEO186141 WOKINGP600000 ZIMMERMANN1802010

OE Numbers — CITROËN 5 448

826

OE Numbers — CITROËN

5448826 5420027 5420027M 75498348 95563153 AL9451923L GX2117001A

OE Numbers — CITROËN 95 563

153

OE Numbers — CITROËN AL 945 192

3L

OE Numbers — CITROËN GX 211 700

1A
