TRW
Braking System

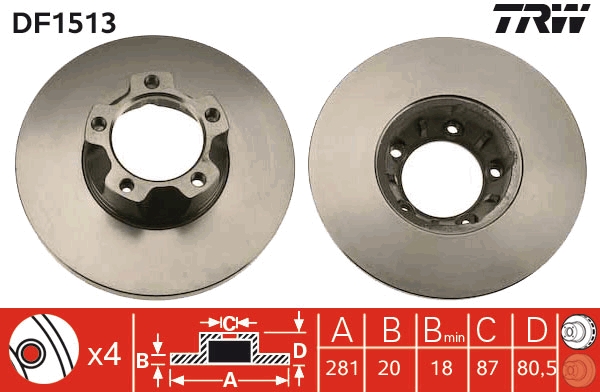

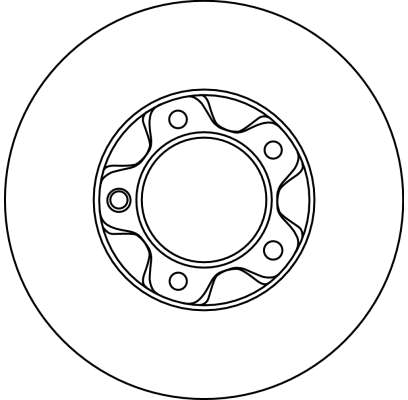

Brake Disc
Part No.
DF1513
·
SKU
DF1513-TRW
Price on request
Currently out of stock
Get notified when this part is back in stock:
Genuine & OEM parts
Nationwide delivery
Easy returns
Specifications
| Bolt Hole Circle Ø (mm) | 114.8 |
| Brake Disc Thickness (mm) | 20 |
| Brake Disc Type solid |
| Centering Diameter (mm) | 87 |
| Height (mm) | 80.5 |
| Minimum thickness (mm) | 18 |
| Number of Holes 4 |
| Outer Diameter (mm) | 281 |
| Test Mark E190R-02C0190/0592 |
| Thread Size M14 x 1,50 |
Bolt Hole Circle Ø [mm] 114,8, Brake Disc Thickness [mm] 20, Brake Disc Type solid, Centering Diameter [mm] 87, Height [mm] 80,5, Minimum thickness [mm] 18, Number of Holes 4, Outer Diameter [mm] 281, Test Mark E190R-02C0190/0592, Thread Size M14 x 1,50
Interchangeable Part Numbers
A.B.S.15773
ABEXW0245
APECDSK511
ATE24012001071
ATE420107
BENDIX333117
BENDIX561109B
BOSCH 0 986 478206
BOSCH0986478206
BOSCH986478206
BRADI1.5810.1.4
BREMBO08.3295.10
DELPHIBG162
DELPHIBG2162
DELPHIBS3938
FERODODDF076
FERODODDF0761
FIRST LINEFBD271
FTEBS4725
GIRLING6015133
HELLA 8DD 355100-221
HELLA8DD355100221
JURID561109J
LPRV2091P
MAGNETI MARELLI353615810150
MAPCO15776
MINTEXMDC166
NationalNBD690
NK204709
NK314709
PAGID53907
PEX140617
QH Benelux57120
QUINTON HAZELLBDC3132
QUINTON HAZELLBDC4725
QUINTON HAZELLBSF3132
QUINTON HAZELLBSF4725
SEBRO7120
TEXTAR92012600
TEXTAR98200012601
TRISCAN812029127
TRUSTINGDF758
VALEO186250
ZIMMERMANN6001157
OE Numbers — VW 281 615
283
301
OE Numbers — VW
281615283
281615301
