Brake Disc

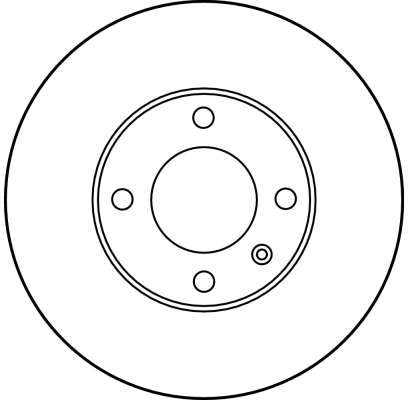

Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF1518 · SKU DF1518-TRW
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)100
Brake Disc Thickness (mm)10
Brake Disc Type solid
Centering Diameter (mm)65
Colour black
Height (mm)38.6
Minimum thickness (mm)8
Number of Holes 4
Outer Diameter (mm)239
Surface Painted
Thread Size 13,6
Bolt Hole Circle Ø [mm] 100, Brake Disc Thickness [mm] 10, Brake Disc Type solid, Centering Diameter [mm] 65, Colour black, Height [mm] 38,6, Minimum thickness [mm] 8, Number of Holes 4, Outer Diameter [mm] 239, Surface Painted, Thread Size 13,6
Fits: AUDI, SEAT, VW

Interchangeable Part Numbers

A.B.S.08.2631.34 A.B.S.15703 A.P.16400E ABEXW0220 ACDelcoAC2036D APECDSK137 ATE24011001511 ATE24031001511 ATE24111001511 ATE410151 BENDIX333094 BENDIX561087B BENDIX561087BC BLUE PRINTADV184386 BORG & BECKBBD4180 BOSCH 0 986 478010 BOSCH0986478010 BOSCH 0 986 479824 BOSCH0986479824 BOSCH 0 986 BB4363 BOSCH0986BB4363 BOSCH986478010 BOSCH F 026 A01091 BOSCHF026A01091 BRADI1.5804.1.4 Brake ENGINEERINGDI826313 BREMBO08.2631.30 CAR142705 CARHPD705 DBA AustraliaDBA242 DELPHIBG117 DELPHIBG2117 DELPHIBS1010 FEBI BILSTEIN02122 FERODODDF042 FERODODDF0421 FERODODDF042C FERODODDF042C1 FERODODRF042 FERODODRF042S FIRST LINEFBD116 FREMAXBD-3325 FTE9072157 FTE9082056 FTEBS1010B GIRLING6015183 GRAFDF2854 HELLA 8DD 355100-041 HELLA8DD355100041 HELLA 8DD 355100-051 HELLA8DD355100051 JURID561087J JURID561087JC LEMFÖRDER 1011603 LEMFÖRDER1011603 LPRA1011P MAGNETI MARELLI353615804140 MAGNETI MARELLI360704005100 MAGNETI MARELLI361302040197 MAGNETI MARELLI431602040660 MAPCO15768 METELLI230054 MEYLE 115 5211005 MEYLE1155211005 MEYLE1155211005PD MINTEXMDC247 MINTEXMDK0113 MINTEXMDK0178 NationalNBD008 NK204704 NK314704 OBTEC A/S421036 OBTEC A/S815421036 Omnicraft2143191 OPTIMALBS-0860C OPTIMALBS-0860 PAGID53901 PAGID53901PRO PEX140613 PEX140613N QH Benelux57115 QUINTON HAZELL817102 QUINTON HAZELL817103 QUINTON HAZELLBDC1010 QUINTON HAZELLBSF1010 REMSA608600 REMYRAD1252C ROULUNDS RUBBERD2036 SEBRO7115 ST-TEMPLIN0311010010 ST-TEMPLIN0311010015 SWAG30902122 TEXTAR92009300 TEXTAR92009303 TEXTAR98200009301 TRISCAN 812010137C TRISCAN812010137C TRISCAN812010137 TRUSTINGDF004 VAICOV10-40003 VALEO186017 VALEO186249 WOKINGP608600 ZIMMERMANN6001050 ZIMMERMANN600105000 ZIMMERMANN600105050

OE Numbers — AUDI 811 615 301

B

OE Numbers — AUDI

811615301B 811615301 823615301

OE Numbers — AUDI 811 615

301
MakeModelType / Engine YearsCCkWHP
AUDI 100 C1 Saloon (801, 803, 805, 807, 811, 813, F104) 1.8 1968 – 1976 1760 66 90
AUDI 100 C1 Saloon (801, 803, 805, 807, 811, 813, F104) 1.8 1968 – 1976 1760 74 100
AUDI 100 C1 Saloon (801, 803, 805, 807, 811, 813, F104) 1.8 1968 – 1976 1760 63 85
AUDI 100 C1 Saloon (801, 803, 805, 807, 811, 813, F104) 1.6 1968 – 1976 1588 63 85
AUDI 100 C1 Saloon (801, 803, 805, 807, 811, 813, F104) 1.9 1968 – 1976 1871 82 112
AUDI 100 C1 Saloon (801, 803, 805, 807, 811, 813, F104) 1.8 1968 – 1976 1760 59 80
AUDI 100 C1 Saloon (801, 803, 805, 807, 811, 813, F104) 1.8 1968 – 1976 1760 85 115
AUDI 100 C1 Saloon (801, 803, 805, 807, 811, 813, F104) 1.9 1968 – 1976 1871 71 97
AUDI 100 C1 Saloon (801, 803, 805, 807, 811, 813, F104) 1.9 1968 – 1976 1871 70 95
AUDI 100 C1 Saloon (801, 803, 805, 807, 811, 813, F104) 1.9 1968 – 1976 1871 68 92
AUDI 100 C1 Saloon (801, 803, 805, 807, 811, 813, F104) 1.8 1968 – 1976 1760 79 107
AUDI 80 B1 Saloon (80, 82) 1.6 1972 – 1978 1588 57 78
AUDI 80 B1 Saloon (80, 82) 1.6 1972 – 1978 1588 53 72
AUDI 80 B1 Saloon (80, 82) 1.5 1972 – 1978 1471 55 75
AUDI 80 B1 Saloon (80, 82) 1.6 GTE 1972 – 1978 1588 81 110
AUDI 80 B1 Saloon (80, 82) 1.6 GT 1972 – 1978 1584 74 100
AUDI 80 B1 Saloon (80, 82) 1.6 1972 – 1978 1588 63 85
AUDI 80 B1 Saloon (80, 82) 1.3 1972 – 1978 1297 44 60
AUDI 80 B1 Saloon (80, 82) 1.6 1972 – 1978 1588 61 83
AUDI 80 B1 Saloon (80, 82) 1.5 1972 – 1978 1471 57 77
AUDI 80 B1 Saloon (80, 82) 1.3 1972 – 1978 1297 40 55
AUDI 80 B1 Saloon (80, 82) 1.5 1972 – 1978 1471 63 85
AUDI 80 B1 Saloon (80, 82) 1.6 1972 – 1978 1588 55 75
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1595 54 73
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 quattro 1978 – 1987 2226 100 136
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 GLE 1978 – 1987 1588 81 110
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1588 63 85
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1588 61 83
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.7 1978 – 1987 1715 58 79
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 1978 – 1987 1780 76 103
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 1978 – 1987 2226 88 120
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1595 55 75
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.3 1978 – 1987 1272 44 60
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.3 1978 – 1987 1297 44 60
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.3 1978 – 1987 1272 40 55
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 1978 – 1987 2226 89 121
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.0 1978 – 1987 1994 81 110
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 GTE 1978 – 1987 1781 82 112
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.0 quattro (85Q) 1978 – 1987 1994 85 115
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 quattro (85Q) 1978 – 1987 2144 100 136
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 GTE quattro (85Q) 1978 – 1987 1781 81 110
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.9 CD-5S 1978 – 1987 1921 85 115
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 GTE 1978 – 1987 1781 81 110
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 CC quattro (85Q) 1978 – 1987 1781 66 90
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 TD 1978 – 1987 1588 51 70
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 D 1978 – 1987 1588 40 54
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 GTE quattro (85Q) 1978 – 1987 1781 82 112
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 1978 – 1987 1781 66 90
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 1978 – 1987 1781 65 88
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 1978 – 1987 2144 85 115
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.0 1978 – 1987 1994 85 115
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1588 51 70
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 quattro 1978 – 1987 2144 96 131
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1588 55 75
