TRW
Braking System

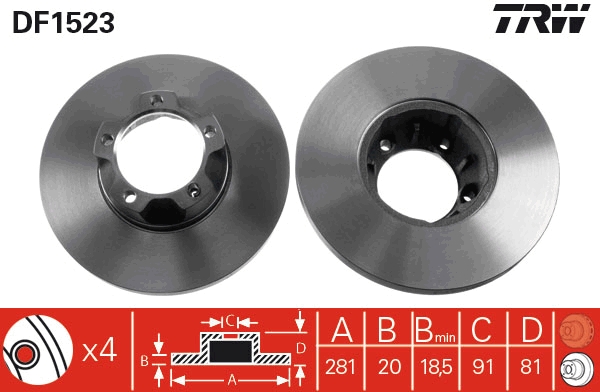

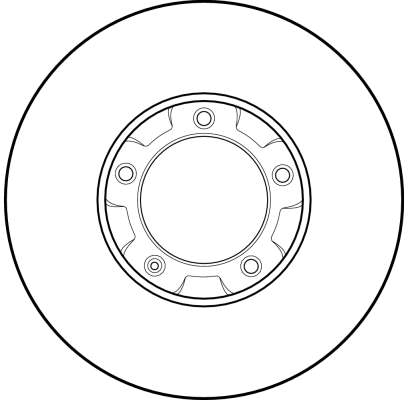

Brake Disc
Part No.
DF1523
·
SKU
DF1523-TRW
Price on request
Currently out of stock
Get notified when this part is back in stock:
Genuine & OEM parts
Nationwide delivery
Easy returns
Specifications
| Bolt Hole Circle Ø (mm) | 115 |
| Brake Disc Thickness (mm) | 19.9 |
| Brake Disc Type solid |
| Centering Diameter (mm) | 91 |
| Height (mm) | 80.4 |
| Minimum thickness (mm) | 18.5 |
| Number of Holes 5 |
| Outer Diameter (mm) | 281 |
| Thread Size M14 x 1,50 |
Bolt Hole Circle Ø [mm] 115, Brake Disc Thickness [mm] 19,9, Brake Disc Type solid, Centering Diameter [mm] 91, Height [mm] 80,4, Minimum thickness [mm] 18,5, Number of Holes 5, Outer Diameter [mm] 281, Thread Size M14 x 1,50
Interchangeable Part Numbers
A.B.S.15786
ABEXW0370
ACDelcoAC2248D
ATE24012001141
ATE24012001142
ATE420114
BENDIX333732
BENDIX561308B
BENDIX561308BC
BLUE PRINTADV184385
BOSCH 0 986 478138
BOSCH0986478138
BOSCH986478138
BRADI1.5810.1.5
BREMBO08.2982.10
DELPHIBG163
DELPHIBG2163
DELPHIBS3585
FEBI BILSTEIN11393
FERODODDF058
FERODODDF0581
FIRST LINEFBD272
GIRLING6015233
GRAFDF2929LL
HELLA 8DD 355100-901
HELLA8DD355100901
ICER78BD3017-1
JURID561252J
JURID561308J
LEMFÖRDER 1448602
LEMFÖRDER1448602
LPRV2101P
MAGNETI MARELLI353615810150
METELLI230291
METZGER14070
MGAD1091
MINTEXMDC750
NationalNBD149
NK204721
OBTEC A/S424204
PAGID53906
PEX140618
QH Benelux57128
QUINTON HAZELLBDC3585
QUINTON HAZELLBSF3585
REMSA654300
ROULUNDS RUBBERD2248
SEBRO7128
SWAG 30 911393
SWAG30911393
TEXTAR92031500
TEXTAR98200031501
TRISCAN812029128
TRUSTINGDF758
VALEO186250
WOKINGP654300
ZIMMERMANN6001593
ZIMMERMANN600159300
OE Numbers — VW 281 615 283
A
OE Numbers — VW
281615283A
