Brake Disc

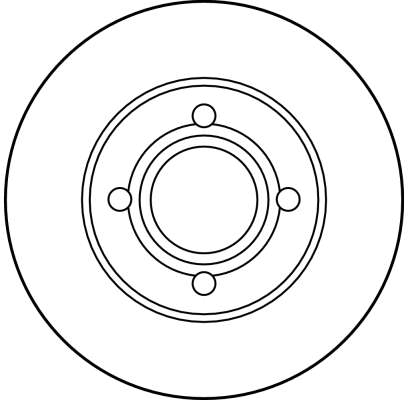

Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF1530 · SKU DF1530-TRW
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)108
Brake Disc Thickness (mm)22
Brake Disc Type Vented
Centering Diameter (mm)68
Colour black
Height (mm)46.5
Machining High-carbon
Minimum thickness (mm)20
Number of Holes 4
Outer Diameter (mm)256
Surface Painted
Test Mark E1 90R-02 C0176/0706
Thread Size 15,5
Bolt Hole Circle Ø [mm] 108, Brake Disc Thickness [mm] 22, Brake Disc Type Vented, Centering Diameter [mm] 68, Colour black, Height [mm] 46,5, Machining High-carbon, Minimum thickness [mm] 20, Number of Holes 4, Outer Diameter [mm] 256, Surface Painted, Test Mark E1 90R-02 C0176/0706, Thread Size 15,5
Fits: AUDI

Interchangeable Part Numbers

ABEXW0357 ACDelcoAC2039D APECDSK547 ATE24012201181 ATE24032201181 ATE24112201181 ATE422118 ATE522118 BENDIX333653 BENDIX561244B BENDIX561244BC BORG & BECKBBD4142 BOSCH 0 986 478018 BOSCH0986478018 BOSCH 0 986 AB6865 BOSCH0986AB6865 BOSCH986478018 BRADI1.0104.2.4 Brake ENGINEERINGDI950111 BREMBO09.5033.10 CAR142723 CARHPD723 DELPHIBG2272 DELPHIBG272 DELPHIBS3317 FEBI BILSTEIN08554 FERODODDF193 FERODODDF1931 FERODODRF193 FIRST LINEFBD110 GRAFDF2861 HELLA 8DD 355100-591 HELLA8DD355100591 JURID561244J JURID561244JC LEMFÖRDER 1008801 LEMFÖRDER1008801 LEMFÖRDER 1008803 LEMFÖRDER1008803 LPRA1091V MAGNETI MARELLI353610104240 MAGNETI MARELLI360204000140 MAGNETI MARELLI431602041270 MAPCO15707 METELLI230061 METZGER24204 MEYLE 115 5211003/PD MEYLE1155211003PD MEYLE 115 5211003 MEYLE1155211003 MGAD861 MINTEXMDC328 NationalNBD094 NK204719 NK314719 OBTEC A/S421030V OBTEC A/S815421030 OPTIMALBS-1850C OPTIMALBS-1850 PAGID53933 PEX140020 PILENGAV360 QH Benelux52360 QUINTON HAZELLBDC3317 QUINTON HAZELLBSF3317 REMSA618510 REMYRAD2003C ROULUNDS RUBBERD2039 SEBRO2368 ST-TEMPLIN0311010050 ST-TEMPLIN0311010055 SWAG32908554 TEXTAR92026000 TEXTAR98200026001 TRISCAN812029124 TRUSTINGDF245 TRUSTINGDF871 VAICOV10-80057 VALEO186112 VALEO297112 WOKINGP618510 ZIMMERMANN1001204 ZIMMERMANN100120400 ZIMMERMANN100120450

OE Numbers — AUDI 431 615 301

AV AX A

OE Numbers — AUDI

431615301AV 431615301AX 431615301A 443615301A 443615301B 443615301D

OE Numbers — AUDI 443 615 301

B D
MakeModelType / Engine YearsCCkWHP
AUDI 100 C2 Avant (435, 436) 1.6 1977 – 1983 1588 63 85
AUDI 100 C2 Avant (435, 436) 2.1 1977 – 1983 2144 85 115
AUDI 100 C2 Avant (435, 436) 2.1 1977 – 1983 2144 100 136
AUDI 100 C2 Avant (435, 436) 2.0 D 1977 – 1983 1986 51 70
AUDI 100 C2 Avant (435, 436) 1.9 1977 – 1983 1921 74 100
AUDI 100 C2 Avant (435, 436) 2.0 1977 – 1983 1984 85 115
AUDI 100 C2 Saloon (431, 433, 434) 1.6 1976 – 1984 1588 63 85
AUDI 100 C2 Saloon (431, 433, 434) 1.9 1976 – 1984 1921 74 100
AUDI 100 C2 Saloon (431, 433, 434) 2.0 1976 – 1984 1984 85 115
AUDI 100 C2 Saloon (431, 433, 434) 2.1 1976 – 1984 2144 85 115
AUDI 100 C2 Saloon (431, 433, 434) 2.1 1976 – 1984 2144 100 136
AUDI 100 C2 Saloon (431, 433, 434) 2.0 D 1976 – 1984 1986 51 70
AUDI 100 C2 Saloon (431, 433, 434) 2.2 1976 – 1984 2144 79 107
AUDI 100 C2 Saloon (431, 433, 434) 2.2 1976 – 1984 2144 75 102
AUDI 100 C2 Saloon (431, 433, 434) 1.9 1976 – 1984 1871 70 95
AUDI 100 C3 Avant (445, 446) 2.2 1982 – 1990 2226 82 112
AUDI 100 C3 Avant (445, 446) 2.1 1982 – 1990 2144 96 131
AUDI 100 C3 Avant (445, 446) 2.3 1982 – 1990 2309 97 132
AUDI 100 C3 Avant (445, 446) 2.2 quattro 1982 – 1990 2226 117 159
AUDI 100 C3 Avant (445, 446) 2.2 1982 – 1990 2144 79 107
AUDI 100 C3 Avant (445, 446) 1.8 Cat 1982 – 1990 1781 66 90
AUDI 100 C3 Avant (445, 446) 2.2 Cat quattro 1982 – 1990 2226 101 137
AUDI 100 C3 Avant (445, 446) 2.2 Cat 1982 – 1990 2226 101 137
AUDI 100 C3 Avant (445, 446) 2.0 E 1982 – 1990 1994 85 115
AUDI 100 C3 Avant (445, 446) 1.8 quattro 1982 – 1990 1781 66 90
AUDI 100 C3 Avant (445, 446) 1.8 Cat quattro 1982 – 1990 1781 66 90
AUDI 100 C3 Avant (445, 446) 1.8 quattro 1982 – 1990 1781 65 88
AUDI 100 C3 Avant (445, 446) 1.9 1982 – 1990 1921 74 100
AUDI 100 C3 Avant (445, 446) 2.2 quattro 1982 – 1990 2226 118 160
AUDI 100 C3 Avant (445, 446) 1.8 1982 – 1990 1781 55 75
AUDI 100 C3 Avant (445, 446) 1.8 1982 – 1990 1781 65 88
AUDI 100 C3 Avant (445, 446) 1.8 1982 – 1990 1781 66 90
AUDI 100 C3 Avant (445, 446) 2.0 1982 – 1990 1994 83 113
AUDI 100 C3 Avant (445, 446) 2.0 E Cat 1982 – 1990 1994 85 115
AUDI 100 C3 Avant (445, 446) 2.1 1982 – 1990 2144 100 136
AUDI 100 C3 Avant (445, 446) 2.2 1982 – 1990 2226 85 115
AUDI 100 C3 Avant (445, 446) 2.2 1982 – 1990 2226 101 137
AUDI 100 C3 Avant (445, 446) 2.2 Turbo 1982 – 1990 2226 121 165
AUDI 100 C3 Avant (445, 446) 2.3 1982 – 1990 2309 100 136
AUDI 100 C3 Avant (445, 446) 2.0 D 1982 – 1990 1986 51 70
AUDI 100 C3 Avant (445, 446) 2.0 TD 1982 – 1990 1986 64 87
AUDI 100 C3 Avant (445, 446) 2.0 TD 1982 – 1990 1986 74 100
AUDI 100 C3 Avant (445, 446) 2.5 TDI 1982 – 1990 2461 88 120
AUDI 100 C3 Avant (445, 446) 2.3 1982 – 1990 2309 98 133
AUDI 100 C3 Avant (445, 446) 2.2 quattro 1982 – 1990 2226 101 137
AUDI 100 C3 Avant (445, 446) 2.2 Turbo quattro 1982 – 1990 2226 121 165
AUDI 100 C3 Avant (445, 446) 2.3 E quattro 1982 – 1990 2309 100 136
AUDI 100 C3 Avant (445, 446) 2.3 quattro 1982 – 1990 2309 98 133
AUDI 100 C3 Avant (445, 446) 2.2 E quattro 1982 – 1990 2226 88 120
AUDI 100 C3 Avant (445, 446) 2.4 D 1982 – 1990 2370 60 82
AUDI 100 C3 Saloon (443, 444) 1.8 1982 – 1991 1781 65 88
AUDI 100 C3 Saloon (443, 444) 1.8 Cat 1982 – 1991 1781 66 90
AUDI 100 C3 Saloon (443, 444) 1.9 1982 – 1991 1921 74 100
AUDI 100 C3 Saloon (443, 444) 2.0 1982 – 1991 1994 83 113
AUDI 100 C3 Saloon (443, 444) 2.0 Cat 1982 – 1991 1994 85 115
AUDI 100 C3 Saloon (443, 444) 2.1 1982 – 1991 2144 100 136
AUDI 100 C3 Saloon (443, 444) 2.2 1982 – 1991 2226 85 115
AUDI 100 C3 Saloon (443, 444) 2.2 1982 – 1991 2226 101 137
AUDI 100 C3 Saloon (443, 444) 2.2 Turbo 1982 – 1991 2226 121 165
AUDI 100 C3 Saloon (443, 444) 2.3 E 1982 – 1991 2309 100 136
AUDI 100 C3 Saloon (443, 444) 2.0 D 1982 – 1991 1986 51 70
AUDI 100 C3 Saloon (443, 444) 2.0 D Turbo 1982 – 1991 1986 64 87
AUDI 100 C3 Saloon (443, 444) 2.0 D Turbo 1982 – 1991 1986 74 100
AUDI 100 C3 Saloon (443, 444) 2.5 TDI 1982 – 1991 2461 88 120
AUDI 100 C3 Saloon (443, 444) 2.3 E 1982 – 1991 2309 98 133
AUDI 100 C3 Saloon (443, 444) 1.8 quattro 1982 – 1991 1781 65 88
AUDI 100 C3 Saloon (443, 444) 1.8 Cat quattro 1982 – 1991 1781 66 90
AUDI 100 C3 Saloon (443, 444) 2.2 quattro 1982 – 1991 2226 101 137
AUDI 100 C3 Saloon (443, 444) 2.2 E Turbo quattro 1982 – 1991 2226 121 165
AUDI 100 C3 Saloon (443, 444) 2.3 E quattro 1982 – 1991 2309 100 136
AUDI 100 C3 Saloon (443, 444) 2.3 quattro 1982 – 1991 2309 98 133
AUDI 100 C3 Saloon (443, 444) 1.8 1982 – 1991 1781 55 75
AUDI 100 C3 Saloon (443, 444) 2.4 D 1982 – 1991 2370 60 82
AUDI 100 C3 Saloon (443, 444) 2.2 E quattro 1982 – 1991 2226 88 120
AUDI 100 C3 Saloon (443, 444) 2.2 1982 – 1991 2226 118 160
AUDI 100 C3 Saloon (443, 444) 2.2 quattro 1982 – 1991 2226 117 159
AUDI 100 C3 Saloon (443, 444) 2.2 1982 – 1991 2226 117 159
AUDI 100 C3 Saloon (443, 444) 2.2 quattro 1982 – 1991 2226 118 160
AUDI 100 C3 Saloon (443, 444) 2.1 1982 – 1991 2144 75 102
AUDI 100 C3 Saloon (443, 444) 2.2 1982 – 1991 2144 96 130
AUDI 100 C3 Saloon (443, 444) 2.3 1982 – 1991 2309 97 132
AUDI 100 C3 Saloon (443, 444) 2.2 1982 – 1991 2144 79 107
AUDI 100 C3 Saloon (443, 444) 2.3 quattro 1982 – 1991 2309 97 132
AUDI 100 C3 Saloon (443, 444) 2.2 quattro 1982 – 1991 2144 118 160
AUDI 100 C3 Saloon (443, 444) 2.0 D 1982 – 1991 1986 66 90
AUDI 100 C3 Saloon (443, 444) 2.2 Cat 1982 – 1991 2226 101 137
AUDI 100 C3 Saloon (443, 444) 2.2 Cat quattro 1982 – 1991 2226 101 137
AUDI 100 C3 Saloon (443, 444) 2.0 1982 – 1991 1994 85 115
AUDI 100 C3 Saloon (443, 444) 1.8 quattro 1982 – 1991 1781 66 90
AUDI 100 C3 Saloon (443, 444) 1.8 1982 – 1991 1781 66 90
AUDI 80 B3 Saloon (893, 894, 8A2) 1.9 1986 – 1991 1847 83 113
AUDI 80 B3 Saloon (893, 894, 8A2) 1.9 quattro 1986 – 1991 1847 83 113
AUDI 80 B3 Saloon (893, 894, 8A2) 2.0 E 1986 – 1991 1984 85 115
AUDI 80 B3 Saloon (893, 894, 8A2) 2.3 quattro 1986 – 1991 2309 98 133
AUDI 80 B3 Saloon (893, 894, 8A2) 2.3 1986 – 1991 2309 97 132
AUDI 80 B3 Saloon (893, 894, 8A2) 1.6 1986 – 1991 1595 75 102
AUDI 80 B3 Saloon (893, 894, 8A2) 1.4 1986 – 1991 1400 48 65
AUDI 80 B3 Saloon (893, 894, 8A2) 1.6 1986 – 1991 1595 55 75
AUDI 80 B3 Saloon (893, 894, 8A2) 1.8 1986 – 1991 1781 55 75
AUDI 80 B3 Saloon (893, 894, 8A2) 1.8 S 1986 – 1991 1781 65 88
AUDI 80 B3 Saloon (893, 894, 8A2) 1.8 S 1986 – 1991 1781 66 90
AUDI 80 B3 Saloon (893, 894, 8A2) 1.8 E 1986 – 1991 1781 82 112
AUDI 80 B3 Saloon (893, 894, 8A2) 1.8 1986 – 1991 1847 83 113
AUDI 80 B3 Saloon (893, 894, 8A2) 2.0 E 1986 – 1991 1984 83 113
AUDI 80 B3 Saloon (893, 894, 8A2) 1.6 D 1986 – 1991 1588 40 54
AUDI 80 B3 Saloon (893, 894, 8A2) 1.6 TD 1986 – 1991 1588 59 80
AUDI 80 B3 Saloon (893, 894, 8A2) 1.9 D 1986 – 1991 1896 50 68
AUDI 80 B3 Saloon (893, 894, 8A2) 1.6 1986 – 1991 1595 51 70
AUDI 80 B3 Saloon (893, 894, 8A2) 2.0 E 16V 1986 – 1991 1984 101 137
AUDI 80 B3 Saloon (893, 894, 8A2) 1.8 S quattro 1986 – 1991 1781 65 88
AUDI 80 B3 Saloon (893, 894, 8A2) 1.8 S quattro 1986 – 1991 1781 66 90
AUDI 80 B3 Saloon (893, 894, 8A2) 1.8 quattro 1986 – 1991 1847 83 113
AUDI 80 B3 Saloon (893, 894, 8A2) 2.0 E quattro 1986 – 1991 1984 83 113
AUDI 80 B3 Saloon (893, 894, 8A2) 2.0 quattro 1986 – 1991 1984 85 115
AUDI 80 B3 Saloon (893, 894, 8A2) 2.0 E 16V quattro 1986 – 1991 1984 101 137
AUDI 80 B3 Saloon (893, 894, 8A2) 2.0 E 1986 – 1991 1984 82 112
AUDI 80 B3 Saloon (893, 894, 8A2) 1.8 E quattro 1986 – 1991 1781 82 112
AUDI 80 B4 Saloon (8C2) 1.9 TD 1991 – 1995 1896 55 75
AUDI 80 B4 Saloon (8C2) 1.9 TDI 1991 – 1995 1896 66 90
AUDI 80 B4 Saloon (8C2) 1.6 1991 – 1995 1595 52 71
AUDI 80 B4 Saloon (8C2) 1.6 E 1991 – 1995 1595 74 101
AUDI 80 B4 Saloon (8C2) 2.0 1991 – 1995 1984 66 90
AUDI 80 B4 Saloon (8C2) 2.0 E 1991 – 1995 1984 85 115
AUDI 80 B4 Saloon (8C2) 2.0 E 16V 1991 – 1995 1984 103 140
AUDI 80 B4 Saloon (8C2) 2.3 E 1991 – 1995 2309 98 133
AUDI 80 B4 Saloon (8C2) 2.6 1991 – 1995 2598 110 150
AUDI 80 B4 Saloon (8C2) 2.8 1991 – 1995 2771 128 174
AUDI 80 B4 Saloon (8C2) 2.0 E 16V quattro 1991 – 1995 1984 103 140
AUDI 80 B4 Saloon (8C2) 2.0 E quattro 1991 – 1995 1984 85 115
AUDI 80 B4 Saloon (8C2) S2 quattro 1991 – 1995 2226 169 230
AUDI 80 B4 Saloon (8C2) 2.3 E quattro 1991 – 1995 2309 98 133
AUDI 80 B4 Saloon (8C2) 2.6 quattro 1991 – 1995 2598 110 150
AUDI 80 B4 Saloon (8C2) 2.8 quattro 1991 – 1995 2771 128 174
AUDI 80 B4 Saloon (8C2) 2.0 quattro 1991 – 1995 1984 79 107
AUDI 80 B4 Saloon (8C2) 2.0 E 16V 1991 – 1995 1984 101 137
AUDI 90 B3 (893, 894, 8A2) 2.0 20 V quattro 1987 – 1991 1994 118 160
AUDI 90 B3 (893, 894, 8A2) 2.3 E 20V 1987 – 1991 2309 125 170
AUDI 90 B3 (893, 894, 8A2) 1.8 E 1987 – 1991 1781 82 111
AUDI 90 B3 (893, 894, 8A2) 2.0 E 1987 – 1991 1984 83 113
AUDI 90 B3 (893, 894, 8A2) 1.6 TD 1987 – 1991 1588 59 80
AUDI 90 B3 (893, 894, 8A2) 2.0 20 V 1987 – 1991 1994 118 160
AUDI 90 B3 (893, 894, 8A2) 2.2 E quattro 1987 – 1991 2226 100 136
AUDI 90 B3 (893, 894, 8A2) 2.0 quattro 1987 – 1991 1984 101 137
AUDI 90 B3 (893, 894, 8A2) 2.0 1987 – 1991 1983 80 109
AUDI 90 B3 (893, 894, 8A2) 2.0 1987 – 1991 1994 85 115
AUDI 90 B3 (893, 894, 8A2) 2.3 E 1987 – 1991 2309 100 136
AUDI 90 B3 (893, 894, 8A2) 2.3 E 1987 – 1991 2309 98 133
AUDI 90 B3 (893, 894, 8A2) 2.3 E 20V 1987 – 1991 2309 123 167
AUDI 90 B3 (893, 894, 8A2) 2.3 E quattro 1987 – 1991 2309 100 136
AUDI 90 B3 (893, 894, 8A2) 2.3 E 20V quattro 1987 – 1991 2309 125 170
AUDI 90 B3 (893, 894, 8A2) 2.3 E quattro 1987 – 1991 2309 98 133
AUDI 90 B3 (893, 894, 8A2) 2.3 E 20V quattro 1987 – 1991 2309 123 167
AUDI 90 B3 (893, 894, 8A2) 2.2 E 1987 – 1991 2226 100 136
AUDI QUATTRO (85) 2.1 Turbo 1980 – 1991 2144 147 200
AUDI QUATTRO (85) 2.1 20V Turbo 1980 – 1991 2144 225 306
AUDI QUATTRO (85) 2.1 Turbo quattro 1980 – 1991 2144 119 162
AUDI QUATTRO (85) 2.2 20V Turbo 1980 – 1991 2226 162 220
AUDI QUATTRO (85) 2.2 Turbo 1980 – 1991 2226 147 200
