Brake Disc

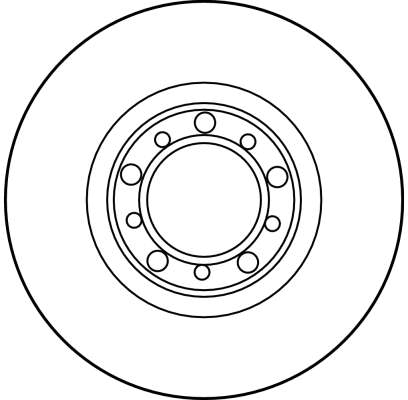

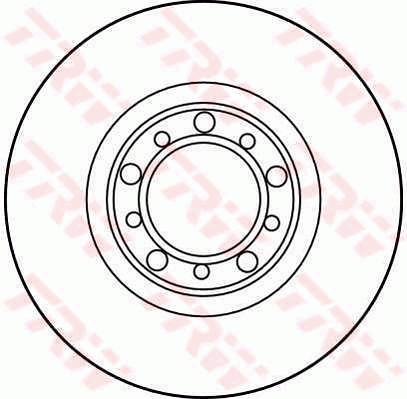

Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF1545 · SKU DF1545-TRW
Front Axle
₱15,600.00
In stock — available to order
Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)112
Brake Disc Thickness (mm)22
Brake Disc Type Vented
Centering Diameter (mm)80
Height (mm)60
Minimum thickness (mm)19.4
Number of Holes 5
Outer Diameter (mm)286
Thread Size 15
Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 22, Brake Disc Type Vented, Centering Diameter [mm] 80, Height [mm] 60, Minimum thickness [mm] 19,4, Number of Holes 5, Outer Diameter [mm] 286, Thread Size 15
Fits: MERCEDES-BENZ

Supplier Cross-References

DELPHIBG2609 TEXTAR92028700 FERODODDF476 JURID561284J BREMBO9562610 TRWDF1545

Interchangeable Part Numbers

A.B.S.15781 A.P.24390 ABEXW0713 ATE24012201251 ATE24032201251 ATE422125 ATE522125 BENDIX561284B BOSCH0 986 478 067 BOSCH0 986 478 184 BOSCH986478067 BOSCH986478184 BRADI1.2810.2.4 BREMBO09.5626.10 DELPHIBG609 DELPHIBS3532 FEBI BILSTEIN10680 FERODODDF4761 FIRST LINEFBD201 HELLA8DD 355 100-791 LEMFÖRDER11062 02 MEYLE015 520 2004 NK203323 OBTEC A/S232333V OPTIMALBS-7818C OPTIMALBS-7818 PAGID52121 PEX140310 QUINTON HAZELLBDC3532 sbs1815203323 SWAG10 91 0680 TEXTAR98200028701 TRISCAN812023155 TRUSTINGDF469 ZIMMERMANN4001403

OE Numbers — MERCEDES-BENZ

126 420 02 72 A1264200272
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ S-CLASS Coupe (C126) 380 SEC (126.043) 1980 – 1991 3839 150 204
MERCEDES-BENZ S-CLASS Coupe (C126) 380 SEC (126.043) 1980 – 1991 3839 145 197
MERCEDES-BENZ S-CLASS Coupe (C126) 420 SEC (126.046) 1980 – 1991 4196 170 231
MERCEDES-BENZ S-CLASS Coupe (C126) 500 SEC (126.044) 1980 – 1991 4973 177 241
MERCEDES-BENZ S-CLASS Coupe (C126) 500 SEC (126.044) 1980 – 1991 4973 137 186
MERCEDES-BENZ S-CLASS Coupe (C126) 380 SEC 1980 – 1991 3839 116 158
MERCEDES-BENZ S-CLASS Coupe (C126) 500 SEC (126.044) 1980 – 1991 4973 195 265
MERCEDES-BENZ S-CLASS Coupe (C126) 500 SEC Cat 1980 – 1991 4973 185 252
MERCEDES-BENZ S-CLASS Coupe (C126) 560 SEC (126.045) 1980 – 1991 5547 220 300
MERCEDES-BENZ S-CLASS Coupe (C126) 560 SEC (126.045) 1980 – 1991 5547 205 279
MERCEDES-BENZ S-CLASS Coupe (C126) 560 SEC (126.045) 1980 – 1991 5547 178 242
MERCEDES-BENZ S-CLASS Coupe (C126) 500 SEC (126.044) 1980 – 1991 4973 185 252
MERCEDES-BENZ S-CLASS Coupe (C126) 500 SEC (126.044) 1980 – 1991 4973 180 245
MERCEDES-BENZ S-CLASS Coupe (C126) 560 SEC (126.045) 1980 – 1991 5547 200 272
MERCEDES-BENZ S-CLASS Coupe (C126) 420 SEC (126.046) 1980 – 1991 4196 150 204
MERCEDES-BENZ S-CLASS Coupe (C126) 420 SEC (126.046) 1980 – 1991 4196 160 218
MERCEDES-BENZ S-CLASS Coupe (C126) 420 SEC (126.046) 1980 – 1991 4196 165 224
MERCEDES-BENZ S-CLASS Coupe (C126) 500 SEC (126.044) 1980 – 1991 4973 170 231
MERCEDES-BENZ S-CLASS Coupe (C126) 500 SEC (126.044) 1980 – 1991 4973 164 223
MERCEDES-BENZ SL Coupe (C107) 450 SLC (107.024) 1972 – 1985 4520 160 218
MERCEDES-BENZ SL Coupe (C107) 450 SL 1972 – 1985 4520 134 182
MERCEDES-BENZ SL Coupe (C107) 450 SLC (107.024) 1972 – 1985 4520 119 162
MERCEDES-BENZ SL Coupe (C107) 380 SLC 1972 – 1985 3839 116 158
MERCEDES-BENZ SL Coupe (C107) 450 SLC 5.0 (107.026) 1972 – 1985 4973 177 241
MERCEDES-BENZ SL Coupe (C107) 450 SLC (107.024) 1972 – 1985 4520 165 225
MERCEDES-BENZ SL Coupe (C107) 380 SLC (107.025) 1972 – 1985 3818 160 218
MERCEDES-BENZ SL Coupe (C107) 350 SLC (107.023) 1972 – 1985 3499 147 200
MERCEDES-BENZ SL Coupe (C107) 350 SLC (107.023) 1972 – 1985 3499 143 195
MERCEDES-BENZ SL Coupe (C107) 280 SLC (107.022) 1972 – 1985 2746 136 185
MERCEDES-BENZ SL Coupe (C107) 280 SLC (107.022) 1972 – 1985 2746 130 177
