TRW
Braking System

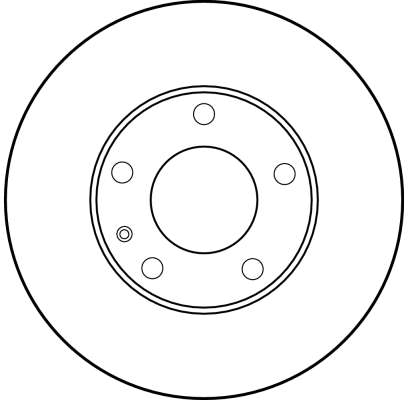

Brake Disc
Part No.
DF1556
·
SKU
DF1556-TRW
Front Axle
Price on request
Currently out of stock
Get notified when this part is back in stock:
Genuine & OEM parts
Nationwide delivery
Easy returns
Specifications
| Bolt Hole Circle Ø (mm) | 120 |
| Brake Disc Thickness (mm) | 12.6 |
| Brake Disc Type solid |
| Centering Diameter (mm) | 74 |
| Height (mm) | 78 |
| Minimum thickness (mm) | 11.1 |
| Number of Holes 5 |
| Outer Diameter (mm) | 280 |
| Thread Size 14,6 |
Bolt Hole Circle Ø [mm] 120, Brake Disc Thickness [mm] 12,6, Brake Disc Type solid, Centering Diameter [mm] 74, Height [mm] 78, Minimum thickness [mm] 11,1, Number of Holes 5, Outer Diameter [mm] 280, Thread Size 14,6
Fits: BMW
Interchangeable Part Numbers
A.B.S.15723
ABEXW0261
ATE24011301391
ATE413139
BENDIX333131
BENDIX561122B
BOSCH0 986 478 038
BOSCH986478038
BRADI1.0607.1.4
BREMBO08.3712.10
DELPHIBG183
DELPHIBG2183
DELPHIBS3290
FERODODDF085
FIRST LINEFBD137
GIRLING6015563
GRAFDF2870
JURID561122J
LEMFÖRDER13312 01
LEMFÖRDER13312 02
LPRB2071P
METELLI230070
MGAD870
NK201511
NK311511
OBTEC A/S131353
PAGID50405
PEX140083
PILENGA5117
QUINTON HAZELL628800
QUINTON HAZELLBDC3290
SEBRO2478
TEXTAR98200012201
TRISCAN812011107
WOKINGP628800
ZIMMERMANN1501134
ZIMMERMANN150113400
OE Numbers — BMW
1 116 947
1 152 295
1 156 124
1 156 128
1 163 144
34 11 1 116 947
34 11 1 152 295
34 11 1 156 124
34 11 1 156 128
34 11 1 163 144
| Make | Model | Type / Engine |
Years | CC | kW | HP |
| BMW |
5 (E12) |
518 |
1972 – 1981 |
1766 |
66 |
90 |
| BMW |
5 (E12) |
520 |
1972 – 1981 |
1990 |
85 |
115 |
| BMW |
5 (E12) |
520/6 |
1972 – 1981 |
1990 |
90 |
122 |
| BMW |
5 (E12) |
525 |
1972 – 1981 |
2494 |
107 |
145 |
| BMW |
5 (E12) |
525 |
1972 – 1981 |
2494 |
110 |
150 |
| BMW |
5 (E12) |
528 |
1972 – 1981 |
2788 |
121 |
165 |
| BMW |
5 (E12) |
528 |
1972 – 1981 |
2788 |
125 |
170 |
| BMW |
5 (E12) |
528 i |
1972 – 1981 |
2788 |
130 |
177 |
| BMW |
5 (E12) |
528 i |
1972 – 1981 |
2788 |
135 |
184 |
| BMW |
5 (E12) |
520 i |
1972 – 1981 |
1990 |
96 |
131 |
| BMW |
5 (E12) |
520 i |
1972 – 1981 |
1990 |
92 |
125 |
| BMW |
5 (E12) |
M535 i |
1972 – 1981 |
3453 |
160 |
218 |
| BMW |
5 (E12) |
518 i |
1972 – 1981 |
1766 |
75 |
102 |
| BMW |
5 (E12) |
530 i |
1972 – 1981 |
2986 |
131 |
178 |
| BMW |
5 (E12) |
528i |
1972 – 1981 |
2788 |
126 |
171 |
| BMW |
5 (E12) |
520 i/6 |
1972 – 1981 |
1990 |
90 |
122 |
